TE Connectivity 9-520272-2

B010IJ8LPI

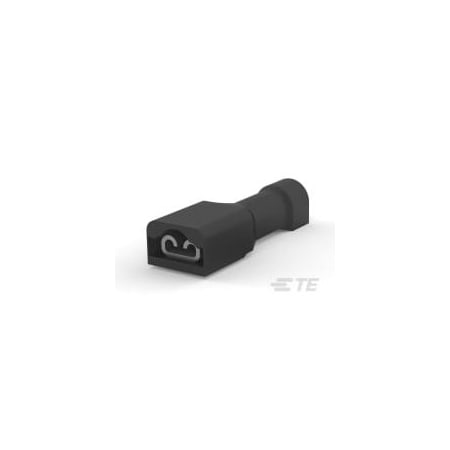

TE Connectivity Part Number 9-520272-2

TE Connectivity Part Number 9-520272-2zoom

Attributes

Key Value
Alternate Part No.571-9-520272-2
Barrel TypeClosed
Base Product Number520272
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
ColorBlack
Contact Base MaterialBrass
Contact FinishTin
Contact MaterialBrass
Contact PlatingTin
Country of Origin (subj.United States
Crimp TypeF-Crimp
DescriptionCONN QC RCPT 18-22AWG 0.
Detailed Description0.110" (2.79mm), 0.125".
Digi-Key Part NumberA105501TR-ND - Tape & R.
Features-
Fully InsulatedYes
GenderFemale
Insertion ForceNormal
InsulatedYes
InsulationFully Insulated, Insula.
Insulation Diameter0.120" (3.05mm)
Insulation MaterialNylon
Length - Overall0.735" (18.67mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.9-520272-2
Manufacturer Product Nu.9-520272-2
Manufacturer Standard L.8 Weeks
MaterialBrass
Mating Tab Thickness.81?mm?[?.032?in?]
Mating Tab Width2.8, 3.18, .11, .125
MfrTE Connectivity AMP Con.
Mounting AngleStraight
Mounting MethodWire
Mounting TypeFree Hanging (In-Line)
Operating Temperature R.-40 ? 110??C?[?-40 ? 23.
PackageTape & Reel (TR)
Packaging MethodStrip/Reel
Plating MaterialTin
ProductFaston Terminals
Product CategoryTerminals
Product StatusActive
Receptacle Terminal Sto..41?mm?[?.016?in?]
SealableNo
Series110, Ultra-Fast
Tab Length-
Tab Thickness0.032" (0.81mm)
Tab Width0.110" (2.79mm), 0.125".
TerminalReceptacle
Terminal OrientationStraight
Terminal TypeStandard
Terminates ToWire & Cable
TerminationCrimp
Termination StyleCrimp
Wire Gauge18-22 AWG, 22-18
Wire Insulation SupportWith
Wire Size22 ? 18, .32 ? .82

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Power and Signal Group9-520272-20.13483000741TE Connectivity0.1348 @ 3000
Onlinecomponents.com9-520272-20.146110500TE Connectivity / AMP Brand0.146 @ 1
us.rs-online.com719984720.1753212000570TE Connectivity0.17532 @ 12000
thumbzoomNewark45AC62000.19219193AMP - TE CONNECTIVITY0.192 @ 1
thumbzoomZoroG1009673090.216000570Te Connectivity0.21 @ 6000
thumbzoomswatee.com9-520272-20.29617139TE Connectivity0.296 @ 1
HotendaH16463780.319685TE Connectivity AMP Connectors0.3 @ 1
TE Connectivity9-520272-20.36813459TE Connectivity (TE)0.368 @ 1
thumbzoomDigi-Key2905400.4219258TE Connectivity AMP Connectors0.42 @ 1
AmazonTPB010IJ8LPI6.6715702TE Connectivity6.67 @ 1
