Ultradex E16R SDXCR3

B018KKNDJ6

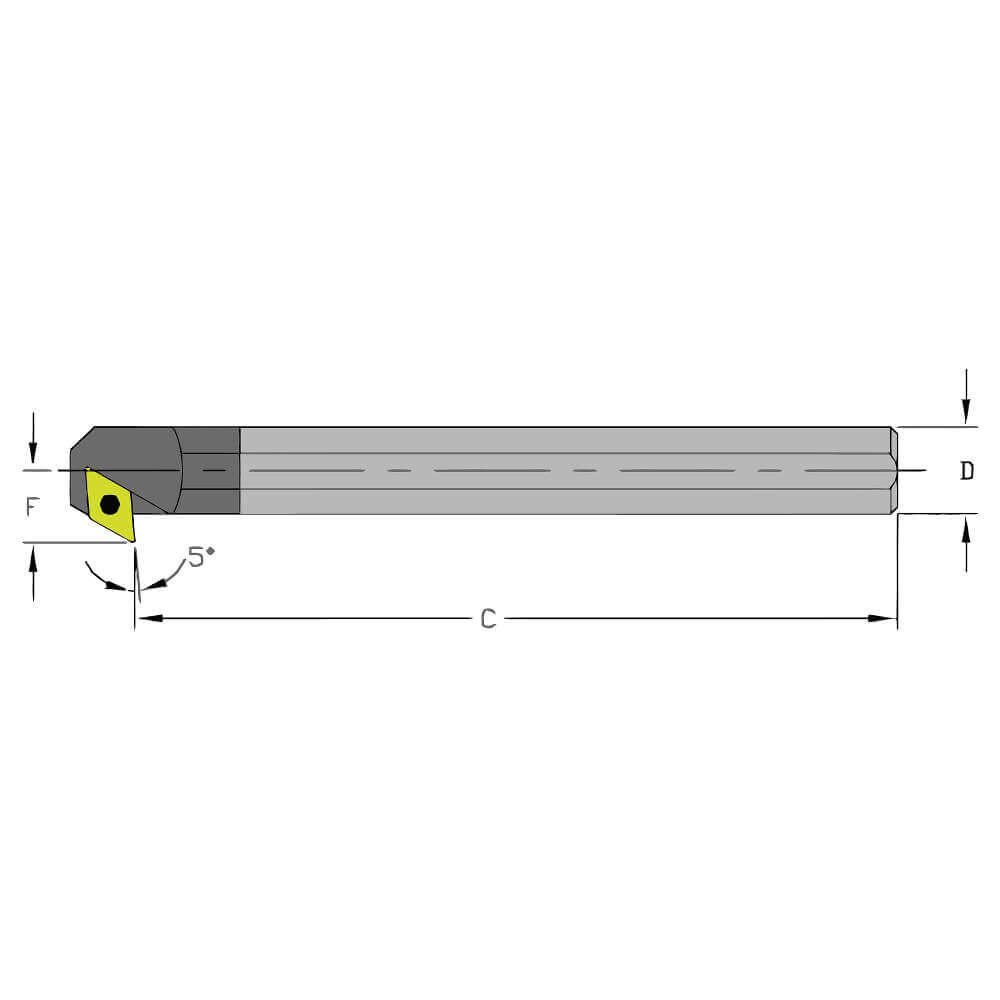

Ultra-Dex E16R SDXCR3 Carbide Boring Bar to Hold a Positive DCMT 32.51 at 5 Degree Lead, Right Hand, Coolant Thru, 1.000" x 8", 1.310" Minimum Bore

Ultra-Dex E16R SDXCR3 Carbide Boring Bar to Hold a Positive DCMT 32.51 at 5 Degree Lead, Right Hand, Coolant Thru, 1.000" x 8", 1.310" Minimum Borezoom

Attributes

Key Value
ANSI CodeE16R SDXCR3
ANSI NumberE16R SDXCR3
Bar Dia.1.000"
Coolant Supply Property.Coolant Thru
Cutting ApplicationBoring
Cutting DirectionRight Hand
Cutting Direction (HAND)Right Hand
Cutting Edge Type5 Degrees
For Use WithDCMT 32.51
Inscribed Circle3/8"
Insert Shape55 Degrees Diamond
Insert Size32.51
Insert Thickness0.1562"
ItemIndexable Boring Bar
Lead Angle5 Degrees
Left/Right HandRight Hand
Min. Bore1.310"
Min. Bore Dia.1.3100 in
Minimum Bore Diameter (.1.31"
Mounting StyleScrew Lock
Overall Length8 in
RakePositive
Shank Dia.1 in
Shank MaterialCarbide
Side Cutting Edge Angle5 Degrees
StyleCoolant-Thru, SDXCR
TypeTurning

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG9231031694.991In StockUltra-Dex Usa2.8694.99 @ 1
thumbzoomfreertool.comFTS-FG551257821.131In StockUltra-Dex821.13 @ 1
thumbzoomRaptor SuppliesAH3VHZ1039.34779651In StockULTRA-DEX USA1039.3477965 @ 1
