WEG 02018ET3E256T-W22

B00BC97VBY

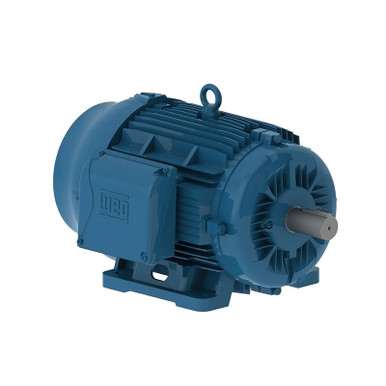

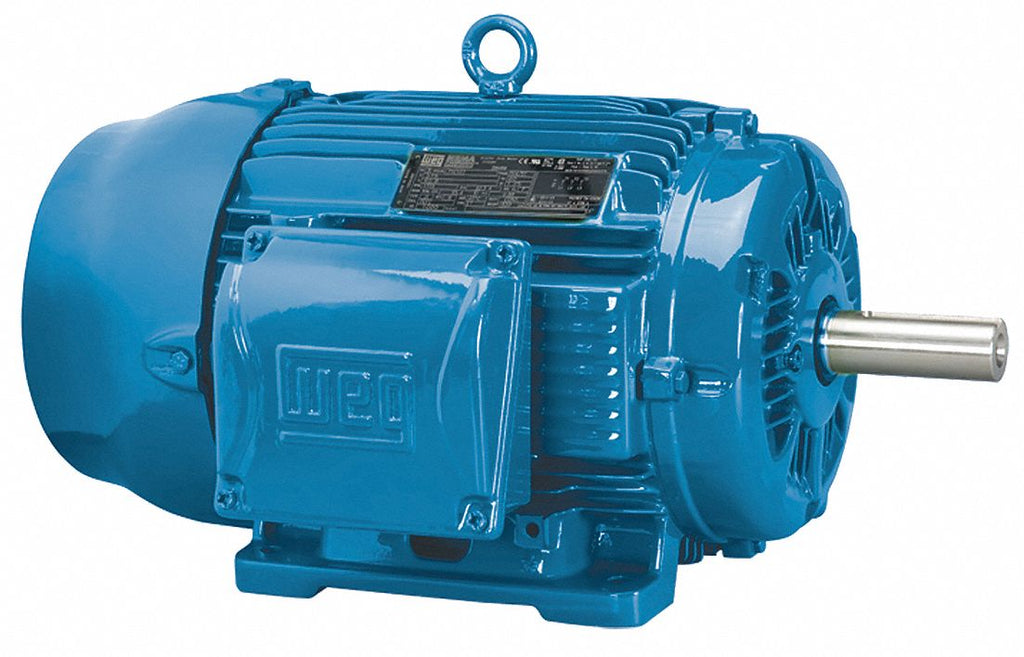

WEG Mtr,3 Ph,20 HP,1765,230/460,Eff 93.0 (02018ET3E256T-W22)

WEG Mtr,3 Ph,20 HP,1765,230/460,Eff 93.0 (02018ET3E256T-W22)zoom

Attributes

Key Value
Amperage Rating53.3 to 48.2/24.1 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
CompositionCast Iron
ConditionNew
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 20HP 4P 254/6T WF.
Drive End Flange TypeStandard
Efficiency %93 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight363.00
Family SeriesWEG Electric Motors
FL Amps24.1
FL Efficiency93.0
FlangesWithout Flanges
Frame254/6T, 256T, 254T
Frame RemarksFooted
Frequency60 Hz, 60/50 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower20 hp
HP20
Hz60
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number02018ET3E256T-W22
Length Less Shaft20 15/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number02018ET3E256T-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
MFG Part #:02018ET3E256T-W22
Model11438008
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM1,765
NEMA Frame256T
Net Weight324 lbs
Nominal Efficiency93 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating20 hp
Overall Length24 15/16 in
Part Number02018ET3E256T-W22
Phase3
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,800 RPM, 1800, 1765
RPM Range1,701-1,800
Service Factor1.25
Shaft Dia.1 5/8 in
Shaft Length4 in
Shaft Size1-5/8 in Dia x 4 in L
Special Features4-Pole, Direct On Line .
Speed1765 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7891327150768
Voltage230/460//380 V, 230/460.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight383.180000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com02018ET3E256T-W221282.01In StockWEG361.01282.0 @ 1
AmazonTPB007ICMESE1392.641In Stock2WEG1392.64 @ 1
thumbzoomWalker Industrial02018ET3E256T-W221650.751In Stock17WEG1650.75 @ 1
thumbzoommotorsandcontrol.com02018ET3E256T-W221650.7512WEG Electric363.01650.75 @ 1
steinerelectric.com3493281658.771In StockWEG1658.77 @ 1
thumbzoomMRO Supply13123061684.251In StockWEG1684.25 @ 1
kscdirect.comWEG 02018ET3E256T-W221690.311In StockWEG ELECTRIC CORP1690.31 @ 1
thumbzoommidwestapplianceparts.com02018ET3E256T-W22-WG-P1721.2911Weg1721.29 @ 1
thumbzoomDealers Electric02018ET3E256T-W221808.61In StockWeg363.01808.6 @ 1
thumbzoomZoroG02887661829.019Weg332.01829.0 @ 1
thumbzoomGalco02018ET3E256T-W22-WEG1844.651In StockWEG Electric324.01844.65 @ 1
thumbzoomindustrialrefrigerationparts.com02018ET3E256T-W221864.621In StockWEG383.181864.62 @ 1
thumbzoomvfds.com02018ET3E256T-W222201.01In StockWEG2201.0 @ 1
Airline HydraulicsWEG 02018ET3E256T-W222269.071In StockWEG2269.07 @ 1
thumbzoomPurvis02018ET3E256T-W222443.121In StockWEG2443.12 @ 1
thumbzoomsustainablesupply.comC15664912913.711In StockWEG332.02913.71 @ 1
thumbzoomNational Supply NetworkB8740342925.991In StockWeg Electric Motors2925.99 @ 1
thumbzoomRadwell02018ET3E256T-W222950.01In StockWEG2950.0 @ 1
thumbzoomRaptor SuppliesAE7TVV3046.4994691In StockWEG3046.499469 @ 1
