- mpnMNG14BCK
- brandname: 3-M
- manufacturername: 3-M
3M(TM) Scotchlok(TM) Butt Connector, Nylon Insulated w/Insulation Grip MNG14BCK, 16-14 AWG
- Brand: Scotchlok
- PartNumber: MNG14BCK
- PackageQuantity: 1000
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| 3M Number | MNG14BCK |
| Barrel Inside Dia. | 0.15 in |
| Barrel Inside Diameter | 0.09 in |
| Barrel Length | 0.25 in |
| Base Product Number | MNG14 |
| Body Finish | Tin Plated |
| Body Material | Copper |
| Brand | 3M |
| Category | Electrical Insulating T. |
| Color | Blue |
| Color Family | Blue |
| Compatible Installation. | TH-440, TH-450, TR-482,. |
| Connection Material | Brass |
| Connection Type | Crimp |
| Connector Type | Butt Splice |
| Contact Material | Brass |
| Country of Origin | US - United States, USA |
| Country of Origin (subj. | United States |
| ECCN | EAR99 |
| Features | - |
| For Maximum Wire Insula. | 0.17 in |
| For Wire Size | 14 AWG, 16 AWG |
| Inside Diameter | 0.09 in |
| Insulation | Fully Insulated |
| Insulation Color | Blue |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Item | Splice Connector |
| Manufacturer | 3M |
| Material | Brass, Nylon |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Insulation Outs. | 0.17 in |
| Maximum Operating Tempe. | 221 Degrees F |
| Maximum Voltage | 600 V |
| Maximum Wire Size | 14 AWG |
| Mfr | 3M |
| Minimum Conductor Leg D. | 16 AWG |
| Minimum Operating Tempe. | -40 Degrees F |
| Minimum Wire Size | 16 AWG |
| Number of Wire Entries | 2 |

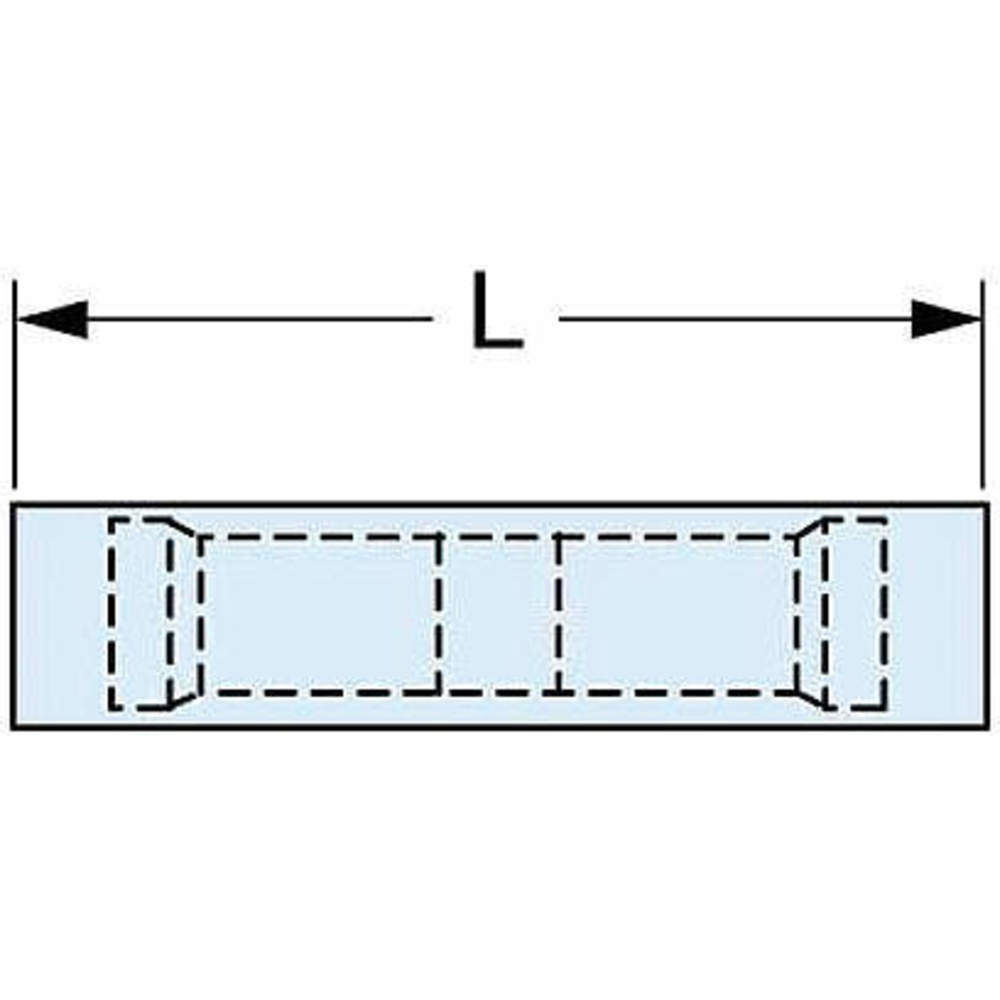

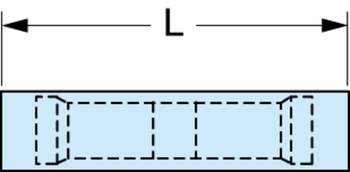

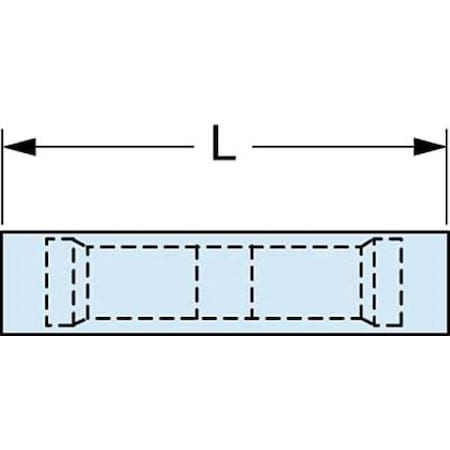

| Overall Length | 1.0 in, 1 in |
| Package | Bulk |
| Package Quantity | 1000 per case |
| Packaging | 1000 per Package |
| Part Status | Active |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Seamless |
| Series | Scotchlok? |
| Standards | CSA Certified, RoHS 201. |
| Terminal Type | Butt Splice, Inline, In. |
| Termination | Crimp |
| Termination Style | Crimp |
| Trade Name | Scotchlok |
| Type | Insulated, Butt Connect. |
| UNSPSC | 31201502 |
| UPC | 054007018186 |
| Use With | Copper Wire |
| Wire Gauge | 14-16 AWG |
| Wire Range | 16 to 14 AWG |
| Wire Size Range | 16 AWG - 14 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 3865673 | 0.84658 | 1000 | 1000 | | 3M | | 0.84658 @ 1000 |
 | turtle.com | MMM MNG14BCK | 0.94 | 1 | 1000 | | 3M | | 0.94 @ 1000 |
| Newark | 14T1022 | 1.11 | 1000 | 1000 | | 3M | | 1.11 @ 1000 |
 | Platt.com | 0318825 | 1.15 | 1 | 1000 | | 3M | | 1.15 @ 1000 |
| kirbyrisk.com | 2579916 | 1.86 | 1000 | 1000 | | 3M | | 1.86 @ 1000 |
 | sustainablesupply.com | C1180734 | 703.15 | 1 | 1000 | | 3M | 4.0 | 703.15 @ 1000 |
 | rshughes.com | 054007-01818 | 770.0 | 1000 | 1000 | | 3M | | 770.0 @ 1000 |
 | gordonelectricsupply.com | MNG14BCK | 795.0 | 1 | 1000 | 455 | 3-M | | 795.0 @ 1000 |
 | Zoro | G5809623 | 860.99 | 1 | 1000 | 26 | 3M | 4.0 | 860.99 @ 1000 |
| Dale-Electric | MNG14BCK | 877.8 | 1 | 1000 | | 3M | | 877.8 @ 1000 |
| Graybar | 94065492 | 1276.8672 | 1 | 1000 | | 3M | | 1276.8672 @ 1000 |
 | Raptor Supplies | AC2FMA | 1417.850109 | 1 | 1000 | | 3M | | 1417.850109 @ 1000 |
