Alpha Wire 1896/6C SL005

B005S3IM5E

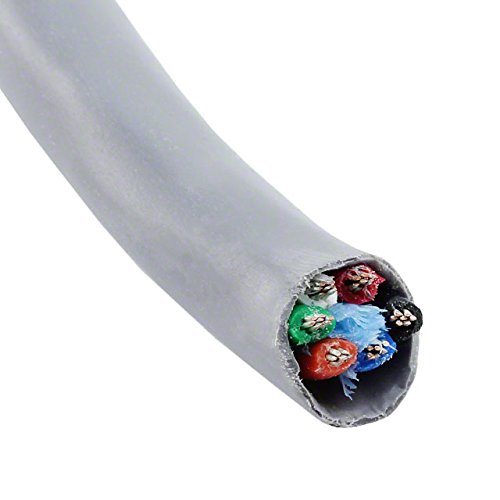

Alpha Wire Unshielded Multiconductor Cable, 6 Conductor, 20Awg, 100Ft, 300V - 1896/6C SL005

Alpha Wire Unshielded Multiconductor Cable, 6 Conductor, 20Awg, 100Ft, 300V - 1896/6C SL005zoom

Attributes

Key Value
ApplicationFor communication and c.
Cable TypeMulti-Conductor
CategoryCables, Wires
Conductor InsulationPoly-Vinyl Chloride (PV.
Conductor MaterialTinned Copper (TC), Cop.
Conductor Size20 AWG
Conductor Strand7/28
ConfigurationConductors
Features-
Insulation MaterialPolyvinyl Chloride (PVC)
Insulation Thickness0.016 in.
Jacket (Insulation) Dia.0.251" (6.38mm)
Jacket (Insulation) Mat.Poly-Vinyl Chloride (PV.
Jacket (Insulation) Thi.0.0200" (0.508mm)
Jacket ColorSlate
Jacket MaterialPolyvinyl Chloride (PVC)
Jacket Thickness0.020 in.
Length100.0' (30.5m), 100 ft
Maximum Operating Tempe.+75 ?C
MfrAlpha Wire
Number of Conductors6
Operating Temperature-20?C ~ 80?C
Outer Diameter0.25 in.
PackageSpool
PackagingCoil
Part StatusActive
Product HeaderMulticonductor Unshield.
Ratings-
Series1896C Series, -
Shield Coverage-
Shield Material-
Shield Type-
ShieldingU/UTP
StandardsUL CM AWM ; CSA CMG
Stranding7x28
Temperature, Rating-20 to 80 C
UsageCommunication, Control
Voltage300 V
Voltage Rating300 V
Wire Gauge20 AWG
Wire Size20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAI Consolidated1896-6C-SL005-ALPHA-WIRE81.841In StockAlpha Wire4.10781.84 @ 1
AmazonTPB00KSV7R20124.761In Stock5Alpha Wire124.76 @ 1
thumbzoomDigi-Key1896/6CSL005-ND130.271In StockAlpha Wire130.27 @ 1
RS Delivers828-2323152.076174Alpha Wire152.076 @ 1
thumbzoomalldataresource.comA1896/6C-100164.41In StockAlpha Wire164.4 @ 1
us.rs-online.com70140466198.26123Alpha Wire198.26 @ 1
thumbzoomNewark04F3489214.6615ALPHA WIRE214.66 @ 1
