Canarm SD10-XPF

mpnSD10-XPF
brandname: Canarm
manufacturername: Canarm

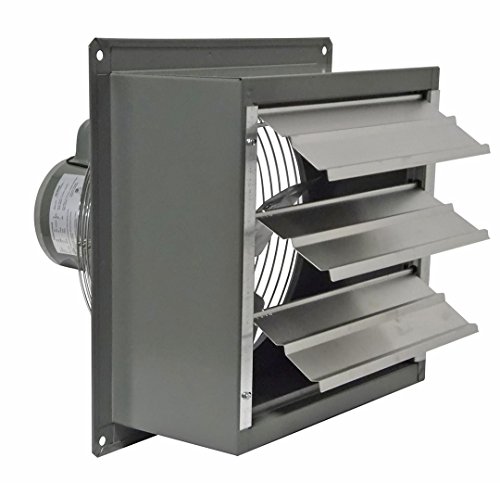

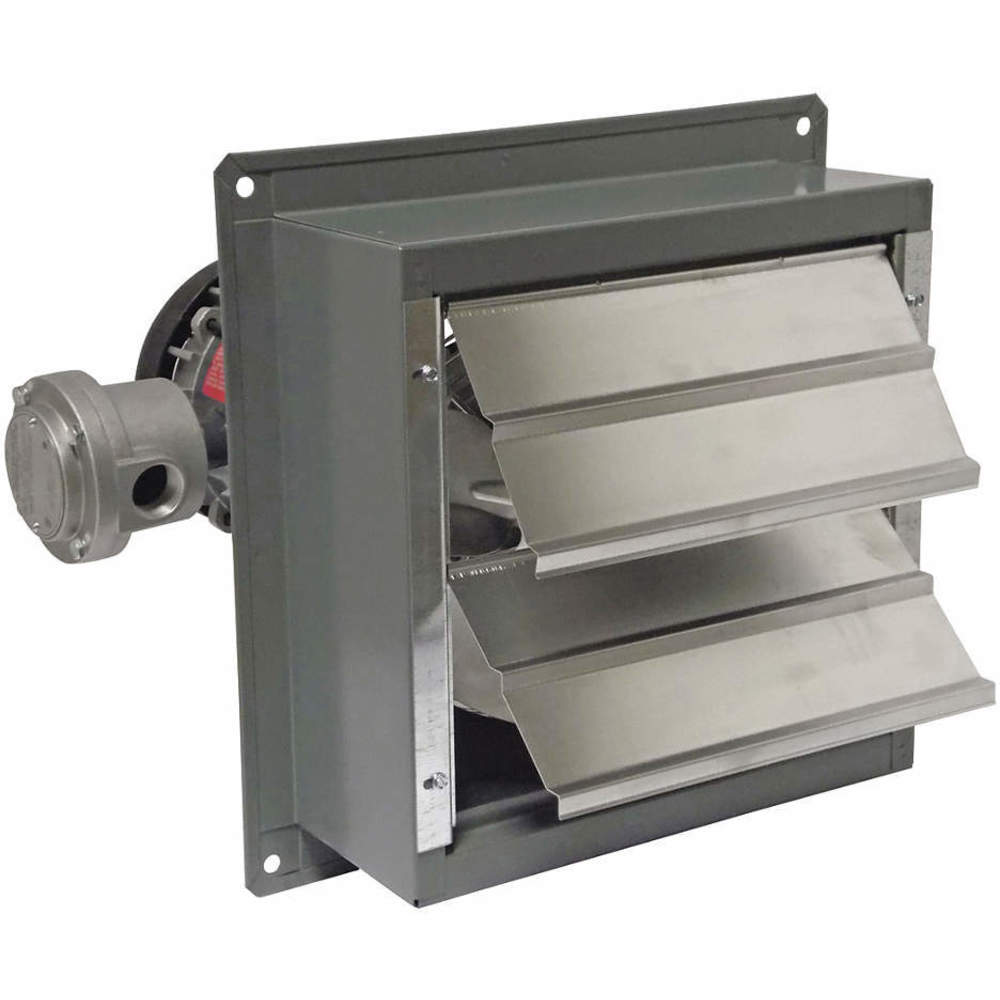

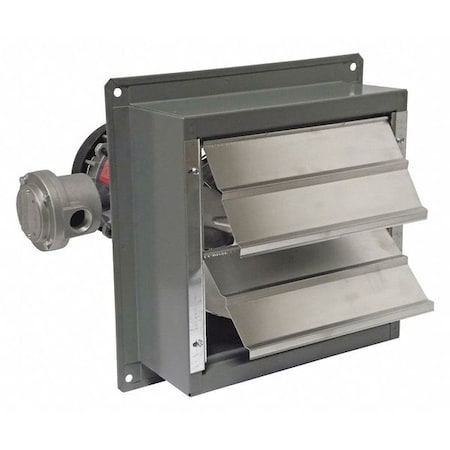

Exhaust Fan, Hazardous Location,10 in

Brand: Canarm
PartNumber: SD10-XPF
PackageQuantity: 1
Manufacturer: Canarm
Label: Canarm

Attributes

Key	Value
Agency Compliance	cETLus, OSHA Compliant .
Assembled	Fully Assembled
Bearing Type	Ball
Blade Dia.	10 in
Blade Diameter	10 in
Blade Material	Aluminum
Brand	Canarm
CFM @ 0.000-In. SP	620 cfm
Color	Chrome
Control Type	Toggle Switch
Current Stock	19
Dimension A (In.)	15 1/4 in
Dimension B (In.)	17 1/2 in
Dimension C (In.)	4 in
Dimension D (In.)	14 in
Drive Package Included	No
Drive Package With Moto.	No
Drive Type	Direct Drive
Duct Diameter	Not Applicable
Duct Height	Not Applicable
Duct Shape	Not Applicable
Duct Width	Not Applicable
Electrical Connection	Hardwired
Exhaust Airflow @ 0.000.	620 cfm
Exhaust Airflow @ 0.100.	530 cfm
Exhaust/Supply Fan Item	Exhaust Fan
Exhaust/Supply Fan Moto.	1/3 hp
Fan Style	Shutter-Mounted
Fan Voltage	115/208-230V AC
Flange Depth	1 1/4 in
Flange Depth (In.)	1 1/4 in
Flange Width	1 1/4 in
Flange Width (In.)	1 1/4 in
For Cut-Out Diameter	14 in
For Cut-Out Height	13 in
For Cut-Out Width	14 in
For Maximum Wall Thickn.	4 in
For Minimum Wall Thickn.	4 in
For Use With	General Ventilation App.
Frame Finish	Powder Coated
Frame Material	Steel
Frequency	60 Hz
Full Load Amps	6.6/3.3
Full Load Current	6.6 A
Guard Finish	Chrome
Guard Material	Steel
Guard Type	Intake
Hazardous Location Class	Class I, Group C and D:.
Height (In.)	15 1/4 in
Housing Finish	Powder-Coated
Housing Material	Steel
Hz	60
Includes	Aluminum Blades, EPFC M.
Includes Dehumidistat	No
Includes Grill	No
Includes Motor	No
Inside Dia. (In.)	8 1/5 in
International Shipping	No
Item	Shutter Mounted Hazardo.
Manufacturer Warranty L.	1 yr
Max. Ambient Temp. (F)	104 Degrees Degrees F
Max. Depth (In.)	17 1/2 in
Maximum Airflow	620 cfm
Maximum Ambient Operati.	104 Degrees F
Maximum Exhaust Airflow.	0 to 2000 cfm
Maximum Noise Level	6.5 sones
Maximum Noise Level @ 0.	Greater than 9.0 sones
Method of Construction	Stamped
Motor Enclosure	Totally Enclosed Fan Co.
Motor Enclosure Design	Totally Enclosed Fan Co.
Motor Horsepower	1/3 hp
Motor Insulation	Class B
Motor RPM	1,725 RPM
Motor Speed	1,625 RPM
Motor Type	Explosion Proof
Mounting Holes O.C. (In.	14 in
Mounting Location	Wall
Mounting Orientation	Horizontal
Mounting Position	Horizontal
Mpn	SD10-XPF
Nameplate Voltage	115/230V AC
Noise Level @ 0.000 in .	6.5 sones
Noise Level @ 0.100 in .	6.5 sones
Nominal Voltage	230V AC
Number of Blades	3
Number of Fans	1
Number of Speeds	1
Outside Dia. (In.)	7 1/8 in
Overall Depth	17 1/2 in
Overall Diameter	15 1/4 in
Overall Height	15 1/4 in
Overall Width	15 1/4 in
Phase	1
Propeller Material	Aluminum
Shaft Dia. (In.)	1/2 in
Shaft Diameter	1/2 in
SKU	ZO-G7585347
Speed Controllable	No
Square Opening Required	10-1/2 to 20 in
Supply Airflow @ 0.000 .	620 cfm
Thermal Protection	Yes
Type	Explosion Proof
UPC	062345350356
Vent Design	Ductless
Ventilation Type	Exhaust
Venturi Clearance Dia. .	1/8 in
Venturi Depth (In.)	5/8 in
Venturi Diameter	1/8 in
Wattage	250 W
Watts	250 W
Width (In.)	15 1/4 in

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G7585347	691.33	1	In Stock	Canarm	50.17	691.33 @ 1
sustainablesupply.com	C1134292	956.14	1	In Stock	Canarm	50.17	956.14 @ 1
simsupply.com	ZO-G7585347	973.99	1	19	Canarm		973.99 @ 1
Raptor Supplies	AG2BNF	1447.8956505	1	In Stock	CANARM		1447.8956505 @ 1
grainger.ca	LDRSD10XPF	1633.11430642	1	In Stock	CANARM	50.17	1633.11430642 @ 1
