- mpn52467
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

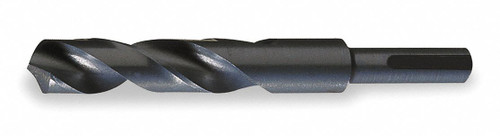

Chicago Latrobe 190F High-Speed Steel Reduced Shank Drill Bit, Black Oxide Finish, Flatted Shank, 118 Degree Conventional Point, 1-3/64" Size
- Brand: Chicago Latrobe
- PartNumber: 52467
- Model: 52467
- Size: 1-3/64"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Cast Iron. |
| Application | For Alloy and Carbon St. |
| Brand | Chicago-Latrobe |
| Coolant Through | No |
| Current Stock | 15 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.0469 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.046875, 1.0469" |
| Diameter (Fraction) | 1-3/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1 3/64 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
| Drill Size - Decimal In. | 1.0469 in |
| Drill Size - Fraction | 1-3/64 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| List Number | 190F |
| Material | HSS |
| Maximum Drilling Depth | 4 3/16 in |
| Measurement System | Imperial |
| Mpn | 52467 |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Split |
| Point Type | Split |
| Series | 190F |
| Shank Configuration | Reduced w/ 3 Flats |
| Shank Dia. | 1/2 in |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 1.0029" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 0.5, 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round with Flats, Flat/. |
| SKU | 52467, ZO-G1155861 |
| Style | 190F |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 1-3/64" |
| Type | General Purpose |
| UPC | 662355524671, 6.62E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 52467 | 51.7 | 1 | In Stock | | Chicago-Latrobe | | 51.7 @ 1 |
 | heavydutydepot.com | 52467 | 51.7 | 2 | In Stock | | Chicago-Latrobe | | 51.7 @ 2 |
 | MRO Supply | 6130984 | 51.99 | 1 | In Stock | | Chicago-Latrobe | | 51.99 @ 1 |
 | usmegastore.com | 52467 | 61.16 | 1 | In Stock | | Chicago-Latrobe | | 61.16 @ 1 |
 | Zoro | G1155861 | 67.06 | 1 | In Stock | | Chicago-Latrobe | 0.74 | 67.06 @ 1 |
 | simsupply.com | ZO-G1155861 | 77.9 | 1 | 15 | | Chicago-Latrobe | | 77.9 @ 1 |
| Amazon | B0025QSSR4 | 79.1 | 1 | In Stock | | Chicago-Latrobe | | 79.1 @ 1 |
 | bscsource.com | 52467 | 87.09 | 1 | In Stock | | Chicago-Latrobe | | 87.09 @ 1 |
 | National Supply Network | 93076388 | 91.32 | 1 | In Stock | | Chicago-Latrobe | | 91.32 @ 1 |
 | imsbolt.com | 52467 | 116.77 | 1 | In Stock | | CHICAGO-LATROBE | | 116.77 @ 1 |
 | Guardian | 93076388 | 129.98 | 1 | In Stock | | Chicago-Latrobe | | 129.98 @ 1 |
