- mpn52475
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

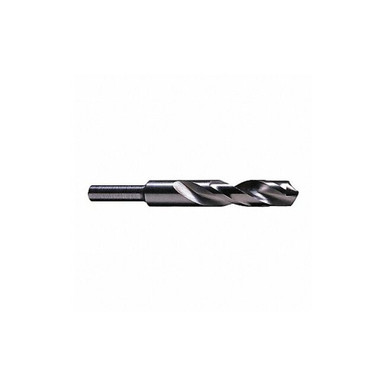

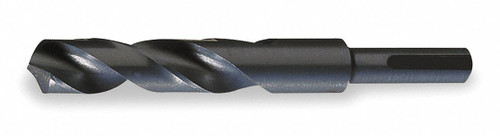

Chicago Latrobe 190F High-Speed Steel Reduced Shank Drill Bit, Black Oxide Finish, Flatted Shank, 118 Degree Conventional Point, 1-11/64" Size
- Brand: Chicago Latrobe
- PartNumber: 52475
- Model: 52475
- Size: 1-11/64"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Cast Iron. |
| Application | For Alloy and Carbon St. |
| Brand | Chicago-Latrobe |
| Coolant Through | No |
| Current Stock | 3 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.1719 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.1719", 1.171875 |
| Diameter (Fraction) | 1-11/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1 11/64 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
| Drill Size - Decimal In. | 1.1719 in |
| Drill Size - Fraction | 1-11/64 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 4 11/16 in |
| Measurement System | Imperial |
| Mpn | 52475 |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Split |
| Point Type | Split |
| Series | 190F |
| Shank Configuration | Reduced w/ 3 Flats |
| Shank Dia. | 1/2 in |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 1.1279" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 0.5, 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Round with Flats, Flat/. |
| SKU | 52475, ZO-G1155703 |
| Style | 190F |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 1-11/64" |
| Type | General Purpose |
| UPC | 662355524756, 6.62E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 52475 | 67.86 | 1 | In Stock | | Chicago-Latrobe | | 67.86 @ 1 |
 | heavydutydepot.com | 52475 | 67.86 | 2 | In Stock | | Chicago-Latrobe | | 67.86 @ 2 |
 | MRO Supply | 6130992 | 69.12 | 1 | In Stock | | Chicago-Latrobe | | 69.12 @ 1 |
 | Zoro | G1155703 | 75.99 | 1 | 10 | | Chicago-Latrobe | 0.92 | 75.99 @ 1 |
 | usmegastore.com | 52475 | 78.38 | 1 | In Stock | | Chicago-Latrobe | | 78.38 @ 1 |
 | simsupply.com | ZO-G1155703 | 88.27 | 1 | 3 | | Chicago-Latrobe | | 88.27 @ 1 |
| Amazon | B0020A0ZHQ | 105.15 | 1 | In Stock | | Chicago-Latrobe | | 105.15 @ 1 |
 | bscsource.com | 52475 | 112.59 | 1 | In Stock | | Chicago-Latrobe | | 112.59 @ 1 |
 | National Supply Network | 93076446 | 118.11 | 1 | In Stock | | Chicago-Latrobe | | 118.11 @ 1 |
 | imsbolt.com | 52475 | 155.25 | 1 | In Stock | | CHICAGO-LATROBE | | 155.25 @ 1 |
 | Guardian | 93076446 | 167.98 | 1 | In Stock | | Chicago-Latrobe | | 167.98 @ 1 |
