- mpnC24372
- brandname: Cle-Line
- manufacturername: Cle-Line

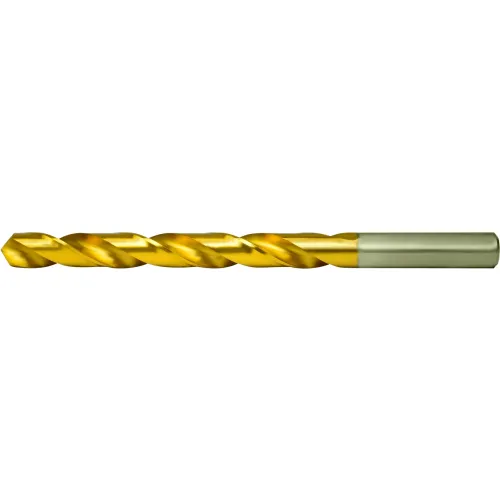

Cle-Line C24372 General Purpose Jobber Length Drill, High Speed Steel, TiN Finish, Straight Shank, 118-Degree Radial Point, 10.50 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C24372
- Model: C24372
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4134 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4134" |
| Diameter (Metric) | 10.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 10.50 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1242mm |
| Drill Size - Decimal In. | 0.4134 in |
| Drill Size - Metric | 10.5 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | TiN Coated |
| Flute Length | 3.4252", 87.00mm, 87 mm |
| Flute Length (Metric) | 87.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 2 9/16 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 133 mm, 133.00mm, 5.236. |
| Overall Length (Metric) | 133.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Series | 1898T |
| Shank Configuration | Straight |
| Shank Dia. | 10.5 mm |
| Shank Length | 1.8110", 46 mm |
| Shank Length (Metric) | 46.00mm |
| Shank Size | 10.5 mm Dia x 46 mm L, . |
| Shank Size (Metric) | 10.50mm |
| Shank Type | Straight |
| Standards | DIN 338 |
| Style | 1898T |
| Surface Condition | TiN |
| Through Coolant (Yes/No) | No |
| Tool Size | 10.5mm, 10.50mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C24372 | 10.23 | 1 | 6 | | Cle-Line | | 10.23 @ 6 |
 | heavydutydepot.com | C24372 | 10.23 | 10 | 6 | | Cle-Line | | 10.23 @ 10 |
 | Global Industrial | WBB2545715 | 10.25 | 6 | 6 | | Cle-Line | | 10.25 @ 6 |
 | usmegastore.com | C24372 | 10.3 | 1 | 6 | | Cle-Line | | 10.3 @ 6 |
 | MRO Supply | 6125256 | 11.72 | 3 | 6 | | Cle-Line | | 11.72 @ 6 |
 | Zoro | G4939746 | 70.5 | 1 | 6 | | Cle-Line | 0.01 | 70.5 @ 6 |
