Molex / Waldom 76015-3402

mpn0760153402
brandname: Molex
manufacturername: Molex

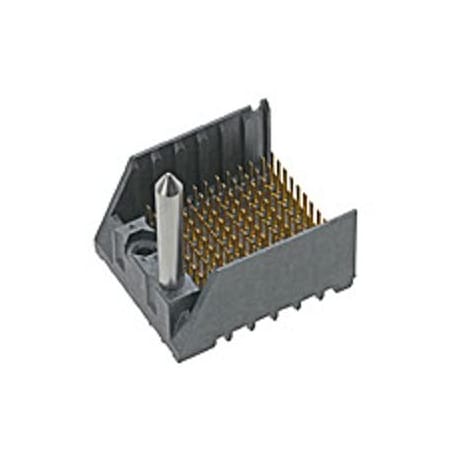

Molex / Waldom 76015-3402 Connector Backplane

Molex / Waldom 76015-3402 Connector Backplane

zoom

Brand: Molex / Waldom
PartNumber: 76015-3402
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Base Product Number	076015
Category	Connectors, Interconnec.
Color	Black
Connector Style	I-Trac
Connector Type	Header, Male Pins
Connector Usage	-
Contact Finish	Gold Plated, Gold
Contact Finish Thickness	30.0?in (0.76?m)
Contact Layout, Typical	-
Contact Plating Thickne.	0.762 ?m
Current Rating	1 A
Current Rating (Amps)	-
Description	CONN HEADER I-TRAC 56PO.
Detailed Description	56 Connector Header, Ma.
Digi-Key Part Number	0760153402-ND
Features	Surface Mount Compatibl.
Flammability Rating	UL 94V-0
Hole Center to Center	1.85 mm, 3.7 mm (Mating.
Manufacturer	Molex
Manufacturer Product Nu.	0760153402
Manufacturer Standard L.	13 Weeks
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	85?C
Max. Voltage	120V AC/DC
Mfr	Molex
Mounting Type	Through Hole
Number of Columns	4
Number of Contacts	56
Number of Positions	56
Number of Positions Loa.	All
Number of Rows	7
Operating Temperature	-
Package	Tray
Pitch	0.073" (1.85mm)
Product Status	Active
Series	GbX I-Trac 76015
Standards	UL E29179
Terminal Finish	Tin Plated
Terminal Type	Through Hole - Complian.
Termination	Press-Fit
Voltage Rating	120V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	76015-3402	6.08	1	284		MOLEX / WALDOM		6.08 @ 25
	Waldom	MOLEX 76015-3402	6.63	10	1113		MOLEX		6.63 @ 25
	jensentools.com	10196654	8.4	1	25		Molex		8.4 @ 25
	Digi-Key	2788650	9.0652	300	25		Molex		9.0652 @ 300
	Newark	56R9524	9.5	300	25		MOLEX		9.5 @ 300
	Zoro	G005926548	89.5	1	25		Molex		89.5 @ 25
