Molex / Waldom 19070-0012

B0105IV5NW

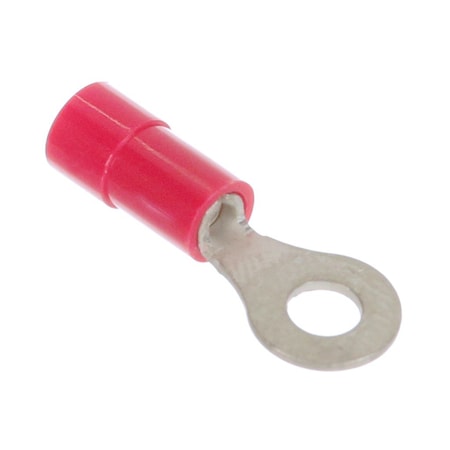

Molex / Waldom 19070-0012 Connector Terminals

Molex / Waldom 19070-0012 Connector Terminalszoom

Attributes

Key Value
Alternate Mfr Part Numb.AA-221-06XT
Alternate Part No.538-19070-0012
AngleStraight
Base Product Number019070
BrandMolex
CategoryConnectors, Interconnec.
ColorRed
Contact FinishElectro-Tin
Contact MaterialCopper
Contact PlatingTin
Country of Origin (subj.United States
Family NameInsulKrimp
FeaturesSerrated Termination
GenderFemale
InsulationInsulated
Insulation Diameter0.145" (3.68mm)
Insulation MaterialPolyvinyl Chloride (PVC)
Insulation TypePVC
Length - Overall0.866" (22.00mm)
ManufacturerMolex
Manufacturer Part No.19070-0012
MaterialCopper
Material - InsulationPoly-Vinyl Chloride (PV.
MfrMolex
Mounting AngleStraight
Mounting MethodWire
Mounting TypeFree Hanging (In-Line)
PackageTape & Reel (TR)
PackagingReel
Part # Aliases0190700012 AA-221-06XT
Plating MaterialTin
ProductRing Terminals
Product CategoryTerminals
Product StatusActive
SeriesInsulKrimp, 19070, 1907.
Special FeaturesNot Low-Halogen
Stud SizeM3.5 (#6)
Stud/Tab Size5-6 (M3-3.5), 6 Stud
Terminal TypeCircular
TerminationCrimp
Termination StyleCrimp
Thickness0.028" (0.71mm)
TradenameInsulKrimp
TypeRing Tongue
Voltage Rating600 V
Width - Outer Edges0.322" (8.18mm)
Wire Gauge18-22 AWG, 22-18
Wire Size18-22 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TTI19070-00120.11810000847Molex0.118 @ 10000
HotendaH16593700.154211847Molex0.15421 @ 1
Newark02N22730.251500400MOLEX0.25 @ 1500
thumbzoomZoroG77706980.321500400Molex0.32 @ 1500
thumbzoomswatee.com19070-00120.32312397Molex0.323 @ 1
Digi-Key31861430.391847Molex0.39 @ 1
us.rs-online.com700907170.42571400Molex Incorporated0.4257 @ 1
thumbzoomRadwell19070-00120.51500400MOLEX0.5 @ 1500
