NTN UELFU-1.7/16M

mpnUELFU-1.7/16M
brandname: NTN
manufacturername: NTN

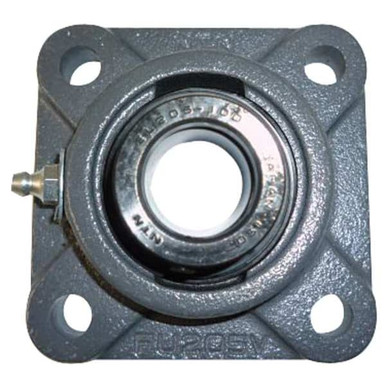

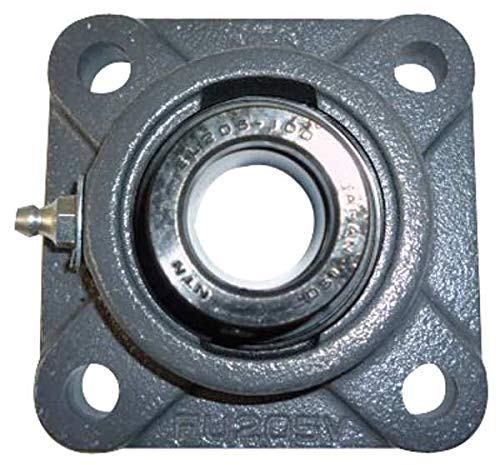

Flange Bearing, 4-Bolt, Ball, 1-7/16" Bore

Flange Bearing, 4-Bolt, Ball, 1-7/16" Bore

zoom

Brand: NTN
PartNumber: UELFU-1.7/16M
Model: UELFU-1.7/16M
PackageQuantity: 1
Manufacturer: NTN
Label: NTN

Attributes

Key	Value
Application	Agriculture, Automotive.
Back Side to Center Wid.	0.827 in
Bearing Housing Materia.	Cast Iron
Bearing Insert Material	52100 Chrome Steel, All.
Bearing Insert Type	Ball, Radial Ball
Bearing Material Grade	52100
Bolt Hole Center-to-Cen.	3 5/8 in
Bolt Size	3/8 in
Bore Dia.	1 7/16 in
Bore Diameter	1 7/16 in
Bore Type	Cylindrical
Brand	Ntn
Closure	Double Sealed
Current Stock	9
Dimension A	1 13/32 in
Dimension Ao	2 3/32 in
Dimension D	1 1/16 in
Dimension J	3 5/8 in
Dimension L	4 21/32 in
Dimension N	33/64 in
Dimension S	3/4 in
Dynamic Load Capacity	5,778 lbf
Flange Thickness	0.656 in
Housing Material	Cast Iron
Housing Material Finish	Black Oxide
Housing Type	Square
Included Bearing	A-UEL207-107D1
Includes	(4) Set Screws
International Shipping	No
Item	4 Bolt Flange Bearing
Lead Time	Expected to ship in 1-2.
Lubricant Material	NLGI #3 Equivalent
Lubrication Openings	One Zirc Fitting
Maximum Speed	4,200 RPM
Maximum Temperature	250 Degrees F
Minimum Temperature	-40 Degrees F
Mount Hole Center-to-Ce.	3.625 in
Mount Hole Center-to-Ce.	3.625 in
Mount Hole Size	0.516 in
Mounting Bolt Size	1/2 in
Mpn	UELFU-1.7/16M
Number of Mount Holes	4
Overall Height	2 3/32 in, 4.656 in
Overall Length	4 21/32 in, 4.656 in
Overall Width	4 3/8 in, 2.093 in
Rolling Element Rows	1
Seal Material	Nitrile Rubber
Seal Type	Contact
Series	Standard Duty
Shaft Locking Type	Eccentric Collar
SKU	ZO-G0979806
Static Radial Load Capa.	3,440 lbf
SubCategory	Power Transmission
System of Measurement	Inch
UPC	4547359234633
