FirstPower 4FRK7

mpn4FRK7
brandname: Power First
manufacturername: Power First

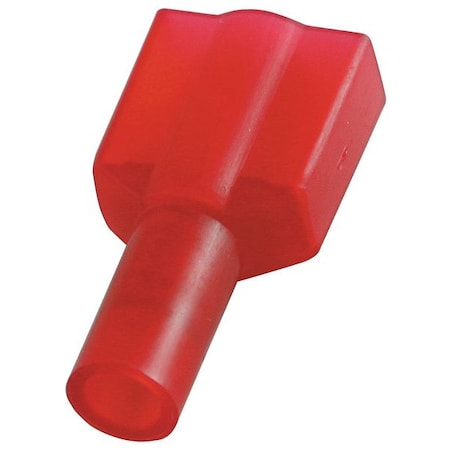

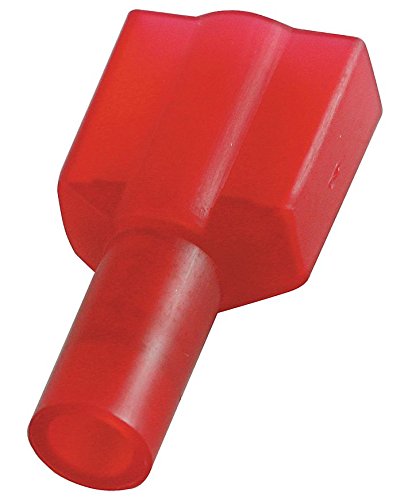

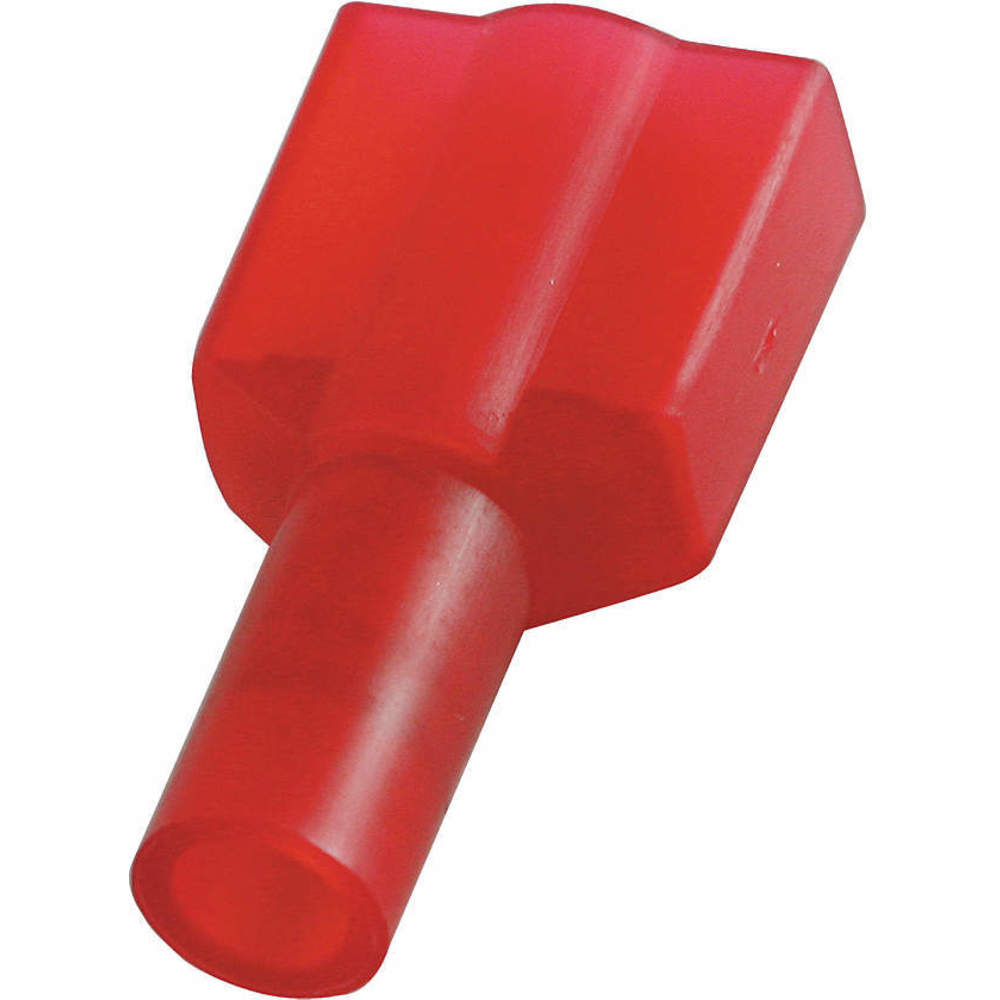

Male Disconnect, Red, 22-16AWG, PK100

Male Disconnect, Red, 22-16AWG, PK100

zoom

Brand: FirstPower
PartNumber: 4FRK7
Model: 4FRK7
PackageQuantity: 1
Binding: Misc.
Manufacturer: Power First
Label: Power First

Attributes

Key	Value
Barrel Inside Dia.	0.063 in
Barrel Inside Diameter	0.063 in
Barrel Outside Diameter	0.157 in
Barrel Size	Standard
Barrel Style	Crimp
Brand	Power First
Connection Material	Brass
Connection Orientation	Straight
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Brass
Current	10 A
Current Stock	84
Disconnect Style	Tab
For Wire Size	16 AWG, 18 AWG, 20 AWG,.
Insulation	Full
Insulation Color	Red
Insulation Colour	Red
Insulation Coverage	Full Coverage
Insulation Material	Nylon
Insulation Type	Nylon
International Shipping	No
Item	Male Disconnect
Material	HAWA
Max. Temp.	221 Degrees F
Max. Voltage	300 V
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	300V
Maximum Wire Size	16 AWG
Minimum Wire Size	22 AWG
Mpn	4FRK7
Overall Length	0.965 in
Prop 65	WARNING: Cancer and Rep.
RoHS Compliant	Yes
Seam	Butted
Seam Style	Butted
SKU	CU-3446524B37
Standards	UL/cUL Listed, UL, cUL
Strip Length	1/4 in
SubCategory	Electrical
Tab Size	0.032 in x 0.250 in
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Type	Tab
Terminal Types	Male Tab
Termination Style	Crimp
UL 94 Flammability Rati.	V-2
UPC	190735597705
Wire Range	22 to 16 AWG
Wire Size Range	22 AWG - 16 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1224605	19.99	1	327		Power First	1.65	19.99 @ 100
	grainger.ca	GGE4FRK7	21.79595418	1	100		POWER FIRST	0.3	21.79595418 @ 100
	sustainablesupply.com	C1199551	50.18	1	100		Power First	0.3	50.18 @ 100
	simsupply.com	CU-3446524B37	55.24	1	100		Power First		55.24 @ 100
	Raptor Supplies	AD7PAX	56.2138785	1	100		POWER FIRST		56.2138785 @ 100
	AmazonTP	B01N809CNH	64.62	1	100	3	Power First		64.62 @ 100
