Square D/Telemecanique ZD4PA103

B00CONKEH0

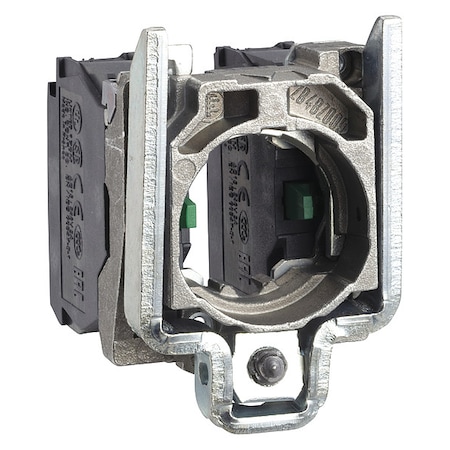

Square D Zd4Pa103 Repl Joystick Body

Square D Zd4Pa103 Repl Joystick Bodyzoom

Attributes

Key Value
(Select First, Then App.Schneider Electric, Har.
[Ie] Rated Operational .3 A 240 V, AC-15, A600 .
[Ith] Conventional Free.10 A EN/IEC 60947-5-1
[Ui] Rated Insulation V.600 V 3)EN 60947-1
[Uimp] Rated Impulse Wi.6 kV EN 60947-1
Accessory TypeRplcmt Joystick Body/Co.
Ambient Air Temperature.-25-70?C
Ambient Air Temperature.-40-70?C
ApplicationFOR JOYSTICK CONTROLLER
BrandSchneider Electric
Cad Overall Height47 mm
Cad Overall Width30 mm
Catalog NumberZD4PA103
CategorySwitches
CircuitDPST-NO
Contact Operationslow-break
Contact Rating @ Voltage6A @ 120VAC, 550mA @ 12.
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard
Country of OriginFrance
DescriptionRPLCMT JOYSTICK BODY/CO.
Detailed DescriptionConfigurable Contact Bl.
Device Presentationbasic element
Device Short NameZD4
Digi-Key Part Number4008-ZD4PA103-ND
Electrical Durability1000000 cycles, AC-15, .
Electrical Reliability? < 10exp(-6) 5 V 1 mA .
Family NameHarmony XB4 / XB5 Family
Fixing Collar Materialzamak
ItemRplcmt Joystick Body/Co.
Item TypeComplete body/contact a.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.ZD4PA103
Manufacturer Standard L.1 Weeks
Mechanical Durability1000000 cycles
MfrSchneider Electric
MountingPanel Mount
Mounting Hole Size22
Operating Temperature-25-70 A Degrees C
PackageBox
Product Or Component Ty.complete body/contact a.
Product StatusActive
RequiresSwitch Body
SeriesHarmony XB4, Harmony XB.
Shape Of Screw Headcross Philips no 1 || c.
Shock Resistance30 gn 18 ms) half sine .
Short-Circuit Protection10 A cartridge fuse gG .
Special Features10 A cartridge fuse gG .
Standard30 GN 18 MS) HALF SINE .
StandardsEN/IEC 60947-1 || UL 50.
Sub BrandZD4
TerminationScrew
Termination StyleScrew Terminal
UPC785901558477
UPC Code785901558477
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZD4PA10312.59144SCHNEIDER ELECTRIC12.59 @ 1
RS Delivers746-885022.321In StockSchneider Electric22.32 @ 1
thumbzoomDigi-Key1717752487.731In StockSchneider Electric87.73 @ 1
standardelectricsupply.com223696295.461In StockSchneider Electric95.46 @ 1
thumbzoomgordonelectricsupply.comZD4PA10397.091In Stock10SQUARE D97.09 @ 1
thumbzoomZoroG056436997.091In StockSchneider Electric0.1497.09 @ 1
Newark20K4975115.51In StockSCHNEIDER ELECTRIC115.5 @ 1
steinerelectric.com307884121.361In StockSquare D?121.36 @ 1
thumbzoomsustainablesupply.comC3039432139.951In StockSchneider Electric0.14139.95 @ 1
us.rs-online.com70332133175.421In StockSchneider Electric175.42 @ 1
thumbzoomNational Supply Network69533222183.51In StockSchneider Electric183.5 @ 1
thumbzoomcrescentelectric.com93904187.351In StockSchneider Electric187.35 @ 1
