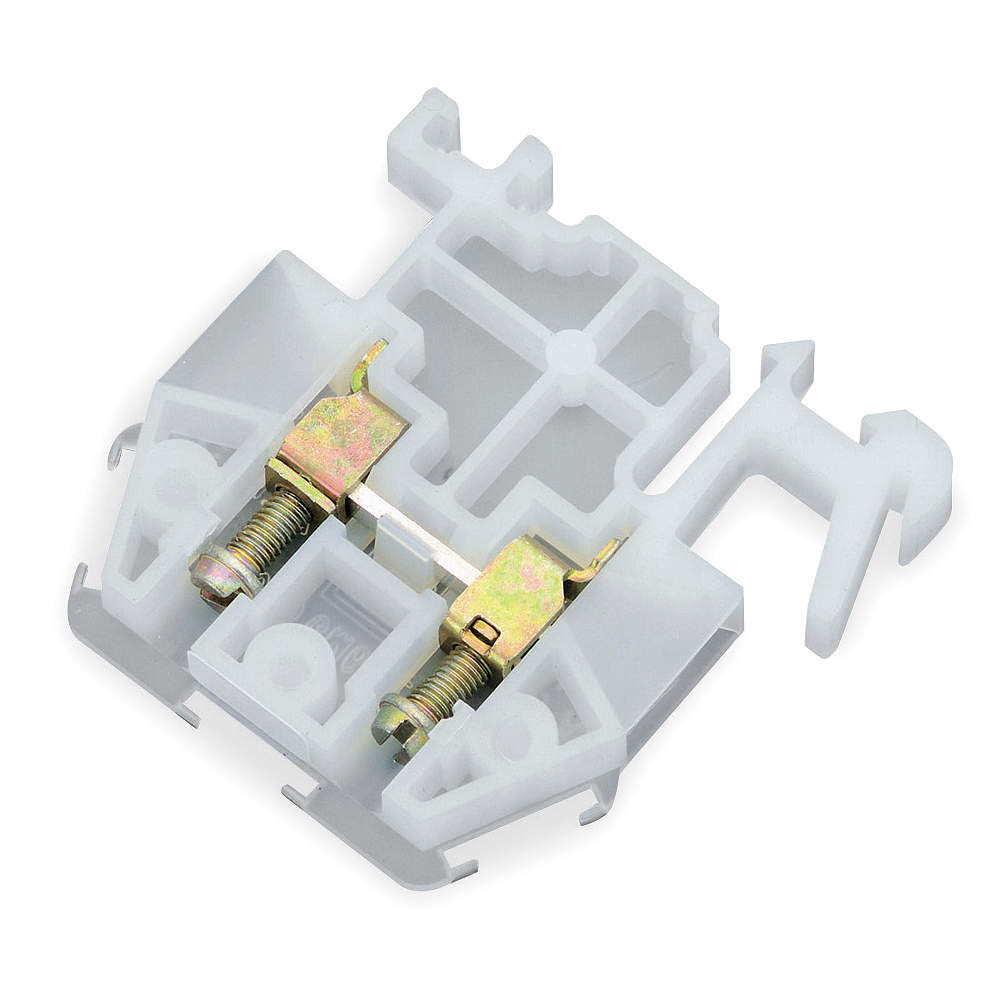

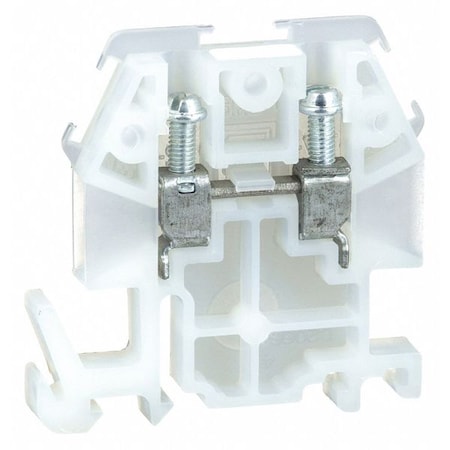

Square D 9080GM6

B00R8MT91E

Terminal Block,30 Amp

Terminal Block,30 Ampzoom

Attributes

Key Value
2-Pole Jumper Compatibi.5B368
6-Pole Jumper Compatibi.5B367
6-Pole Jumpers5B367
Amps30 A
Application9080G,GM6B
BrandSquare D
Catalog Number9080GM6
CategoryConnectors, Interconnec.
Channel Size35mm/GH
Circuit Protection TypeNone
ColorNatural
Compatible Grainger Par.2DC93, 2DC97, 2DF49, 3U.
Compatible Manufacturer.9080 GH230, 9080 GH31, .
ConnectionLug zinc plated steel 7.
Connection TypeScrew Clamp
Country of OriginMexico
Current30 A
Current - UL30 A
Current Rating30 A
Depth1.72 in
DescriptionTERMINAL BLOCK 600V 30A.
Detailed DescriptionTerminal Block Connecto.
Digi-Key Part Number4008-9080GM6-ND
Disconnect Type-
End Barrier Compatibili.5B361
Features-
For Channel Rail Size35 mm
For Conductor MaterialCopper
For Conductor TypeSolid, Stranded
For Fuse Diameter3 1/32 in
For Maximum Wire Size10 AWG
For Minimum Wire Size22 AWG
Fuse Type-
GTIN00785901743927
Height1.82 in
Housing ColourNatural
Housing MaterialNylon
IncludesAdhesive Backed Strips,.
ItemTerminal Block
Item TypeTerminal block;GM6B
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9080GM6
Manufacturer Standard L.1 Weeks
MaterialNylon block;Tin plated .
Material - InsulationPolyamide (PA), Nylon
Material Flammability R.-
Max. Wire Size10 AWG
Maximum Operating Tempe.257 Degrees F
Maximum Voltage600V AC/DC
MfrSchneider Electric
Min. Wire Size22 AWG
Minimum Operating Tempe.-40 Degrees F
MountingDin Rail
Mounting TypeDIN
Number of Connections2
Number of Levels1
Number of Poles1
Number of Positions1, 2
Number of Tiers2
Overall Depth0.24 in
Overall Length1.82 in
Overall Width1.72 in
PackageBox
Pieces per Foot51
Pin Spacing5.97 mm
Primary TypeDIN Rail Mount
Product StatusActive
RoHS CompliantYes
SeriesSquare D, 9080 Series
Size0.235
Special FeaturesFingersafe DIN 57470
StandardCE;CSA file 62144 class.
StandardsUL94V2, CE, CSA Approve.
Stripping Length-
Terminal - Width5.0mm
Terminal Block TypeSolderless Box Lug
Terminal MaterialZinc Plated Steel
Terminal TypeSolderless Box Lug
Termination StyleScrew
Torque8 lb-in
TypeFeed Through, Feed-Thro.
UL 94 Flammability Rati.V-2
UPC785901743927
UPC Code785901743927
Voltage600V AC
Voltage - IEC-
Voltage - UL600V
Voltage Rating600 V AC/DC
Warranty DescriptionContractual Warranty:18.
Width0.23 in
Wire Gauge or Range - A.10-22 AWG
Wire Gauge or Range - m.-
Wire Size10 to 22 AWG, AWG 22....
Wire Size Ranges22 AWG - 10 AWG
Wire Termination TypeBox Lug

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com9080GM61.49167SQUARE D1.49 @ 1
steinerelectric.com342901.55167Square D?1.55 @ 1
thumbzoomZoroG27721041.7518223Square D0.021.75 @ 1
us.rs-online.com700077441.881191Square D1.88 @ 1
thumbzoommostelectric.com9080GM62.32181SQUARE D/TELEMECANIQUE2.32 @ 1
thumbzoomsustainablesupply.comC12036372.47167Square D0.022.47 @ 1
thumbzoomDigi-Key171523122.47165040Schneider Electric2.4716 @ 50
Grainger5B3622.59154540SQUARE D2.59 @ 1
thumbzoomNewark11R79512.761112SQUARE D BY SCHNEIDER ELECTRIC2.76 @ 1
thumbzoomcrescentelectric.com1562833.11125Square D3.11 @ 1
thumbzoomRaptor SuppliesAG7CHC3.664908127SQUARE D3.664908 @ 1
grainger.caSQD9080GM64.81209378140SQUARE D0.024.81209378 @ 1
AmazonTPB00R8MT91E7.891675Square D/Telemecanique7.89 @ 1
thumbzoomNational Supply Network6968225012.77140Square D12.77 @ 1
standardelectricsupply.com3602386.0136Square D86.0 @ 1
