CAI - SQUARE D QO225GFI

B07GTF35R7

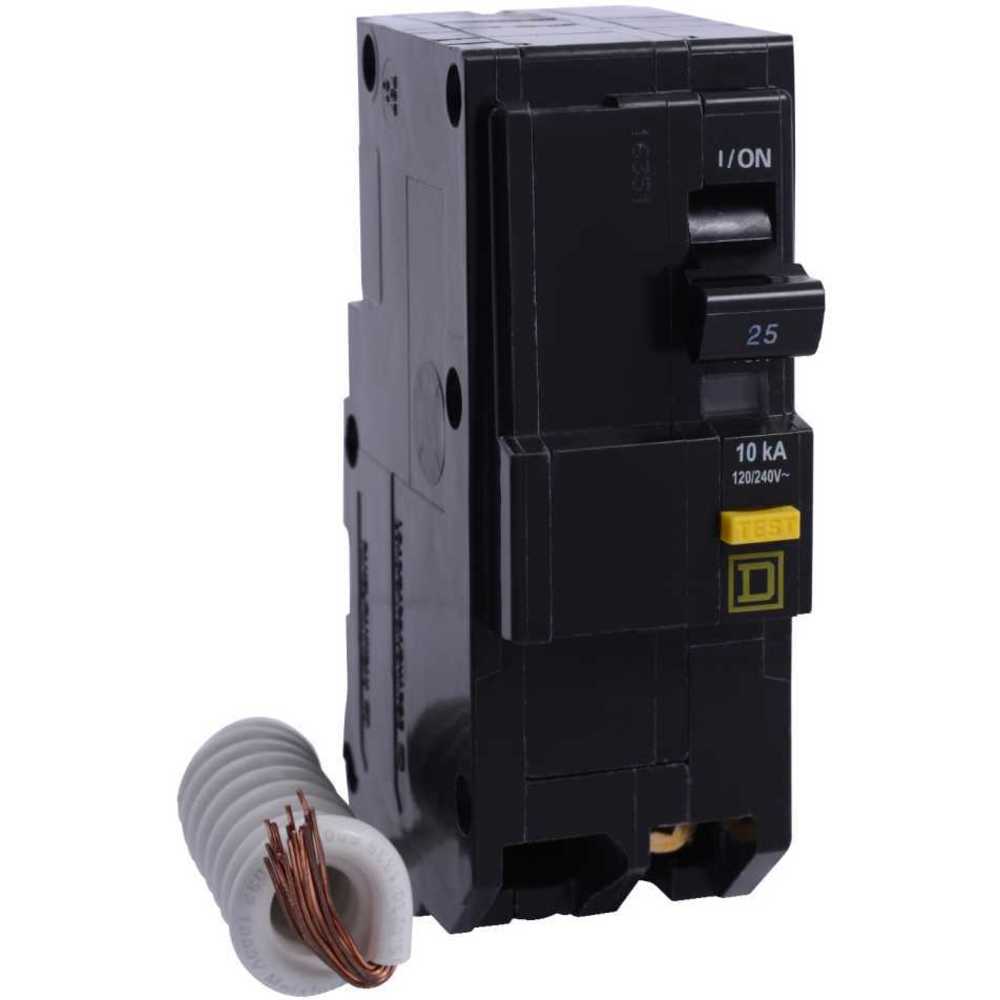

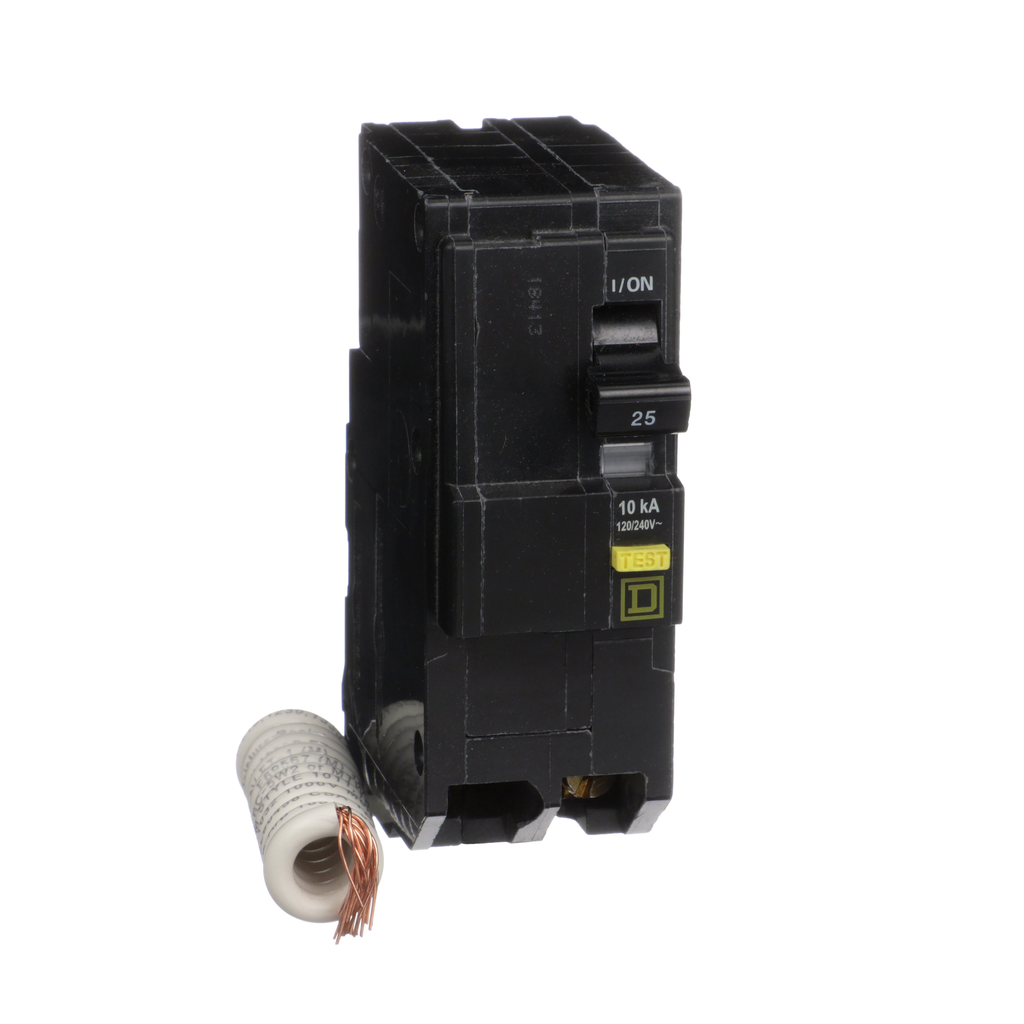

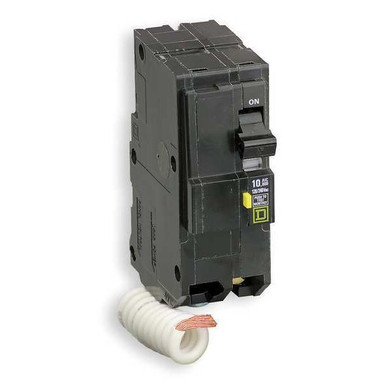

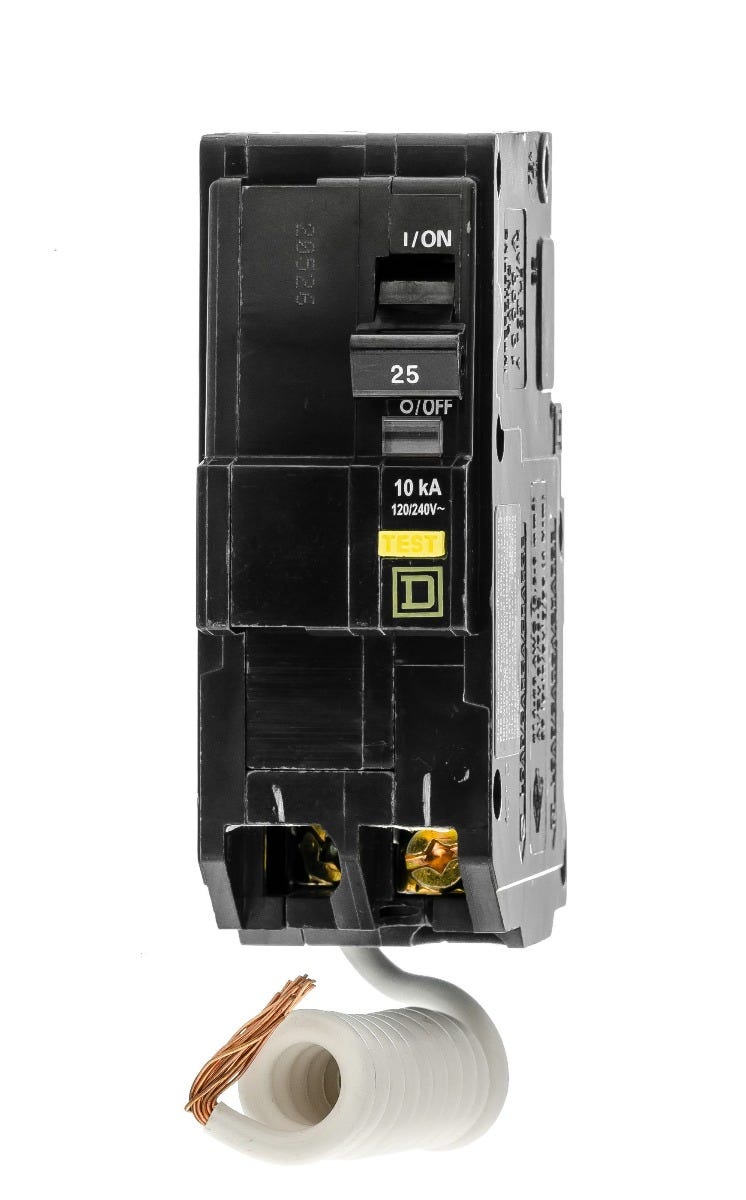

Plug In Circuit Breaker, QO, Number of Poles 2, 25 Amps, 120/240VAC

Plug In Circuit Breaker, QO, Number of Poles 2, 25 Amps, 120/240VACzoom

Attributes

Key Value
[Ue] Rated Operational .120/240 V AC || 120 V AC
AC Voltage Rating120/240V AC
Actuator TypePaddle
Ambient Air Temperature.40 ?C
Amperage25
Amperage Rating25
Amps25 A
Applicationnot rated
Awg GaugeAWG 14...AWG 8 copper |.
AWG RangeAWG 14...AWG 8 copper |.
BrandSquare D, Square D by S.
Breaking Capacity10 kA 120/240 V AC 50/6.
California Proposition .DINP, which is known to.
Catalog NumberQO225GFI
China Rohs RegulationProduct out of China Ro.
Circuit Breaker ActuatorPaddle
Circuit Breaker Applica.not rated
Circuit Breaker Mountin.Plug In, plug-in
Circuit Breaker TypeGround Fault Circuit In.
Circularity ProfileENVEOLI2212005
ColorBlack
Compatible Panelboard/L.NQ, QO
ConnectionPressure plate;AWG 14...
Connection Typeplug-in
Country of OriginMX - Mexico, Mexico
Current Rating25A, 20 A
Current Stock47
Curve TypeA
DC Voltage Ratingnot rated
Depth2.91 in, 74 mm
ECCNEAR99
Electrical Connectionpressure plate
Environmental DisclosureENVPEP2212005
Eu Rohs DirectiveCompliant
For Use WithQO Load Centers and NQ .
Frame Size100A/QO
Frame TypeQO
FunctionsLong Time and Instantan.
Height105 mm, 4.13
International ShippingNo
Interrupt Rating10?kA 120/240 V AC 50/6.
Interrupting Rating10kA 120/240VAC 50/60 Hz
ItemMiniature Circuit Break.
Item Typeminiature circuit-break.
Lead TimeExpected to ship in 1-2.
Length4.12 in, 2.91
Length (Straight Wirewa.4.12 in
Length UOMInch
Line Rated Current25 A
Made in USANo
ManufacturerSchneider Electric
Max Wire Size8 AWG
Max. AIR Rating10 kA at 120/240V AC, 1.
Max. Wire Size8 AWG
Mercury FreeYes
Min Wire Size12 AWG (Al), 14 AWG (Cu)
Min. Wire Size12 AWG (Al), 14 AWG (Cu)
Mounting Modeplug-in
Mounting TypeSocket Mount, plug-in
MpnQO225GFI
Net Weight0.426 kg
No. of Poles2
Number of Poles2
Number Of Spaces Requir.2
Operating Temperature40 A Degrees C
OverloadThermal Magnetic
Phase1, Single
Poles2
Poles Description2P
Product CertificationsUL Listed || CSA
Product Or Component Ty.miniature circuit-break.
ProtectionThermal Magnetic
Range Of ProductQO
Rated Voltage120/240V AC || 120V AC
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesQO Series, QO
SKUZO-G0685745
Special FeaturesGROUND FAULT PROTECTING.
StandardUL LISTED - CSA CERTIFI.
StandardsUL, CSA, CSA Certified,.
Sub BrandQO
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temperature Rating40?AC
Terminal Connectionpressure plate
Tightening Torque4-4 N.m || 4.6-4.6 N.m .
Torque4.6-4.6 N.m 2.5-10 mm? .
TypeGround-Fault
UNSPSC39121603
Upc785901562962
UPC785901562962
UPC Code785901562962
Voltage120/240VAC, 120/240 VAC
Voltage Rating120/240 V AC;120 V AC, .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width1.5 in, 38 mm, 1.5

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommayerelectric.comSQDQO225GFI138.761In StockSQUARE D0.9372138.76 @ 1
thumbzoomsustainablesupply.comC1179710141.891In StockSquare D0.96141.89 @ 1
simplybreakers.comQO225GFI146.991In StockSchneider Electric146.99 @ 1
thumbzoomRadwellQO225GFI150.012SCHNEIDER ELECTRIC SQUARE D150.0 @ 1
standardelectricsupply.com2218156150.411In StockSquare D150.41 @ 1
Graybar88242791151.748811Square D (Schneider Electric)151.7488 @ 1
thumbzoomZoroG0685745164.99159Square D0.96164.99 @ 1
thumbzoomsuperbreakers.comQO225GFI168.0140Square D168.0 @ 1
thumbzoomsimsupply.comZO-G0685745195.35147Square D195.35 @ 1
thumbzoomRaptor SuppliesAF9GXH236.7888121In StockSQUARE D236.788812 @ 1
us.rs-online.com70061157278.25110Square D278.25 @ 1
Newark80C4229417.3633In StockSQUARE D BY SCHNEIDER ELECTRIC417.36 @ 25
thumbzoomcrescentelectric.com83429489.461In StockSquare D by Schneider Electric489.46 @ 1
grainger.caSQDQO225GFI532.001281881In StockSQUARE D0.96532.00128188 @ 1
