Schneider Electric XUAJ0515S

mpnXUAJ0515S
brandname: SquareD
manufacturername: SquareD

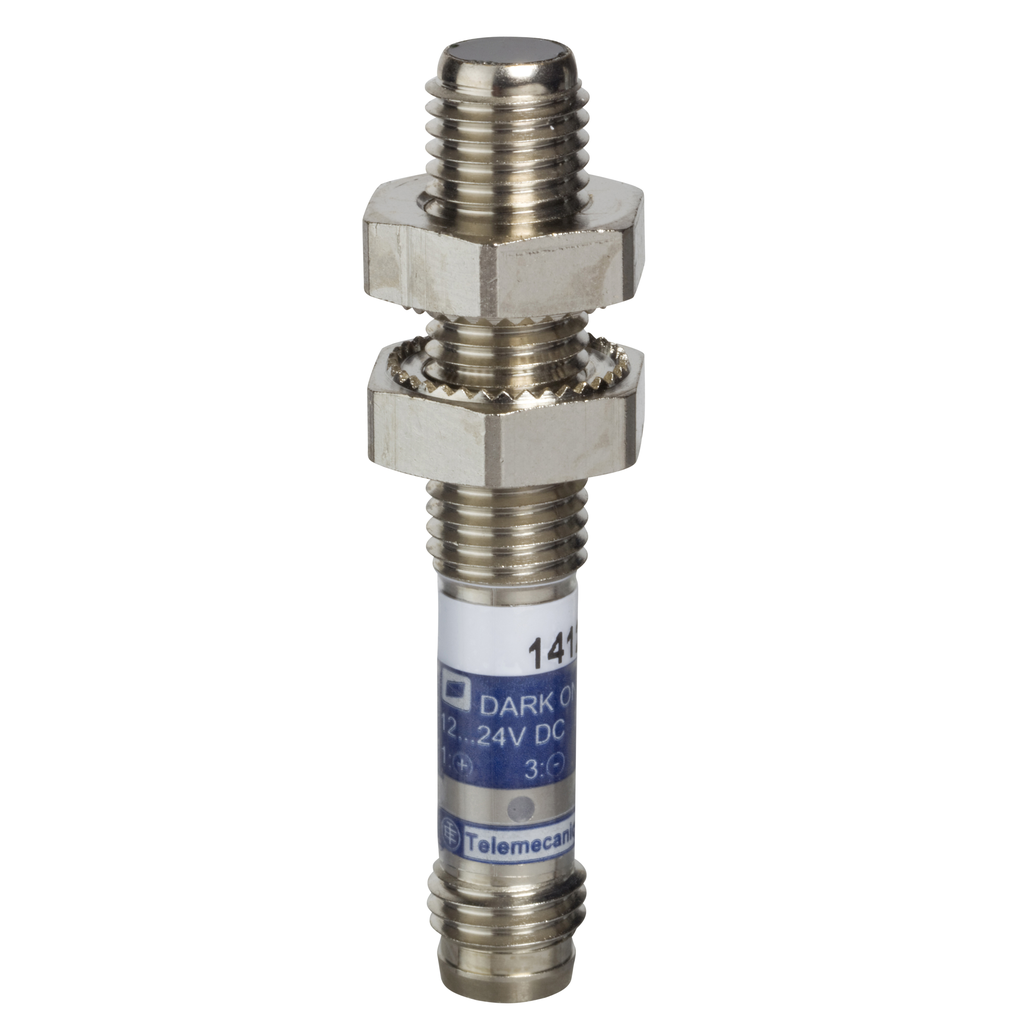

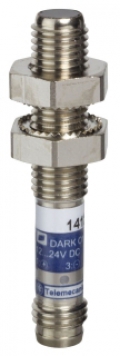

SCHNEIDER ELECTRIC XUAJ0515S Photoelectric Sensor 30-Volt 18Ma Options

Brand: Schneider Electric
PartNumber: XUAJ0515S
Model: XUAJ0515S
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: SCHNEIDER ELECTRIC
Label: SCHNEIDER ELECTRIC

Attributes

Key	Value
[Sn] Nominal Sensing Di.	0.05-0.05 m diffuse
[Us] Rated Supply Volta.	12...24 V DC reverse po.
Add On Output	without
Adjustment Type	-
Ambient Air Temperature.	-25-55 ?C
Ambient Air Temperature.	-30-70 ?C
Cable Composition	3 x 0.14 mm?
Cable Length	-
Cable Outer Diameter	3.5 mm
California Proposition .	Diisononyl phthalate (D.
Category	Sensors, Transducers
Connection Method	Connector, M8
Connection type	3-Pin M8 Male
Description	PHOTOELECTRIC SENSOR 30.
Detailed Description	Diffuse Optical Sensor .
Detection System	Diffuse
Diameter	8 mm
Digi-Key Part Number	4008-XUAJ0515S-ND
Discrete Output Function	1 NO
Discrete Output Type	NPN
Electrical Connection	1 male connector M8, 3 .
Electronic Sensor Type	photo-electric sensor
Emission	infrared diffuse
Enclosure Material	Nickel Plated Brass
Enclosure Type	NEMA 4X/IP65/IP67
Environmental Conditions	-22 to 158 deg F Storag.
Eu Rohs Directive	Pro-active compliance (.
Ingress Protection	IP65
Ip Degree Of Protection	IP67 IEC 60529 \|\| IP65 .
Length	48 mm
Lens Material	PMMA
Light Source	LED, Infrared
Line Of Sight Type	axial
Manufacturer	Schneider Electric
Manufacturer Product Nu.	XUAJ0515S
Manufacturer Standard L.	1 Weeks
Material	metal
Maximum Delay First Up	20 ms
Maximum Delay Recovery	0.5 ms
Maximum Delay Response	0.5 ms
Maximum Sensing Distance	0.06 m
Mercury Free	Yes
Mfr	Schneider Electric
Net Weight	0.5 kg
Operating Temperature	-25 to 55, -25?C ~ 55?C
Output Configuration	NPN-NC
Output type	1NO NPN/Solid State
Output Type	solid state
Package	Box
Product Certifications	CE \|\| cULus
Product Status	Active
Range Of Product	Telemecanique Photoelec.
Reach Regulation	Reference contains Subs.
Response Time	-
Rohs Exemption Informat.	Yes
Sensing Beam	Infrared
Sensing Distance	1.969" (50mm)
Sensing Method	Diffuse
Sensing Range	0.06
Sensor Design	cylindrical M8
Sensor Name	XUA
Series	XU
Series Name	Application assembly
Setting-Up	without sensitivity adj.
Shock Resistance	30 gn 11 ms) IEC 60068-.
Size	0.31 in Dia x 1.85 in L
Status Led	1 LED yellow)output sta.
Supply Circuit Type	DC
Supply Voltage Limits	10-30 V DC
Type	3-Wire Axial
Type Of Output Signal	discrete
Vibration	7
Vibration Resistance	7 gn +/- 1 mm 10-55 Hz).
Voltage - Supply	12V ~ 24V
Voltage Rating	12 to 24
Warranty	18 months
Wire Insulation Material	PvR
Wiring Technique	3-wire

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
standardelectricsupply.com	2294741	274.3	1	In Stock		Square D (Schneider Electric)		274.3 @ 1
gordonelectricsupply.com	XUAJ0515S	275.0	1	In Stock	10	SQUARE D		275.0 @ 1
Digi-Key	17156616	288.27	1	In Stock		Schneider Electric		288.27 @ 1
Radwell	XUAJ0515S	300.0	1	In Stock		SCHNEIDER ELECTRIC TELEMECANIQUE		300.0 @ 1
mayerelectric.com	SQDXUAJ0515S	303.09	1	In Stock		SQUARE D	1.1	303.09 @ 1
