B00DKC90PQ

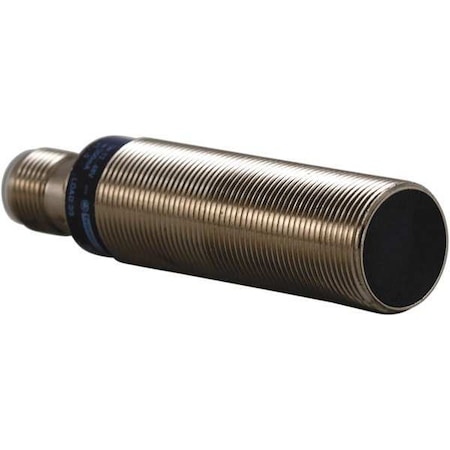

TELEMECANIQUE SENSORS - XS618B1PBM12 - INDUCTIVE PROXIMITY SENSOR, 4MM-8MM, 12VDC-48VDC

TELEMECANIQUE SENSORS - XS618B1PBM12 - INDUCTIVE PROXIMITY SENSOR, 4MM-8MM, 12VDC-48VDCzoom

Attributes

Key Value
ApplicationMobile equipment
Basic Proximity Sensor .Metal
Body StyleCylindrical
BrandTelemecanique Sensors, .
Case MaterialNickel Plated Brass
Catalog NumberXS618B1PBM12
ConnectorMale connector M12, 4 p.
Control OutputDC 3-WIRE (PNP) - 1 N.C.
Country of OriginIndonesia
Description/Special Fea.Extended Range
EnclosureNickel Plated Brass
Environmental ConditionsWATER TIGHT, DUST TIGHT.
IndicatorOutput state 1 LED yell.
International ShippingNo
IP RatingIP67 ; IP68, 67, 69K
ItemCylindrical Proximity S.
Item TypeInductive proximity sen.
Lead TimeExpected to ship in 1-2.
Length74 mm
Length (Straight Wirewa.74 mm
Made in USANo
ManufacturerSchneider Electric
MaterialMetal
Max. Current Load200mA
Max. Detecting Distance8 mm
Maximum Delay First Up10 ms
Measurement Range4 to 8 mm, 8 mm
MountingFlush
MpnXS618B1PBM12
NEMA Rating4x
Operating Temp. Range-13 Degrees to 158 Deg.
Operating Temperature-25-70 A Degrees C
OutputNC
Output ModeNC
Primary TypeInductive Proximity Sen.
Proximity Sensing MethodInductive
Proximity Sensor Diamet.18 mm
Proximity Sensor Electr.4 Pin M12 Connector
Proximity Sensor Operat.1,000 Hz
Proximity Sensor Output.3 Wire PNP
Proximity Sensor Power .12 to 24V DC
Proximity Sensor StyleCylindrical Proximity S.
Sensing Range> 0.16...0.31 in (> 4...
Sensor74 MM,INDUCTIVE PROXIMI.
SeriesXS600 Series
Shielded / UnshieldedShielded
SKUZO-G1406666
Special FeaturesMetal
StandardIP67 conforming to IEC .
StandardsCE Compliance, CSA Cert.
Sub BrandXS6
SubCategoryElectrical
Supply Voltage12-24 VDC, 12...48 V DC.
Switching Current200 mA
TerminationM12 Connector
UPC785901872238
UPC Code785901872238
Vibration Resistance25 gn +/- 2 mm 10-55 Hz.
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEXS618B1PBM1281.3211TELEMECANIQUE SENSORS81.32 @ 1
RS Delivers198-52681.456113Telemecanique Sensors81.456 @ 1
AmazonSCB007V6CTFA85.651In StockTELEMECANIQUE SENSORS85.65 @ 1
standardelectricsupply.com221885090.871In StockTelemecanique90.87 @ 1
thumbzoomZoroG140666694.99129Telemecanique Sensors0.1594.99 @ 1
Grainger1EXR195.51150TELEMECANIQUE SENSORS95.5 @ 1
thumbzoomsustainablesupply.comC2932765116.521In StockTelemecanique Sensors0.15116.52 @ 1
thumbzoomsimsupply.comZO-G1406666118.161In StockTelemecanique Sensors118.16 @ 1
thumbzoomNewark89H6747126.711In StockTELEMECANIQUE SENSORS126.71 @ 1
thumbzoomNational Supply Network59758169140.951In StockTelemecanique Sensors140.95 @ 1
us.rs-online.com70008239141.831In StockTelemecanique Sensors141.83 @ 1
thumbzoombscsource.comXS618B1PBM12146.991In StockTelemecanique Sensors146.99 @ 1
thumbzoomcrescentelectric.com341039153.361In StockTelemecanique153.36 @ 1
thumbzoomRaptor SuppliesAG9FYN211.86073351In StockTELEMECANIQUE SENSORS211.8607335 @ 1
