- mpn1C16UM
- brandname: Altech Corp
- manufacturername: Altech Corp

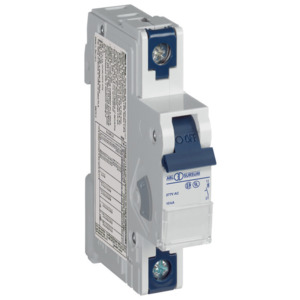

1C16UM, Altech Corp, UL508 UM Series
- Brand: ALTech
- PartNumber: 1C16UM
- Manufacturer: Altech
- Label: Altech
Attributes
| Key | Value |
|---|
| Actuator Type | Lever, Toggle |
| Alarm Switch | No |
| Approval Agency | CSA, UL508, VDE |
| Approvals | CE, CSA, UL, VDE, CSA C. |
| Auxiliary Switch | Optional |
| Base Product Number | 1C16 |
| Breaker Type | Thermal Magnetic |
| Busbar | Optional |
| Category | Circuit Protection |
| Characteristic | C Curve |
| CSA Standard | 22.2 |
| Current Rating | 16 A |
| Current Rating (Amps) | 16A |
| Description | 1C16UM 16A CIRCUIT BREA. |
| Detailed Description | Circuit Breaker Thermal. |
| Digi-Key Part Number | 1C16UM-ND |
| Dimensions | 2.94 L x 0.69 W x 3.67 . |
| Family Series | Altech Circuit Breakers. |
| Gross Weight | 0.295 lbs |
| Illumination | None |
| Illumination Voltage (N. | - |
| Item Number | 1C16UM |
| kAIC @ 277/480 VAC | 10 |
| Manufacturer | Altech, Altech Corporat. |
| Manufacturer Part Number | 1C16UM |
| Manufacturer Product Nu. | 1C16UM |
| Manufacturer Standard L. | 19 Weeks |
| Max Voltage | 480 VAC |
| Mfr | Altech Corporation |
| Mounting | DIN Rail |
| Mounting Type | DIN Rail Mount, DIN Rail |
| Net Weight | 0.3088 lbs |
| Neutral Pole | No |
| Number of Poles | 1 |
| Package | Bulk |
| Poles | 1 |
| Product Series | V-EA |
| Product Status | Active |
| Protection | Motor |
| Series | V-EA, V-EA Series |
| Shunt Trip | Optional |
| Standards | CSA C22.2 No. 14 Certif. |
| Terminal Type | Screw |
| Terminals Included | Line and Load |
| Termination | Screw |
| Trip Curve | C |
| Trip Time | 100 ms |
| Trip Unit | Fixed Thermal / Fixed M. |
| Type | Thermal/Magnetic |
| UL Standard | 508 |
| Undervoltage Release | Optional |
| Voltage Rating | 277 V |
| Voltage Rating - AC | 480 V |
| Voltage Rating - DC | 42 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | 1C16UM | 17.2 | 1 | In Stock | | Altech | | 17.2 @ 1 |
 | Galco | 1C16UM-ALTH | 19.37 | 12 | In Stock | | Altech | 0.3088 | 19.37 @ 12 |
 | Digi-Key | 8632826 | 22.44083 | 12 | In Stock | | Altech Corporation | | 22.44083 @ 12 |
 | jensentools.com | 10108274 | 23.1 | 1 | In Stock | | Altech | | 23.1 @ 1 |
| us.rs-online.com | 70076437 | 25.66 | 1 | 4 | | Altech Corp | | 25.66 @ 1 |
| Newark | 95AK1033 | 25.83 | 12 | In Stock | | ALTECH | | 25.83 @ 1 |
