Cle-line C20680

mpnC20680
brandname: Cle-Line
manufacturername: Cle-Line

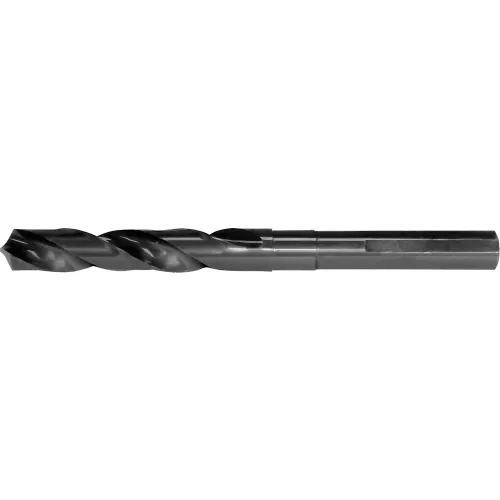

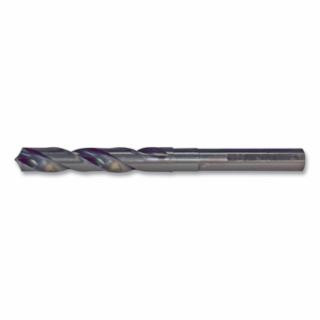

Cle-Line C20680 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 21/32" Drill Diameter

Cle-Line C20680 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 21/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20680
Model: C20680
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbons, Stainless .
Application	For Alloy And Carbon St.
Coolant Fed	Non-Coolant Through
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.6562
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.6562"
Diameter (Fraction)	21/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	21/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.6562 in
Drill Size - Fraction	21/32 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Black Oxide
Flute Length	3 1/8 in, 3.1250", 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	28 Degrees
Item	Reduced Shank Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Maximum Drilling Depth	2 5/8 in
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1892
Shank Configuration	Reduced w/ 3 Flats
Shank Dia.	1/2 in
Shank End Feature	3 Flats
Shank End Feature Length	0.8750"
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	0.6122"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Reduced/Round
SKU	C20680
Spiral Direction	Right Hand
Style	1892
Surface Condition	Steam Oxide
Tool Size	21/32"
Type	General Purpose
UPC	6.97334E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4953901	14.75	1	In Stock		Cle-Line	0.35	14.75 @ 1
	Global Industrial	WBB2543996	17.0	1	In Stock		Cle-Line		17.0 @ 1
	Megadepot	C20680	17.88	1	In Stock		Cle-Line		17.88 @ 1
	heavydutydepot.com	C20680	17.88	6	In Stock		Cle-Line		17.88 @ 6
	usmegastore.com	C20680	18.39	1	In Stock		Cle-Line		18.39 @ 1
	MRO Supply	6123947	19.92	3	In Stock		Cle-Line		19.92 @ 3
	AmazonSC	B00J9MBITC	27.27	1	In Stock		Cle-line		27.27 @ 1
	imsbolt.com	C20680	35.14	1	In Stock		CLE-LINE		35.14 @ 1
	National Supply Network	93097467	39.9	1	In Stock		Cle-Line		39.9 @ 1
