- mpnC20696
- brandname: Cle-Line
- manufacturername: Cle-Line

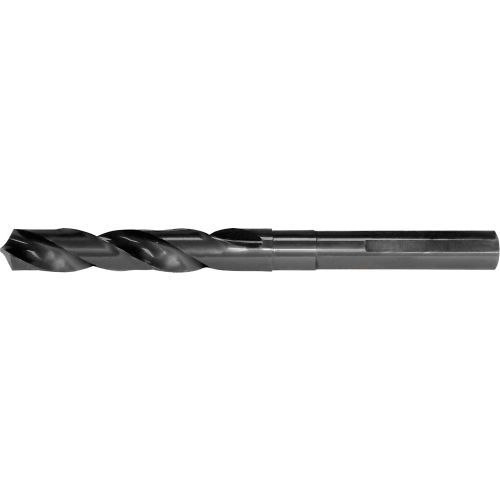

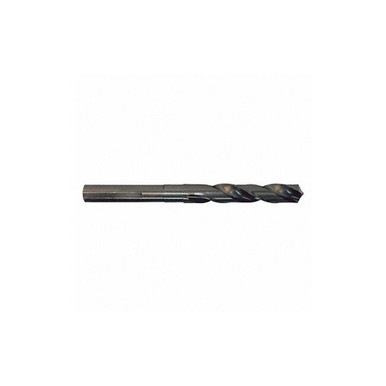

Cle-Line C20696 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 1 1/16" Drill Diameter


- Brand: Cle-line
- PartNumber: C20696
- Model: C20696
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
Key | Value |
---|
Applicable Materials | Low Carbons, Stainless . |
Application | For Alloy And Carbon St. |
Brand | Cle-Line |
Catalog Page | N/A |
Coolant Fed | Non-Coolant Through |
Country of Origin | USA |
Current Stock | 25 |
Cutting Depth | 3-1/8 in |
Cutting Direction | Right Hand |
Cutting Edge Material | HSS |
Decimal Equivalent | 1.0625 |
Depth x Dia. Ratio | 4xD |
Depth:Dia. Ratio | 4xD |
Diameter | 1.0625" |
Diameter (Fraction) | 1-1/16" |
Drill Bit Dimension Type | Fractional Inch |
Drill Bit Finish | Black Oxide |
Drill Bit Point Angle | 118 ?, 118 Degrees |
Drill Bit Point Type | Conventional Point |
Drill Bit Size | 1-1/16 in, 1 1/16 in |
Drill Construction | General Purpose |
Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
Drill Size - Decimal In. | 1.0625 in |
Drill Size - Fraction | 1-1/16 in |
Drill Size System | Fractional |
Drill Style | Silver & Deming Drill |
Finish | Black Oxide |
Finish - Machining | Black Oxide |
Flute Length | 3 1/8 in, 3.1250", 3-1/. |
Flute Length (Metric) | 79.38mm |
Flute Type | Spiral |
Hand of Cut | Right |
Hand of Spiral | Right |
Helix Angle | 28? |
International Shipping | No |
Item | Reduced Shank Drill Bit |
Item? | 50AY32 |
Material | HSS |
Material - Machining | High Speed Steel |
Material Grade - Machin. | M42 |
Maximum Drilling Depth | 2-1/2 in, 2 1/2 in |
Measurement System | Fractional Inch |
Mfr. Model? | C20696 |
Mpn | C20696 |
Number of Flutes | 2 |
Overall Length | 6.0000", 6 in |
Overall Length (Metric) | 152.40mm |
Point Angle | 118 deg, 118? |
Point Style | Radial |
Point Type | Radial |
Primary Material Applic. | Cast Iron; Steel |
Primary Material Applic. | K; P |
Series | 1892 |
Shank Configuration | Reduced w/ 3 Flats |
Shank Dia. | 1/2 in |
Shank End Feature | 3 Flats |
Shank End Feature Length | 0.8750" |
Shank Length | 2 1/4 in, 2.2500", 2-1/. |
Shank Length (Metric) | 57.15mm |
Shank Neck Diameter | 1.0185" |
Shank Neck Length | 0.5000" |
Shank Size | 0.5000", 1/2 in |
Shank Size (Metric) | 12.70mm |
Shank Type | Reduced/Round |
Shank Type - Machining | Straight |
Silver & Deming Drill | Yes |
SKU | ZO-G4953999, C20696 |
Spiral Direction | Right Hand |
Standards | Not Rated |
Style | 1892 |
SubCategory | Machining |
Surface Condition | Steam Oxide |
Tool Size | 1-1/16" |
Type | General Purpose |
UNSPSC | 27112801 |
UPC | 6.97E+11, 697334206965 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Megadepot | C20696 | 34.8 | 1 | In Stock | | Cle-Line | | 34.8 @ 1 |
  | heavydutydepot.com | C20696 | 34.8 | 3 | In Stock | | Cle-Line | | 34.8 @ 3 |
  | Global Industrial | WBB2544209 | 37.95 | 1 | In Stock | | Cle-Line | | 37.95 @ 1 |
  | usmegastore.com | C20696 | 40.47 | 1 | In Stock | | Cle-Line | | 40.47 @ 1 |
  | Zoro | G4953999 | 42.04 | 1 | 34 | | Cle-Line | 0.75 | 42.04 @ 1 |
  | MRO Supply | 6123963 | 46.8 | 2 | In Stock | | Cle-Line | | 46.8 @ 2 |
  | simsupply.com | ZO-G4953999 | 54.62 | 1 | 25 | | Cle-Line | | 54.62 @ 1 |
| Grainger | 50AY32 | 68.23 | 1 | In Stock | | CLE-LINE | | 68.23 @ 1 |
  | imsbolt.com | C20696 | 77.13 | 1 | In Stock | | CLE-LINE | | 77.13 @ 1 |
