- mpnC21076
- brandname: Cle-Line
- manufacturername: Cle-Line

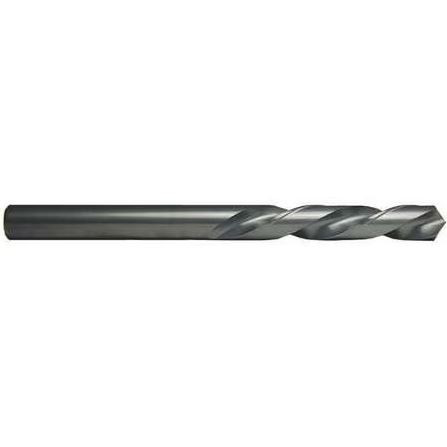

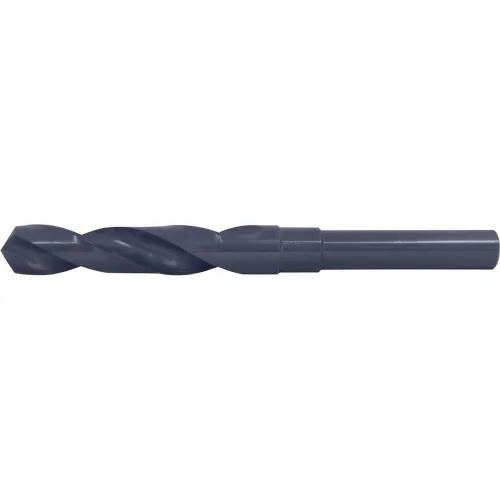

Cle-Line C21076 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 16.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C21076
- Model: C21076
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Iron Based Ferrous Meta. |
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 13 |
| Cutting Depth | 79.38 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.6299 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.6299" |
| Diameter (Metric) | 16.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 16.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.6299 in |
| Drill Size - Metric | 16 mm |
| Drill Size System | Metric |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 79.3. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2 1/2 in |
| Measurement System | Metric |
| Mpn | C21076 |
| Number of Flutes | 2 |
| Overall Length | 152.40 mm, 152.4 mm, 6.. |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1813M, 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 12.70 mm |
| Shank Length | 2.2500", 57.15 mm |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.5859" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 12.7 mm |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Reduced |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | ZO-G4958488, C21076 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1813M |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 16.00mm, 16mm |
| Type | General Purpose |
| UPC | 6.97E+11, 697334210764 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G4958488 | 18.29 | 1 | 13 | | Cle-Line | 0.52 | 18.29 @ 1 |
 | heavydutydepot.com | C21076 | 19.14 | 6 | In Stock | | Cle-Line | | 19.14 @ 6 |
 | Global Industrial | WBB2543690 | 21.0 | 1 | In Stock | | Cle-Line | | 21.0 @ 1 |
 | Megadepot | C21076 | 21.02 | 1 | In Stock | | Cle-Line | | 21.02 @ 1 |
 | usmegastore.com | C21076 | 21.87 | 1 | In Stock | | Cle-Line | | 21.87 @ 1 |
 | MRO Supply | 6124080 | 24.77 | 3 | In Stock | | Cle-Line | | 24.77 @ 3 |
 | simsupply.com | ZO-G4958488 | 27.09 | 1 | 13 | | Cle-Line | | 27.09 @ 1 |
| grainger.ca | GNFC21076 | 39.9556203 | 1 | In Stock | | CLE-LINE | 1.0 | 39.9556203 @ 1 |
 | imsbolt.com | C21076 | 40.82 | 1 | In Stock | | CLE-LINE | | 40.82 @ 1 |
