- mpnC21077
- brandname: Cle-Line
- manufacturername: Cle-Line

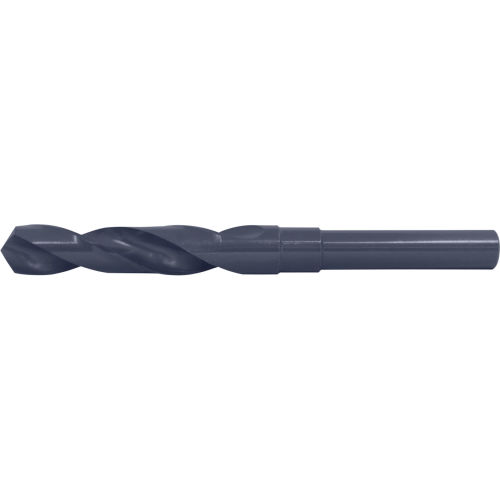

Cle-Line C21077 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 16.50 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C21077
- Model: C21077
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Cast Iron and Steel |
| Application | For Alloy And Carbon St. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 79.38 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.6496 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.6496" |
| Diameter (Metric) | 16.50mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Individual |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 16.50 mm |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.6496 in |
| Drill Size - Metric | 16.5 mm |
| Drill Size System | Metric |
| Drill Style | Silver & Deming Drill |
| Finish | Steam Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 79.3. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| Item | Reduced Shank Drill Bit |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2 19/32 in |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length | 152.40 mm, 152.4 mm, 6.. |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1813M |
| Shank Configuration | Reduced |
| Shank Dia. | 12.70 mm |
| Shank Length | 2.2500", 57.15 mm |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.6056" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 12.7 mm |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Reduced/Round |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | C21077 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1813M |
| Surface Condition | Steam Oxide |
| Tool Size | 16.50mm, 16.5mm |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543762 | 22.5 | 1 | In Stock | | Cle-Line | | 22.5 @ 1 |
 | Megadepot | C21077 | 22.64 | 1 | In Stock | | Cle-Line | | 22.64 @ 1 |
 | heavydutydepot.com | C21077 | 22.64 | 5 | In Stock | | Cle-Line | | 22.64 @ 5 |
 | usmegastore.com | C21077 | 23.07 | 1 | In Stock | | Cle-Line | | 23.07 @ 1 |
 | Zoro | G4958479 | 23.09 | 1 | In Stock | 10 | Cle-Line | 0.34 | 23.09 @ 1 |
 | MRO Supply | 6124081 | 26.58 | 2 | In Stock | | Cle-Line | | 26.58 @ 2 |
| grainger.ca | GNFC21077 | 39.91207194 | 1 | In Stock | | CLE-LINE | 1.0 | 39.91207194 @ 1 |
 | imsbolt.com | C21077 | 43.83 | 1 | In Stock | | CLE-LINE | | 43.83 @ 1 |
 | National Supply Network | 57645483 | 47.55 | 1 | In Stock | | Cle-Line | | 47.55 @ 1 |
