- mpnC22898
- brandname: Cle-Line
- manufacturername: Cle-Line

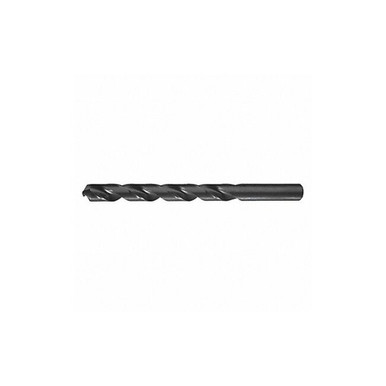

Cle-Line C22898 General Purpose Jobber Length Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 118-Degree Radial Point, 10.00 mm Drill Diameter (Pack of 6)
- Brand: Cle-line
- PartNumber: C22898
- Model: C22898
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Cle-Line |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 42 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3937 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3937" |
| Diameter (Metric) | 10.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 10.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.1183mm |
| Drill Size - Decimal In. | 0.3937 in |
| Drill Size - Metric | 10 mm |
| Drill Size System | Metric |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3.4252", 87 mm, 87.00 mm |
| Flute Length (Metric) | 87.00mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Item? | 50CR12 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 1-9/16 in, 1 9/16 in |
| Measurement System | Metric |
| Mfr. Model? | C22898 |
| Mpn | C22898 |
| Number of Flutes | 2 |
| Overall Length | 133 mm, 133.00 mm, 5.23. |
| Overall Length (Metric) | 133.00mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum; Brass; Bronze. |
| Primary Material Applic. | K; N; P, K, N, P |
| Series | 1899 |
| Shank Configuration | Straight |
| Shank Dia. | 10 mm |
| Shank Length | 1.8110", 46 mm |
| Shank Length (Metric) | 46.00mm |
| Shank Size | 1 mm Dia x 46 mm L, 0.3. |
| Shank Size (Metric) | 10.00mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G4939341 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M, DIN 338, . |
| Style | 1899 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | 10.00mm, 10mm |
| UNSPSC | 27112801 |
| UPC | 697334228981 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544721 | 4.58 | 6 | 6 | | Cle-Line | | 4.58 @ 6 |
 | Megadepot | C22898 | 4.83 | 1 | 6 | | Cle-Line | | 4.83 @ 6 |
 | usmegastore.com | C22898 | 4.98 | 1 | 6 | | Cle-Line | | 4.98 @ 6 |
 | heavydutydepot.com | C22898 | 4.98 | In Stock | 6 | | Cle-Line | | 4.98 @ 21 |
 | MRO Supply | 6124467 | 5.35 | 10 | 6 | | Cle-Line | | 5.35 @ 10 |
| Grainger | 50CR12 | 7.78 | 1 | 6 | | CLE-LINE | | 7.78 @ 6 |
 | Zoro | G4939341 | 7.78 | 1 | 200 | | Cle-Line | 0.13 | 7.78 @ 6 |
 | simsupply.com | ZO-G4939341 | 14.73 | 1 | 6 | | Cle-Line | | 14.73 @ 6 |
