- mpnC23416
- brandname: Cle-Line
- manufacturername: Cle-Line

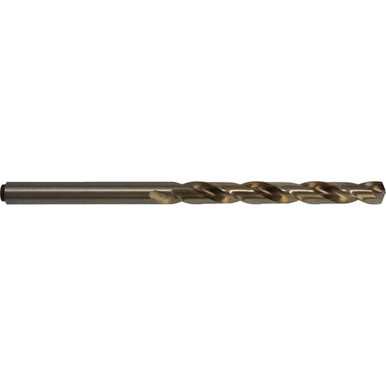

Cle-Line C23416 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 18 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23416
- Model: C23416
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Brand | Cle-Line |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 97 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.1695 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1695" |
| Diameter (Wire/Let) | 18 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #18 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0351 in |
| Drill Size - Decimal In. | 0.1695 in |
| Drill Size - Wire | #18 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 2-1/8 in, 2.1250", 2 1/. |
| Flute Length (Metric) | 53.97mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Item? | 53PP50 |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 43/64 in |
| Measurement System | Wire |
| Mfr. Model? | C23416 |
| Mpn | C23416 |
| Number of Flutes | 2 |
| Overall Length | 3-1/4 in, 3 1/4 in, 3.2. |
| Overall Length (Metric) | 82.55mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S, H; K; N;. |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 5/32 in |
| Shank Diameter | 5/32 in |
| Shank Length | 1.1250", 1 1/8 in, 1-1/. |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1695 in Dia x 1.125 i. |
| Shank Size (Metric) | 4.31mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G6375760 |
| Spiral Direction | Right Hand |
| Standards | ASME |
| Style | 1802 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | #18 |
| Type | Heavy Duty |
| UNSPSC | 27112801 |
| UPC | 697334234166 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543410 | 2.3462 | 12 | 12 | | Cle-Line | | 2.3462 @ 12 |
 | Zoro | G6375760 | 2.44 | 1 | 460 | | Cle-Line | 0.2 | 2.44 @ 12 |
 | Megadepot | C23416 | 2.49 | 1 | 12 | | Cle-Line | | 2.49 @ 12 |
 | usmegastore.com | C23416 | 2.49 | 1 | 12 | | Cle-Line | | 2.49 @ 12 |
 | heavydutydepot.com | C23416 | 2.49 | 41 | 12 | | Cle-Line | | 2.49 @ 41 |
 | MRO Supply | 6124841 | 2.85 | 18 | 12 | | Cle-Line | | 2.85 @ 18 |
 | sustainablesupply.com | C2765404 | 3.32 | 1 | 12 | | Cle-Line | 0.02 | 3.32 @ 12 |
| Grainger | 53PP50 | 4.24 | 1 | 12 | | CLE-LINE | | 4.24 @ 12 |
 | simsupply.com | ZO-G6375760 | 9.11 | 1 | 97 | | Cle-Line | | 9.11 @ 12 |
| AmazonSC | B00J9EY8UG | 15.61 | 1 | 12 | | Cle-line | | 15.61 @ 12 |
