Cle-line C23741

mpnC23741
brandname: Cle-Line
manufacturername: Cle-Line

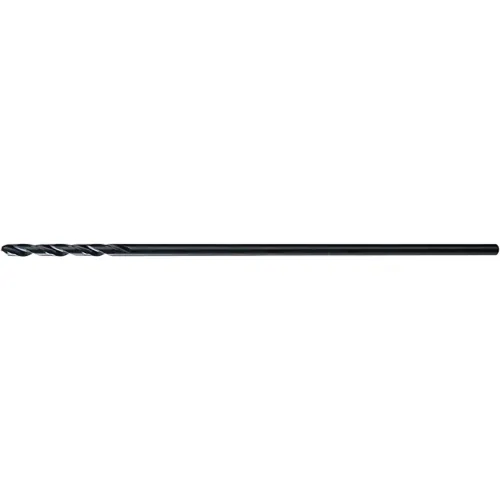

Cle-Line C23741 Aircraft Extended Length Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, 3/8" Drill Diameter (Pack of 6)

Cle-Line C23741 Aircraft Extended Length Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, 3/8" Drill Diameter (Pack of 6)

zoom

Brand: Cle-line
PartNumber: C23741
Model: C23741
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Angle Iron, Cast Iron, .
Coolant Fed	Non-Coolant Through
Cutting Depth	3-5/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.3750
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.3750"
Diameter (Fraction)	3/8"
Drill Bit Point Angle	135 Degrees
Drill Bit Size	3/8 in
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.0777 in
Drill Size - Decimal In.	0.375 in
Drill Size - Fraction	3/8 in
Drill Size System	Fractional
Drill Style	Aircraft Extension Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	3.6250", 3 5/8 in, 3-5/.
Flute Length (Metric)	92.07mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Extra Long Drill Bit
Material	HSS
Maximum Drilling Depth	1 1/2 in
Measurement System	Fractional Inch, Imperi.
Number of Flutes	2
Overall Length	12 in, 12.0000"
Overall Length (Metric)	304.80mm
Point Angle	135 deg, 135?
Point Style	Split
Point Type	Split
Primary Material Applic.	Steel
Primary Material Applic.	P
Series	1805
Shank Configuration	Straight
Shank Dia.	3/8 in
Shank Length	8.3750", 8 3/8 in
Shank Length (Metric)	212.72mm
Shank Size	3/8 in, 0.3750"
Shank Size (Metric)	9.52mm
Shank Type	Straight
Shank Type - Machining	Straight
Standards	ASME B94.11M
Style	1805
Surface Condition	Steam Oxide
Tool Size	3/8"
Type	Type B Extended Length

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	C23741	13.23	1	6		Cle-Line		13.23 @ 6
	Megadepot	C23741	13.23	1	6		Cle-Line		13.23 @ 6
	heavydutydepot.com	C23741	13.23	8	6		Cle-Line		13.23 @ 8
	Global Industrial	WBB2543726	15.0	6	6		Cle-Line		15.0 @ 6
	MRO Supply	6125045	15.27	3	6		Cle-Line		15.27 @ 6
	Zoro	G4941469	89.94	1	6		Cle-Line	0.05	89.94 @ 6
