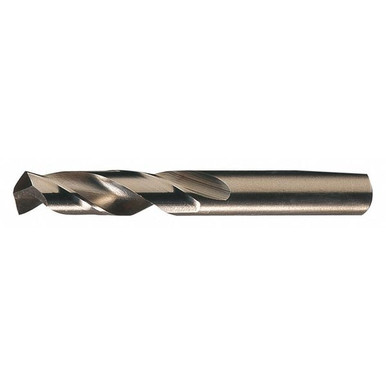

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, #7 (Pack of 10)
- Brand: Cleveland
- PartNumber: C14620
- Size: #7
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Carbon Steel, Cast Iron. |
| Application | For Drilling Carbon Ste. |
| Bit Dia. | #7 |
| Brand | Cleveland |
| Catalog Page | N/A |
| Construction | Heavy-Duty |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 97 |
| Cutting Depth | 1-3/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Decimal Equivalent | 0.2010" / 5.11mm, 0.2010 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Wire | 7 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #7 |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0416 in |
| Drill Size - Decimal In. | 0.201 in |
| Drill Size - Wire | #7 |
| Drilling Length | 1.188" |
| Finish | Straw/Gold Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 1 3/16 in, 1-3/16 in |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 28 Degrees, 28 ? |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Item? | 439V96 |
| Lead Time | Expected to ship in 1-2. |
| Length of Flute | 1.1875" / 30.16mm |
| List Number | 2133 |
| List Style | 2133 |
| Material | M42 HSS-Co 8, HSS-CO 8%. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 1 3/16 in, 1-3/16 in |
| Measurement System | Wire |
| Mfr. Model? | C14620 |
| Mpn | C14620 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 2.2500" / 57.15mm, 2-1/. |
| Point | 135? Split |
| Point Angle | 135 deg |
| Point Type | Split |
| Primary Material Applic. | Cast Iron; Stainless St. |
| Primary Material Applic. | K; M; P, K, M, P |
| Series | 2133 |
| Shank | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1-1/16 in, 1 1/16 in |
| Shank Shape | Straight |
| Shank Size | 0.2010" / 5.11mm, 0.201. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | #7 |
| SKU | ZO-G3001901 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M-1993 |
| Style | 2133 |
| SubCategory | Machining |
| Surface Condition | Straw, Straw / Gold Oxi. |
| Tool Size | #7 |
| Type | General Purpose Heavy D. |
| UNSPSC | 27112801 |
| UPC | 697334146209 |
