Martin 6 5V 1320 TB

B004BKIIXG

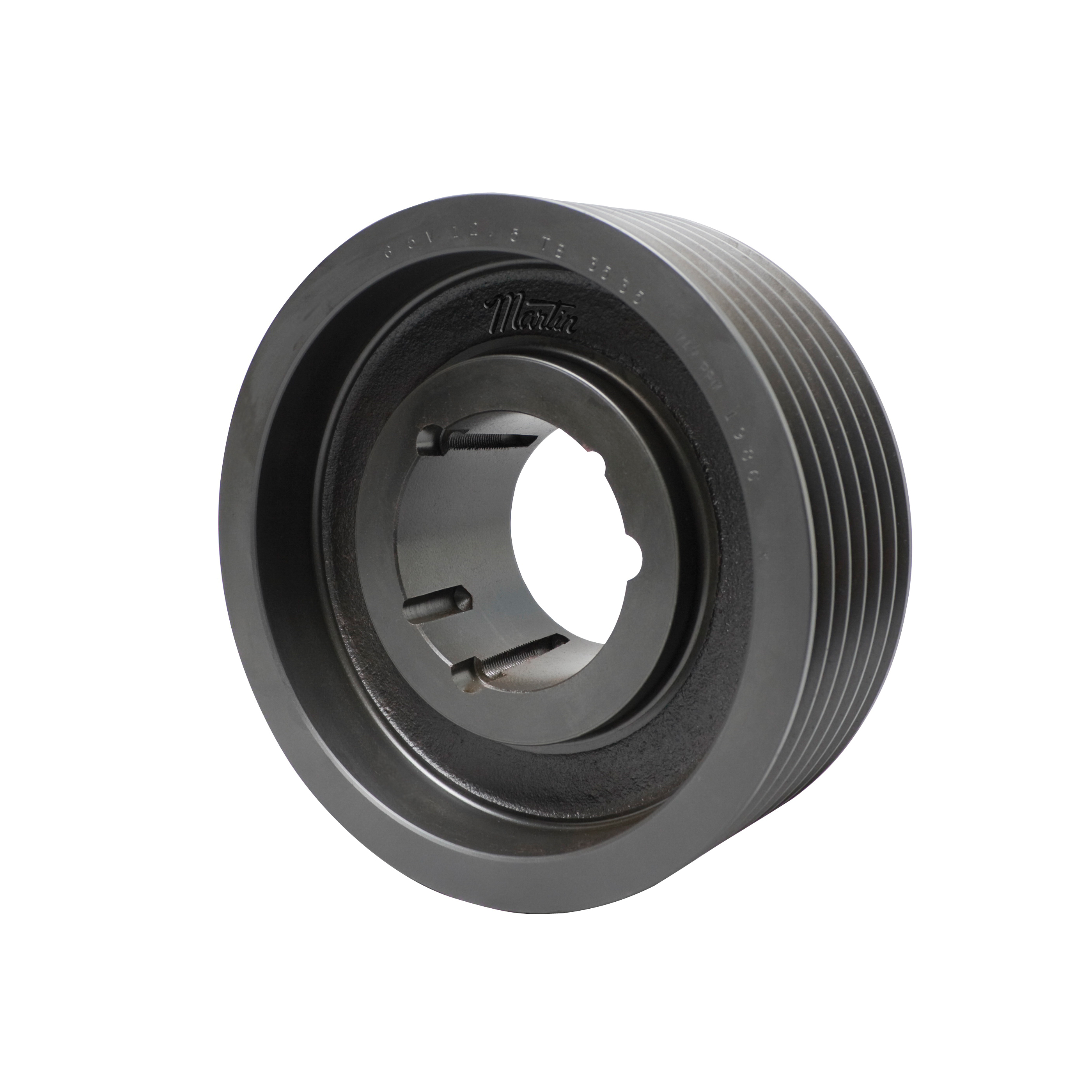

Martin 6 5V 1320 TB Hi-Cap TB Sheave, 5V Belt Section, 6 Grooves, 3535 Bushing required, Class 30 Gray Cast Iron, 13.2" OD, 1879 max rpm, 13.1" Pitch Diameter

Martin 6 5V 1320 TB Hi-Cap TB Sheave, 5V Belt Section, 6 Grooves, 3535 Bushing required, Class 30 Gray Cast Iron, 13.2" OD, 1879 max rpm, 13.1" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section5V
Bore TypeBushed
Bushed For3535
Bushing Maximum Bore Si.3.25 "
Bushing MountStandard
Bushing StyleTB
Country of Origin (subj.United States
Length Through Bore3.5 "
MaterialCast Iron
Number of Grooves6
Outer Diameter13.2 in
Outside Dia13.200"
Pitch Diameter13.1 "
Sheave ConstructionWeb
Sheave Face Width4.4375 "
Sheave TypeHigh Capacity
UPC Code697950157818
Weight62.6 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com72480272560.221In StockMartin Sprocket & Gear62.6560.22 @ 1
thumbzoomMRO Supply255515582.551In StockMartin Sprocket582.55 @ 1
factorysupplyoutlet.comXB88LV603.011In StockMARTIN603.01 @ 1
thumbzoomZoroG3315677684.01In Stock14Martin Sprocket & Gear684.0 @ 1
thumbzoomPurvis6 5V 1320 TB718.21In StockMartin718.2 @ 1
