- mpn140-SA-00-OO-50P
- brandname: MIDWEST INSTRUMENT
- manufacturername: MIDWEST INSTRUMENT

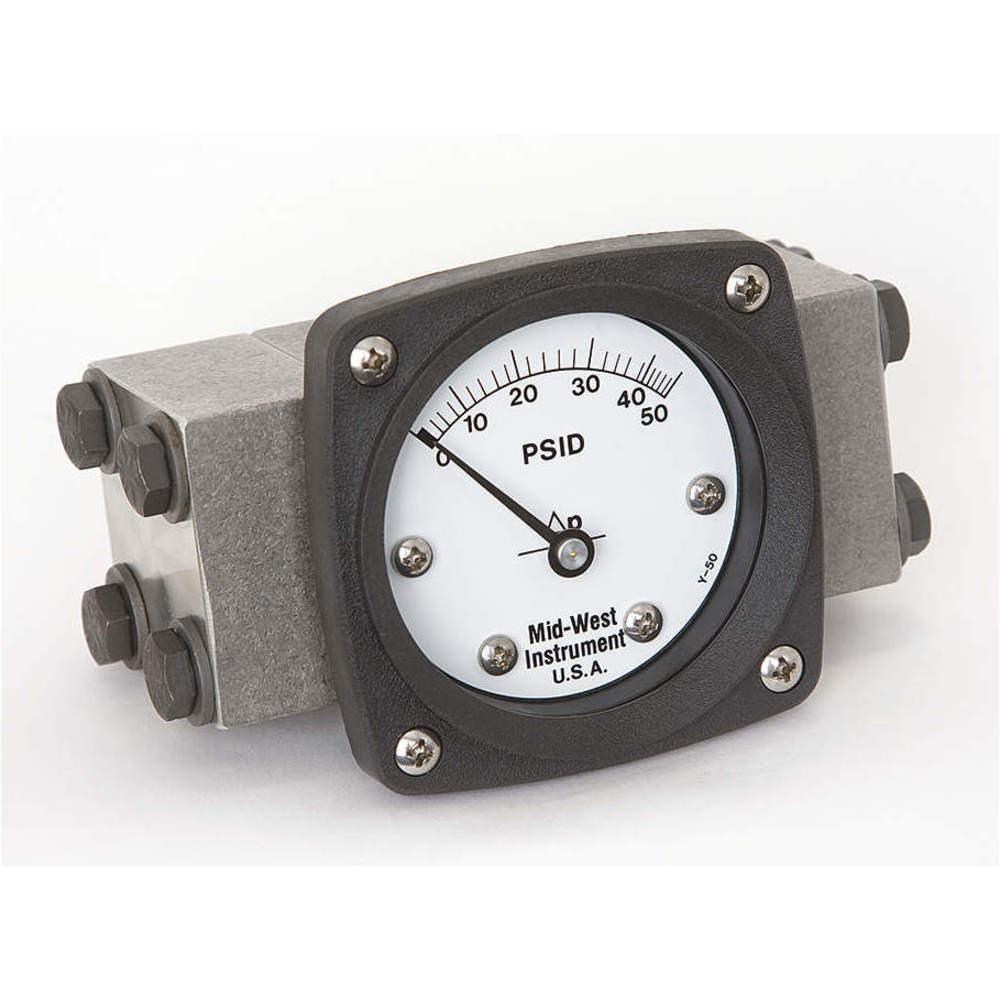

Mid-West 140-SA-00-OO-50P Differential Pressure Gauge with 316 Stainless Steel Body and 316 Stainless Steel Internals, Diaphragm Type, 3/2/3% Full Scale Accuracy, 2-1/2" Dial, 1/4" FNPT Back Connection, 0-50 psid Range, 3000 psig SWP
- Brand: Mid-West Instrument
- PartNumber: 140-SA-00-OO-50P
- Model: 140-SA-00-OO
- Size: 0-50 psid
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Mid-West Instrument
- Label: Mid-West Instrument
Attributes
| Key | Value |
|---|
| (Hidden) max pressure d. | 3,000 psig x For High O. |
| (Hidden) Series x Accur. | +/-3-2-3% x 140 |
| Accuracy | ?3-2-3%, +/-3-2-3% |
| Accuracy Grade | ASME B40.1 Grade B |
| Adjustable Set Points | Yes |
| Ambient Operating Tempe. | -40? to 200?F, -40 Degr. |
| Application | Compressors, Filtration. |
| Application - Max Press. | For High Operating Pres. |
| Basic Gauge Case Materi. | Metal |
| Basic Gauge Wetted Parts | Buna-N |
| Bezel Gasket Material | Buna-N |
| Blowout Safety Back | No |
| Body Material | 316 Stainless Steel |
| Bolt Circle Diameter | 3.5 in |
| Brand | MIDWEST INSTRUMENT |
| Brand and Series | MIDWEST INSTRUMENT 140 |
| Case Construction | Glass Reinforced |
| Case Depth | 0.78 in |
| Case Diameter | 3.37 in |
| Case Material | 316 Stainless Steel |
| Case Shape | Round |
| Connection Location | Back |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Dial Color | White |
| Dial Material | Engineered Plastic |
| Diaphragm Material | Buna-N |
| Differential Gauge Conn. | 1/4 in |
| Differential Gauge Conn. | FNPT |
| Differential Pressure G. | Differential Pressure G. |
| Differential Pressure R. | 0 to 50 psi |
| Differential Pressure R. | psi |
| Differential Pressure R. | 0 to 50 |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Case Material | 316 Stainless Steel |
| Gauge Connection Locati. | Back |
| Gauge Nominal Dial Size | 2 1/2 in |
| Gauge Operating Temp. R. | -40 Degrees to 200 Deg. |
| Gauge Primary Range Sma. | 2 |
| Hazardous Location Rati. | Not Rated |
| Housing Material | 316 Stainless Steel |
| Includes | Instructions |
| Includes Calibration Ce. | No |
| Includes Mounting Hardw. | No |
| Includes Vent Plug | No |
| IP/NEMA Rating | IP65; NEMA 4X, IP65, NE. |
| Item | Differential Pressure G. |
| Item? | 3GVF8 |
| Manufacturer Part Number | 140-SA-00-OO-50P |
| Manufacturer Warranty L. | 5 yr |
| Manufacturers Warranty . | 5 yr |
| Max Pressure Application | For High Operating Pres. |
| Maximum Working Static . | 3,000 psig |
| Mfr. Model? | 140-SA-00-OO-50P |
| Mounting Type | Panel-Mount |
| Movement Material | 316 Stainless Steel |
| Movement Type | Rotary |
| Nominal Dial Size | 2-1/2 in, 2 1/2 in |
| Non-Sparking | No |
| Panel Mount Characteris. | 3 L Dia Holes on E Dia . |
| Panel-Mountable | Yes |
| Pressure Gauge Type | Differential Pressure G. |
| Pressure Range | 0 to 50 psid |
| Primary Scale Minor Gra. | 2 |
| Process Connection | 1/4 in NPT Female |
| Process Connection Gend. | Female |
| Process Connection Loca. | Back |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Ran. | -40? to 200?F, -40 Degr. |
| Rated Total Pressure | 3000 PSI, 3,000 psi |
| Removable Bezel | No |
| Repeatability | 1% |
| Scale Type | Pressure |
| Seal Material | Buna-N |
| Sensor Material | Buna-N |
| Sensor Type | Diaphragm |
| Series | Series 140, 140 |
| Standards | ASME B1.20.1, ASME B40.. |
| UNSPSC | 41112403 |
| Wetted Parts Material | PTFE/Buna-N |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Grainger | 3GVF8 | 609.93 | 1 | In Stock | | MIDWEST INSTRUMENT | | 609.93 @ 1 |
 | Zoro | G0017604 | 644.21 | 1 | In Stock | 15 | Midwest Instrument | 5.3 | 644.21 @ 1 |
 | Raptor Supplies | AC9JJT | 964.71999 | 1 | In Stock | | MIDWEST INSTRUMENTS | | 964.71999 @ 1 |
