- mpn39-31-0040
- brandname: Molex Incorporated
- manufacturername: Molex Incorporated

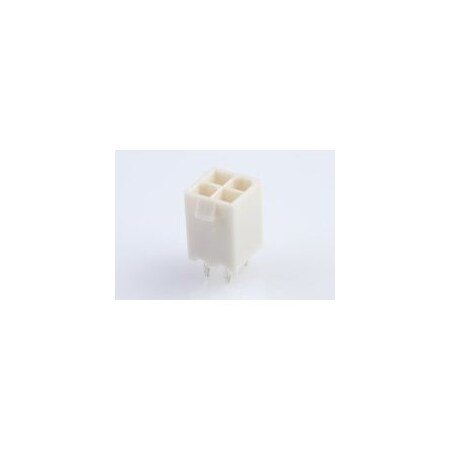

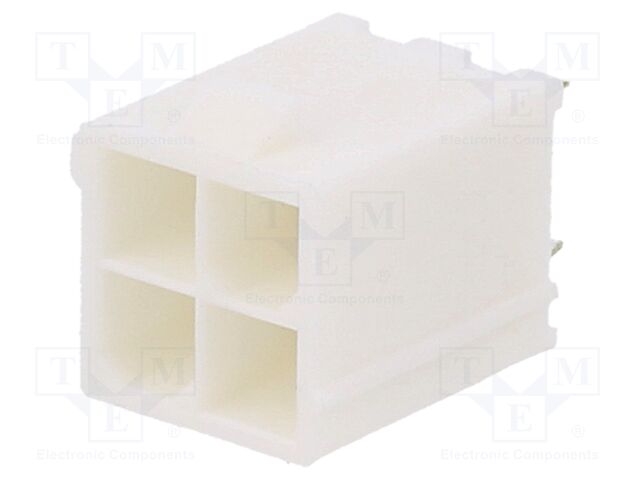

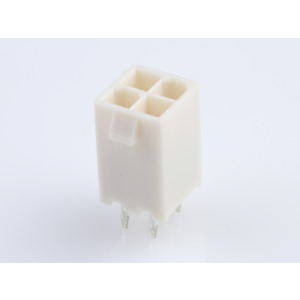

0039310040 Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Mini-Fit Jr Bag, (50 Items)
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 5566-04B-210 |
| Alternate Part No. | 538-39-31-0040 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Natural |
| Connector Type | Male Pin |
| Contact Finish | Tin Plated |
| Contact Finish - Mating | 35.4?in (0.90?m) |
| Contact Finish - Post | Brass |
| Contact Finish Thicknes. | Tin |
| Contact Finish Thicknes. | General Purpose, Indust. |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | 0.138" (3.50mm) |
| Contact Length - Post | - |
| Contact Material | Brass, Polyamide (PA66). |
| Contact Plating | Tin |
| Contact Plating Thickne. | 0.889 ?m |
| Contact Shape | Tin |
| Contact Type | 0.165" (4.20mm) |
| Current Rating | 9 A |
| Current Rating (Amps) | - |
| Family Name | Mini-Fit Jr. |
| Fastening Type | - |
| Features | - |
| Flammability Rating | UL 94V-0 |
| Hole Center to Center | 4.2 mm |
| Housing Material | Nylon |
| Ingress Protection | UL94 V-0 |
| Insulation Color | - |
| Insulation Height | Square |
| Insulation Material | - |
| Manufacturer | Molex |
| Manufacturer Part No. | 39-31-0040 |
| Mated Stacking Heights | 35.0?in (0.90?m) |
| Material | Nylon |
| Material Flammability R. | Natural |
| Max. Temp. | 240?C |
| Max. Voltage | 600V |
| Mfr | Molex |
| Mounting Angle | Vertical |
| Mounting Type | Solder |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 2, 4 |
| Number of Positions Loa. | Board to Cable/Wire |
| Number of Rows | 2, 0.165" (4.20mm) |
| Operating Temperature | - |
| Orientation | Vertical |
| Overall Contact Length | 0.504" (12.80mm) |
| Package | Active |
| Package Quantity | 1 |
| Packaging | Bulk |
| Part # Aliases | 0039310040 A556604B210 |
| Part Status | Header |
| Pitch | 4.2 mm, 4.20 mm (0.165") |
| Pitch - Mating | 4 |
| Plating Material | Tin |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Type | Header Assemblies |
| Row Spacing | 5.5 mm |
| Row Spacing - Mating | All |
| Series | Bulk, 5566, 5566 Series |
| Shrouding | Through Hole |
| Special Features | Low-Halogen |
| Standards | CSA Certified; UL E29179 |
| Style | Shrouded - 4 Wall |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Locking Ramp |
| Termination Style | Through Hole |
| Tradename | Mini-Fit Jr. |
| Type | Header, Pin Header |
| Voltage Rating | -, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Waldom | MOLEX 39-31-0040 | 0.41 | 150 | 4616 | | MOLEX | | 0.41 @ 150 |
| Power and Signal Group | 0039310040 | 0.4269 | 5600 | 234 | | Molex | | 0.4269 @ 5600 |
| Onlinecomponents.com | 39-31-0040 | 0.515 | 70 | 4611 | | Molex | | 0.515 @ 70 |
 | jensentools.com | 10188583 | 0.55 | 1 | 4616 | | Molex | | 0.55 @ 1 |
 | NEP Electronics | 39-31-0040 | 0.5735 | 150 | 4616 | | Molex | | 0.5735 @ 150 |
| Avnet | 0039310040 | 0.784 | 1 | 9500 | | Molex | | 0.784 @ 1 |
 | Digi-Key | WM2845-ND | 0.86 | 1 | 116 | | Molex | | 0.86 @ 1 |
 | Newark | 56H8421 | 0.934 | 1 | 1500 | | MOLEX | | 0.934 @ 1 |
| us.rs-online.com | 70375170 | 1.01 | 1 | 99 | | Molex Incorporated | | 1.01 @ 1 |
 | TME | MX-39-31-0040 | 1.259 | 10 | 41 | | MOLEX | | 1.259 @ 10 |
| RS Delivers | 797-9082 | 1.2684 | 1 | 235 | | Molex | | 1.2684 @ 1 |
 | Radwell | 39-31-0040 | 1.8 | 1 | 99 | | MOLEX | | 1.8 @ 1 |
 | swatee.com | 39-31-0040 | 1.96 | 1 | 1314 | | Molex | | 1.96 @ 1 |
| AmazonTP | B07QPC7PJX | 57.17 | 1 | 99 | 1 | Molex / Waldom | | 57.17 @ 1 |
 | Zoro | G4037850 | 114.0 | 150 | In Stock | | Molex | | 114.0 @ 150 |
