- mpnD44H8G
- brandname: ON Semiconductor
- manufacturername: ON Semiconductor

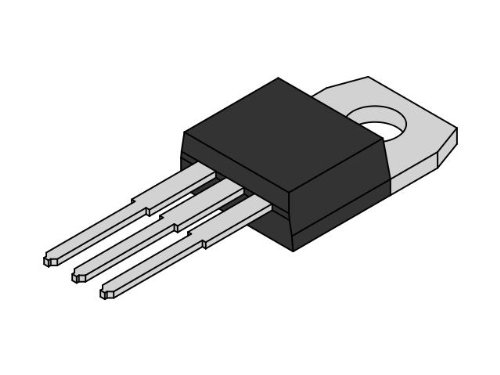

Transistors Bipolar - BJT 10A 60V 50W NPN
- Brand: ON Semiconductor
- PartNumber: D44H8G
- Manufacturer: ON Semiconductor
- Label: ON Semiconductor
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 5450163 |
| Base Product Number | D44H8 |
| Case | TO220AB |
| Category | Discrete Semiconductor . |
| Collector Current | 10 A |
| Collector current | 10A |
| Collector to Emitter Vo. | 60 V |
| Collector-emitter volta. | 60V |
| Configuration | Common Base |
| Current - Collector (Ic. | 10 A |
| Current - Collector Cut. | 10?A |
| DC Current Gain (hFE) (. | 40 @ 4A, 1V |
| Dimensions | 10.28 x 4.82 x 15.75 mm |
| Emitter to Base Voltage | 5 V |
| Frequency - Transition | 50MHz |
| Height | 0.62" (15.75mm) |
| Kind of package | tube |
| Length | 0.404 in |
| Manufacturer | ONSEMI |
| Material | Si |
| Maximum Operating Tempe. | +150 ?C |
| Mfr | ONSEMI |
| Minimum Operating Tempe. | -55 ?C |
| Mounting | THT |
| Mounting Type | Through Hole |
| Number of Elements per . | 1 |
| Number of Pins | 3 |
| Operating Frequency | 50 MHz |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Package | tube |
| Package / Case | TO-220-3 |
| Package Type | TO-220 |
| Part Status | Active |
| Polarisation | bipolar |
| Polarity | NPN |
| Power - Max | 2 W |
| Power dissipation | 50W |
| Power Dissipation | 70 W |
| Primary Type | Si |
| Product Header | Complementary Silicon P. |
| Resistance, Thermal, Ju. | 62.5 ?C/W |
| Series | D44 Series, - |
| Supplier Device Package | TO-220 |
| Temperature Operating R. | -55 to +150 ?C |
| Transistor Type | NPN |
| Type | Power |
| Type of transistor | NPN |
| Vce Saturation (Max) @ . | 1V @ 400mA, 8A |
| Voltage - Collector Emi. | 60 V |
| Voltage, Breakdown, Col. | 60 V |
| Voltage, Collector to E. | 1 V |
| Voltage, Saturation, Ba. | 1.5 V |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Future Electronics | 3922135 | 0.57 | 1250 | 210 | | ON Semiconductor | | 0.57 @ 1250 |
| Verical | D44H8G | 0.642 | 17 | 200 | | ON Semiconductor | | 0.642 @ 17 |
| us.rs-online.com | 70100112 | 0.74 | 25 | 135 | | ON Semiconductor | | 0.74 @ 25 |
| Win Source | D44H8G | 0.776 | 65 | 200 | | ON Semiconductor | | 0.776 @ 65 |
 | Newark | 71J3833 | 0.877 | 450 | 114 | | ONSEMI | | 0.877 @ 450 |
 | TME | D44H8G | 0.94 | 1 | 114 | | ONSEMI | | 0.94 @ 1 |
| Digi-Key | 918449 | 1.449 | 1000 | 236 | | onsemi | | 1.449 @ 1 |
| RS Delivers | 545-0163 | 1.572 | 1 | 3 | | onsemi | | 1.572 @ 1 |
