- mpnMJ15003G
- brandname: ON Semiconductor
- manufacturername: ON Semiconductor

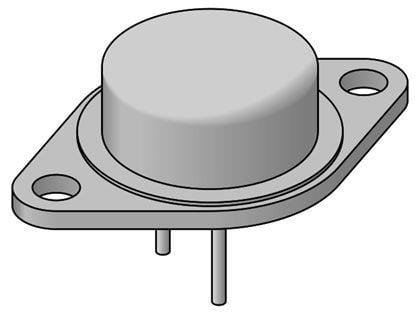

Transistors Bipolar - BJT 20A 140V 250W NPN (5 pieces)
- PartNumber: MJ15003G
- Size: 5 Piece
- PackageQuantity: 5
- Manufacturer: ON Semiconductor
- Label: ON Semiconductor
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 296267 |
| Base Product Number | MJ15003 |
| Case | TO3 |
| Case Style | TO-3 |
| Category | Discrete Semiconductor . |
| Collector Capacitance (. | 1000 pF |
| Collector Current | 20 A |
| Collector to Base Volta. | 140 V |
| Collector to Emitter Vo. | 140 V |
| Configuration | Common Base |
| Current | 20 |
| Current - Collector (Ic. | 20 A |
| Current - Collector Cut. | 250?A |
| DC Current Gain (hFE) (. | 25 @ 5A, 2V |
| Dimensions | 39.37 x 8.51 x 26.67 mm |
| Emitter to Base Voltage | 5 V |
| Forward Current Transfe. | 25 |
| Frequency - Transition | 2MHz |
| Height | 1.05" (26.67mm) |
| Length | 1.55 in |
| Manufacturer | On Semiconductor |
| Manufacturer Part # | MJ15003G |
| Material | Si |
| Max. Operating Junction. | 200 ?C |
| Maximum Collector Curre. | 20 A |
| Maximum Collector Power. | 250 W |
| Maximum Collector-Base . | 140 V |
| Maximum Collector-Emitt. | 140 V |
| Maximum Emitter-Base Vo. | 5 V |
| Maximum Operating Tempe. | +200 ?C |
| Mfr | onsemi |
| Minimum Operating Tempe. | -65 ?C |
| Mounting Type | Through Hole |
| Number of Elements per . | 1 |
| Number of Pins | 2 |
| Operating Frequency | 2 MHz |
| Operating Temperature | -65?C ~ 200?C (TJ) |
| Package | Tray |
| Package / Case | TO-204AA, TO-3 |
| Package Type | TO-204AA |
| Part Status | Active |
| Polarity | NPN, Bipolar NPN |
| Power - Max | 250 W |
| Power Dissipation | 250 W |
| Primary Type | Si |
| Product Header | Complementary Silicon P. |
| Resistance, Thermal, Ju. | 0.7 ?C/W |
| Series | -, Transistor Series |
| SKU | 390426 |
| Supplier Device Package | TO-204 (TO-3) |
| Temperature Operating R. | -65 to +200 ?C |
| Transistor Type | NPN |
| Transition Frequency (f. | 2 MHz |
| Type | Transistor Silicon NPN,. |
| Vce Saturation (Max) @ . | 1V @ 500mA, 5A |
| Voltage (V) | 140 |
| Voltage - Collector Emi. | 140 V |
| Voltage, Breakdown, Col. | 140 V |
| Voltage, Collector to E. | 1 V |
| Watts | 250 |
| Weight (lbs) | (0.01) |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| MCM Electronics | 123-MJ15003G | 3.6 | 1 | 27 | | On-Semiconductor | | 3.6 @ 1 |
| Hotenda | H2049181 | 4.01 | 1 | 2052 | | ON Semiconductor | | 4.01 @ 1 |
 | BD Enterprises | MJ15003G | 5.59 | 1 | In Stock | | On Semiconductor | 0.01 | 5.59 @ 1 |
| Future Electronics | 9750555 | 6.024 | 1 | 396 | | ON Semiconductor | | 6.024 @ 1 |
| Avnet | 26K4513 | 8.05 | 1 | In Stock | | ON Semiconductor | | 8.05 @ 1 |
 | Newark | 38K5635 | 8.08 | 1 | 527 | | ONSEMI | | 8.08 @ 1 |
| Mouser | 863-MJ15003G | 8.15 | 1 | 2053 | | ON Semiconductor | | 8.15 @ 1 |
| Digi-Key | 919449 | 8.16 | 500 | 2233 | | onsemi | | 8.16 @ 1 |
| AmazonSC | B00DEDBCUC | 8.91 | 1 | In Stock | | ON Semiconductor | | 8.91 @ 1 |
| AmazonTP | B00DEDBCUC | 10.05 | 1 | In Stock | 2 | ON SEMICONDUCTOR | | 10.05 @ 1 |
| us.rs-online.com | 70099991 | 12.89 | 1 | In Stock | | ON Semiconductor | | 12.89 @ 1 |
| RS Delivers | 296-267 | 12.9 | 1 | 717 | | onsemi | | 12.9 @ 1 |
| Little Diode | MJ15003G | 17.8217325 | 1 | 1 | | ON Semiconductor | | 17.8217325 @ 1 |
