Square D 9080GD6

B000E2TY74

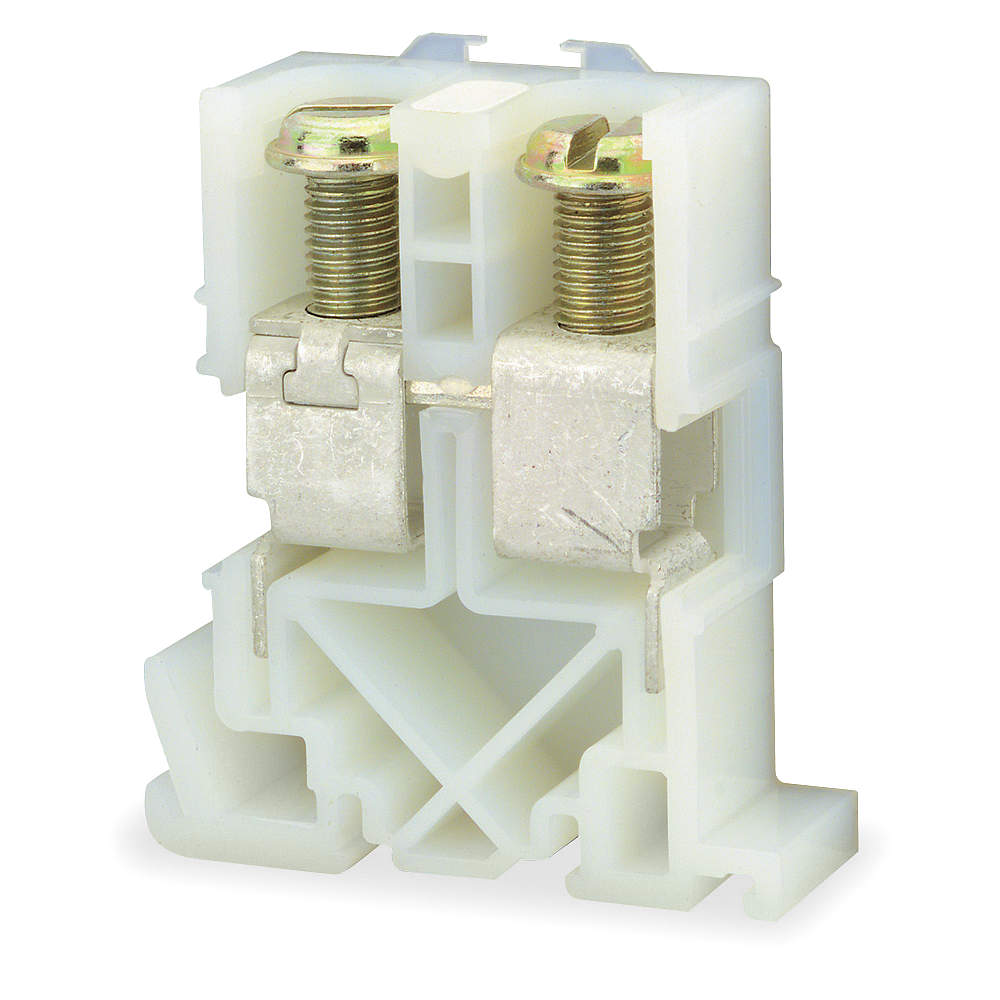

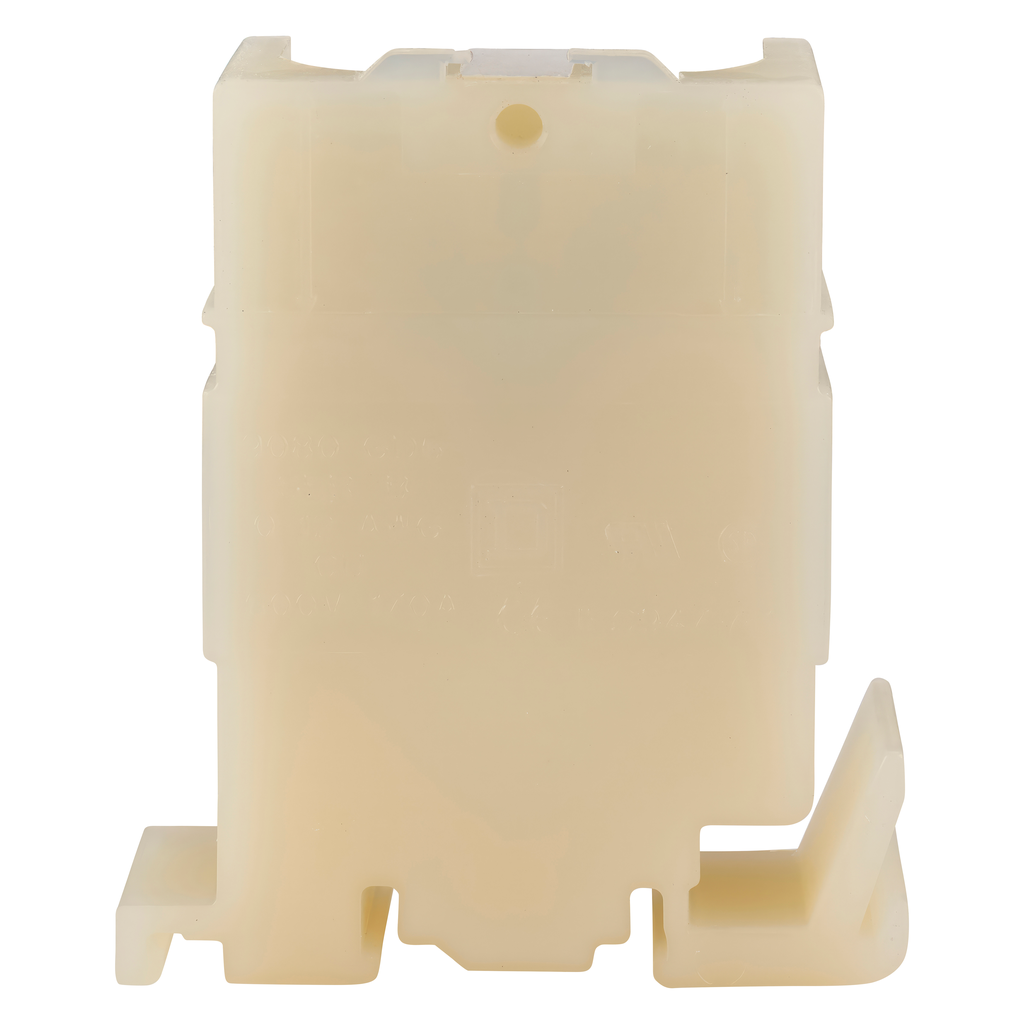

Square D SQD9080GD6 SQ D 9080GD6 TERMINAL BLOCK 600V, Black

Square D SQD9080GD6 SQ D 9080GD6 TERMINAL BLOCK 600V, Blackzoom

Attributes

Key Value
2-Pole Jumper Compatibi.2DD03
6-Pole JumpersMfr. No. 9080GH77
[Ue] Rated Operational .600 V AC/DC
Ambient Air Temperature.-40-257 ?F
Amps180 A
Application9080G,GD6B
Awg GaugeAWG 12...AWG 1/0 copper
Block MaterialNylon
BrandSquare D, Square D by S.
California Proposition .Lead and lead compounds.
Catalog Number9080GD6
CategoryConnectors, Interconnec.
Channel Size35mm/GH
China Rohs RegulationPro-active China RoHS d.
Circuit Protection TypeNone
Colornatural
Color Familynatural
Compatible Grainger Par.2DC88, 2DC90, 2DC94, 2D.
Compatible Manufacturer.9080 GH32, GD6B, GH10, .
ConnectionLug tin plated steel 45.
Connection TypeScrew Clamp
Connections - Terminals.AWG 12...AWG 1/0 copper)
Country of OriginMexico, 00 - Unknown
Current180 A
Current - UL180 A
Depth2.12 in, 0.7 in
DescriptionTERMINAL BLOCK 600V 170.
Detailed DescriptionTerminal Block Connecto.
Digi-Key Part Number4008-9080GD6-ND
Disconnect Type-
ECCNEAR99
Electrical Connectiontin plated steel box lu.
End Barrier Compatibili.5B376
Eu Rohs DirectiveCompliant
Features-
For Channel Rail Size35 mm
For Conductor MaterialCopper
For Conductor TypeSolid, Stranded
For Fuse Diameter3 1/32 in
For Maximum Wire Size1/0 AWG
For Minimum Wire Size12 AWG
Fuse Type-
Gtin00785901155027
Height2.71 in
Housing Colournatural
Housing MaterialNylon
IncludesAdhesive Backed Strips,.
ItemTerminal Block
Item TypeTerminal block;GD6B
Line Rated Current180-180 A UL || 170-170.
Localisation On Devicestandard
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9080GD6
Manufacturer Standard L.1 Weeks
MaterialNylon block;Tin plated .
Material - InsulationPolyamide (PA), Nylon
Material Flammability R.-
Max. Wire Size1/0
Maximum Operating Tempe.257 Degrees F
Maximum Voltage600V AC/DC
Mercury FreeYes
MfrSchneider Electric
Min. Wire Size12 AWG
Minimum Operating Tempe.-40 Degrees F
MountingDin Rail
Mounting Support35 mm DIN rail || 9080G.
Mounting TypeDIN
Mpn9080GD6
Number of Connections2
Number of Levels1
Number of Poles1
Number of Positions2
Number Of Terminal Bloc.17 per foot
Number of Tiers2
Overall Depth0.7 in
Overall Length2.71 in
Overall Width2.12 in
PackageBox
Pieces per Foot17
Product CertificationsUL recognized E60616 CC.
Product CompatibilityGD6B
Product Or Component Ty.Terminal Block
Product StatusActive
Pvc FreeYes
Quantity Per Setset of 10
Range Of Product9080G
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
RoHS CompliantYes
Rohs Exemption Informat.Yes
SeriesSquare D, 9080G
Size0.7
Special Featuresset of 10
StandardUL recognized E60616 CC.
StandardsUL94V2, CE, CSA Approve.
Stripping Length-
Terminal - Width17.0mm
Terminal Block TypeSolderless Box Lug
Terminal MaterialTin Plated Steel
Terminal TypePass-Through
Termination StyleScrew
Torque50 lb-in
Toxic Heavy Metal FreeYes
TypeFeed Through
UL 94 Flammability Rati.V-2
UNSPSC39121410
Upc785901155027
UPC785901155027
Voltage600V AC
Voltage - IEC-
Voltage - UL600V
Voltage Rating600 V AC/DC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width2.12 in, 0.7 in
Wire Gauge or Range - A.4-18 AWG
Wire Gauge or Range - m.-
Wire SizeAWG 12...AWG 1/0 copper
Wire Size Ranges12 AWG - 1/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.com9080GD65.781In StockSquare D5.78 @ 1
thumbzoomNewark17B32449.9810In StockSQUARE D BY SCHNEIDER ELECTRIC9.98 @ 10
thumbzoomZoroG190026310.251451Square D0.1410.25 @ 1
thumbzoommayerelectric.comSQD9080GD610.951In StockSQUARE D10.95 @ 1
Graybar8825026712.90241In StockSquare D (Schneider Electric)12.9024 @ 1
thumbzoommostelectric.com9080GD613.02123SQUARE D/TELEMECANIQUE13.02 @ 1
thumbzoomDigi-Key1715844813.22510In StockSchneider Electric13.225 @ 10
us.rs-online.com7219493314.4217Square D14.42 @ 1
thumbzoomsustainablesupply.comC268170216.271In StockSquare D0.1416.27 @ 1
thumbzoomcrescentelectric.com12551217.4111Square D by Schneider Electric17.41 @ 1
thumbzoomRaptor SuppliesAG7CHP19.45306351In StockSQUARE D19.4530635 @ 1
thumbzoomNational Supply Network6968245825.041In StockSquare D25.04 @ 1
grainger.caSQD9080GD626.934660661In StockSQUARE D0.1426.93466066 @ 1

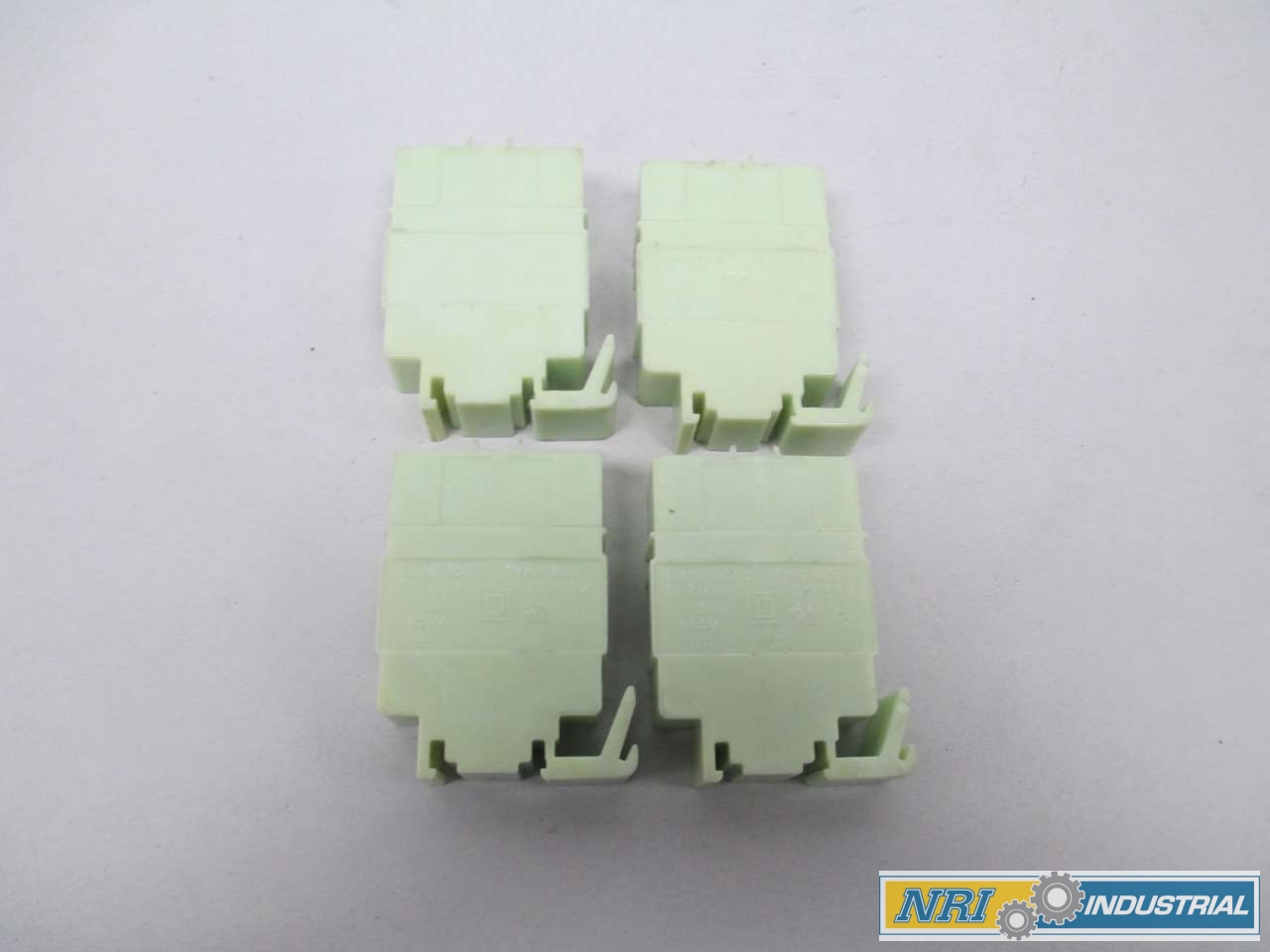

thumbzoomNRI IndustrialD36899638.021In StockSQUARE D38.02 @ 1
standardelectricsupply.com212053896.81In StockSquare D96.8 @ 1
