- mpnBK45118
- brandname: TB Woods
- manufacturername: TB Woods

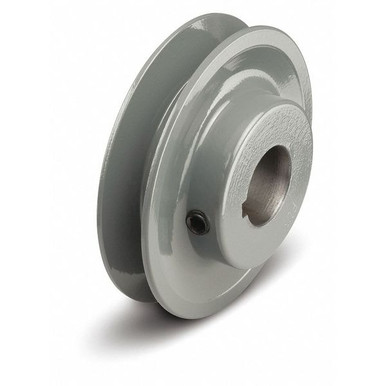

TB Woods BK45118 FHP Bored-to-size V-Belt Sheave, B Belt Section, 1 Groove, 1-1/8" Bore, Cast Iron, 4.25" OD, 5890 max rpm
- Brand: TB Woods
- PartNumber: BK45118
- Model: 698672131377
- Color: Grey
- Size: 5890 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 3.88 in |
| 4L, A, or AX Belt Pitch. | 3.5 in |
| 5L Pitch Diameter | 4.313 in |
| 5L, B, or BX Belt Pitch. | 3.9 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 3.88 in |
| AX Pitch Diameter | 3.88 in |
| B Pitch Diameter | 4.313 in |
| Belt section | B-5L-A-4L |
| Belt Section Size | 4L ; 5L ; A ; B |
| Bore Diameter | 1 1/8 in, 1-1/-8 in |
| Bore type | Finished with keyway |
| Bore Type | Fixed |
| Bore-to-size bore diame. | 1.13 |
| Bore-to-size keyseat | 1/4 in x 1/8 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | 4.313 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.02 |
| Construction | web |
| Current Stock | 47 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 3.9 |
| Dimension | 0.44 |
| Face Width | 0.88 in |
| Face width | 0.88 |
| Face width (in) | 0.88 |
| Fits Shaft Dia. | 1-1/8 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX |
| For V-Belt Section | 4L, 5L, A, AX, B, BX |
| For V-Belt Type | Classical, Cogged |
| Groove cross section se. | B |
| Hub location | -0.44 |
| Hub location (in) | -0.44 |
| Hub Projection | 0.44 in |
| Hub Type | One Side |
| I.D. | 3.75 |
| Includes | Set Screw |
| Industry Number | BK45118 |
| Inertia WR? | 3 |
| Inside diameter (in) | 3.75 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway | Yes |
| Keyway Depth | 1/8 in |
| Keyway Size | 0.250" x 0.125" |
| Keyway Size Type | 0.250 in x 0.125 in |
| Keyway Width | 1/4 in |
| Length through Bore | 1 3/16 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 5890 |
| Maximum Bore Diameter | 1 1/8 in |
| Mpn | BK45118 |
| Number of grooves | 1 |
| Number of Grooves | 1 |
| O.D. | 4.25 |
| Outer Diameter | 4.25 in |
| Outside Diameter | 4.25 in |
| Outside diameter (in) | 4.25 |
| Overall Width | 1 5/16 in |
| Pitch Diameter | 4.31 in |
| Pitch diameter | 4.31 |
| Pitch Diameter for V-Be. | 4L: 3.88 in / 5L: 4.313. |
| Pulley Bore Dia. | 1 1/8 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Webbed |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 4.25 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 5890 |
| Series | FHP BK |
| Set Screw Included | Yes |
| SKU | ZO-G2118846 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672131377 |
| UPC Code | 698672131377 |
| Weight | 2 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | WWG5UHD1 | 24.72821042 | 1 | In Stock | | TB WOOD'S | 2.13 | 24.72821042 @ 1 |
 | Zoro | G2118846 | 29.25 | 1 | 88 | | Tb Woods | 2.13 | 29.25 @ 1 |
 | simsupply.com | ZO-G2118846 | 34.08 | 1 | 47 | | Tb Woods | | 34.08 @ 1 |
 | National Supply Network | 82222274 | 35.81 | 1 | In Stock | | TB Wood's | | 35.81 @ 1 |
 | sustainablesupply.com | C2682691 | 43.74 | 1 | In Stock | | TB Wood's | 2.13 | 43.74 @ 1 |
 | bscsource.com | BK45118 | 45.89 | 1 | In Stock | | TB Wood's | | 45.89 @ 1 |
 | MRO Supply | 346066 | 49.51 | 2 | In Stock | | TB Woods | | 49.51 @ 2 |
| us.rs-online.com | 71734428 | 56.01 | 1 | In Stock | | TB Wood's (Altra) | | 56.01 @ 1 |
 | Raptor Supplies | AE6PLB | 58.7167425 | 1 | In Stock | | TB WOODS | | 58.7167425 @ 1 |
