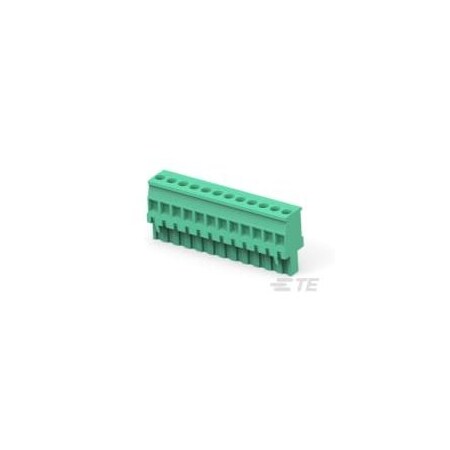

TE Connectivity 1-284047-2

mpn1-284047-2
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 1-284047-2

TE Connectivity Part Number 1-284047-2

zoom

Brand: TE Connectivity
PartNumber: 1-284047-2
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applies To	Wire/Cable
Base Product Number	284047
Block Type	None
Category	Connectors, Interconnec.
Centerline	5.08 mm [ .2 in ]
Color	Green
Connector Style	Plug
Contact Base Material	Phosphor Bronze
Contact Material	Phosphor Bronze
Contact Mating Area Pla.	Tin
Contact Mating Finish	Tin
Contact Tail Length	-
Current - IEC	-
Current - UL	15 A
Current Rating (Max) (A)	15
Description	TERM BLOCK PLUG 12POS 5.
Detailed Description	12 Position Terminal Bl.
Digi-Key Part Number	A112020-ND
Features	Retention Latches (Wire.
Header Orientation	-
Housing Color	Green
Housing Material	PA 6.6, Polyamide (PA66.
Ingress Protection	-
Insulation Height	0.984" (25.00mm)
Interlock	Without
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	1-284047-2
Manufacturer Standard L.	17 Weeks
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Angle	Vertical
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Number of Rows	1
Operating Temperature	-40?C ~ 110?C
Package	Bulk
Package Quantity	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	90?
Positions Per Level	12
Product Status	Active
Screw Flange	Without
Screw Material	Brass
Screw Plating Material	Nickel
Screw Size	M3
Screwless Terminal Block	No
Series	Buchanan
Side Stackable	Yes
Stacked Levels	Without
Termination Style	Screw - Rising Cage Cla.
Torque - Screw	0.79 Nm (7.0 Lb-In)
Type	Plug, Female Sockets
Voltage (VAC)	300
Voltage - UL	300 V
Wire Entry Angle	Side
Wire Gauge or Range - A.	12-30 AWG
Wire Gauge or Range - m.	0.05-3mm?
Wire Range	.05 to 3 mm? [ 30 to 12.
Wire Strip Length	6-7.5mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY AMP BRAND 1-284047-2	8.56	10	400		TE CONNECTIVITY/AMP BRAND		8.56 @ 10
	Newark	41AJ0633	10.77	200	396		AMP - TE CONNECTIVITY		10.77 @ 200
	Future Electronics	2530285	11.112	400	In Stock		TE Connectivity		11.112 @ 400
	Hotenda	H1542889	11.3	1	In Stock		TE Connectivity AMP Connectors		11.3 @ 1
	Digi-Key	2223044	11.47398	400	In Stock		TE Connectivity AMP Connectors		11.47398 @ 400
	Zoro	G600930094	112.9	1	In Stock		Te Connectivity		112.9 @ 1
