Cle-line C20676

mpnC20676
brandname: Cle-Line
manufacturername: Cle-Line

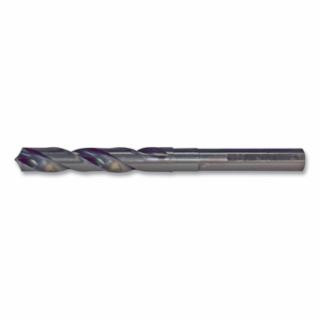

Cle-Line C20676 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 19/32" Drill Diameter

Cle-Line C20676 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 19/32" Drill Diameter

zoom

Brand: Cle-line
PartNumber: C20676
Model: C20676
Color: Black Oxide
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries (TEG)
Label: Greenfield Industries (TEG)

Attributes

Key	Value
Applicable Materials	Low Carbons, Stainless .
Application	For Alloy And Carbon St.
Coolant Fed	Non-Coolant Through
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.5938
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.5938"
Diameter (Fraction)	19/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Point Angle	118 Degrees
Drill Bit Size	19/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.5938 in
Drill Size - Fraction	19/32 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Black Oxide
Flute Length	3 1/8 in, 3.1250", 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Hand of Cut	Right
Hand of Spiral	Right
Item	Reduced Shank Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	M42
Maximum Drilling Depth	2 3/8 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Primary Material Applic.	K, P
Series	1892
Shank Configuration	Reduced w/ 3 Flats
Shank Dia.	1/2 in
Shank End Feature	3 Flats
Shank End Feature Length	0.8750"
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	0.5498"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Reduced/Round
Shank Type - Machining	Straight
SKU	C20676
Style	1892
Surface Condition	Steam Oxide
Tool Size	19/32"
Type	General Purpose
UPC	6.97334E+11

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	C20676	13.42	1	In Stock		Cle-Line		13.42 @ 1
	heavydutydepot.com	C20676	13.42	8	In Stock		Cle-Line		13.42 @ 8
	Global Industrial	WBB2544316	14.5	1	In Stock		Cle-Line		14.5 @ 1
	usmegastore.com	C20676	16.17	1	In Stock		Cle-Line		16.17 @ 1
	MRO Supply	6123943	18.07	3	In Stock		Cle-Line		18.07 @ 3
	Zoro	G4953929	18.1	1	76		Cle-Line	0.32	18.1 @ 1
	imsbolt.com	C20676	31.88	1	In Stock		CLE-LINE		31.88 @ 1
