- mpnC20685
- brandname: Cle-Line
- manufacturername: Cle-Line

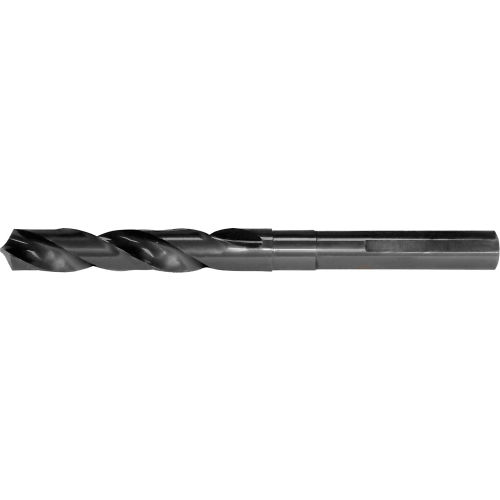

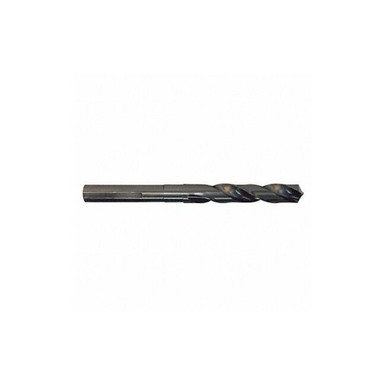

Cle-Line C20685 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Flatted Shank, 118-Degree Radial Point, 47/64" Drill Diameter
- Brand: Cle-Line
- PartNumber: C20685
- Model: C20685
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Low Carbons, Stainless . |
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 37 |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.7344 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.7344" |
| Diameter (Fraction) | 47/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 47/64 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.7344 in |
| Drill Size - Fraction | 47/64 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 2 1/2 in |
| Mpn | C20685 |
| Number of Flutes | 2 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Cast Iron, Steel |
| Series | 1892 |
| Shank Configuration | Reduced w/ 3 Flats |
| Shank Dia. | 1/2 in |
| Shank End Feature | 3 Flats |
| Shank End Feature Length | 0.8750" |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.6904" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Reduced/Round |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | C20685, ZO-G4953761 |
| Style | 1892 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 47/64" |
| Type | General Purpose |
| UPC | 697334206859, 6.97334E+. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C20685 | 17.09 | 1 | In Stock | | Cle-Line | | 17.09 @ 1 |
 | heavydutydepot.com | C20685 | 17.09 | 6 | In Stock | | Cle-Line | | 17.09 @ 6 |
 | Global Industrial | WBB2544206 | 19.0 | 1 | In Stock | 14 | CLE-LINE | | 19.0 @ 1 |
 | Zoro | G4953761 | 19.95 | 1 | 57 | | Cle-Line | 0.4 | 19.95 @ 1 |
 | usmegastore.com | C20685 | 20.59 | 1 | In Stock | | Cle-Line | | 20.59 @ 1 |
| AmazonSC | B00J9MBTRS | 22.24 | 1 | In Stock | | Cle-line | | 22.24 @ 1 |
 | MRO Supply | 6123952 | 23.87 | 3 | In Stock | | Cle-Line | | 23.87 @ 3 |
 | simsupply.com | ZO-G4953761 | 29.0 | 1 | 37 | | Cle-Line | | 29.0 @ 1 |
 | imsbolt.com | C20685 | 40.47 | 1 | In Stock | | CLE-LINE | | 40.47 @ 1 |
