Cle-line C20746

mpnC20746
brandname: CLE-LINE
manufacturername: CLE-LINE

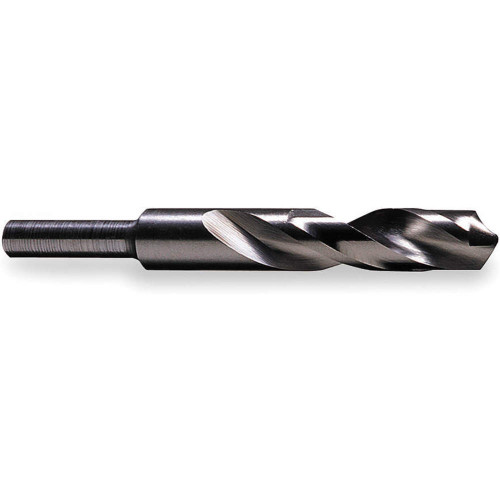

Silver/Deming Drill, 23/32, HSS, 118 Deg

Silver/Deming Drill, 23/32, HSS, 118 Deg

zoom

Brand: Cle-line
PartNumber: C20746
PackageQuantity: 1
Manufacturer: CLE-LINE
Label: CLE-LINE

Attributes

Key	Value
Applicable Materials	Iron Based Ferrous Meta.
Application	For Alloy And Carbon St.
Cutting Depth	3-1/8 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.7188
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.7188"
Diameter (Fraction)	23/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Size	23/32 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Size - Decimal In.	0.7188 in
Drill Size - Fraction	23/32 in
Drill Size System	Fractional
Drill Style	Silver & Deming Drill
Finish	Black Oxide
Flute Length	3 1/8 in, 3.1250", 3-1/.
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Grade	General Purpose
Hand of Cut	Right
Hand of Spiral	Right
Item	Reduced Shank Drill Bit
List Number	1813
Material	HSS
Maximum Drilling Depth	2 7/8 in
Number of Flutes	2
Number of Pieces	1
Overall Length	6.0000", 6 in
Overall Length (Metric)	152.40mm
Point Angle	118 deg, 118?
Point Style	Radial
Point Type	Radial
Series	1813
Shank Configuration	Reduced
Shank Dia.	1/2 in
Shank Length	2 1/4 in, 2.2500"
Shank Length (Metric)	57.15mm
Shank Neck Diameter	0.6748"
Shank Neck Length	0.5000"
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Round, Reduced
SKU	C20746
Style	1813
Surface Condition	Steam Oxide
Tool Size	23/32"
Type	General Purpose
UPC	6.97E+11
