- mpnC20761
- brandname: CLE-LINE
- manufacturername: CLE-LINE

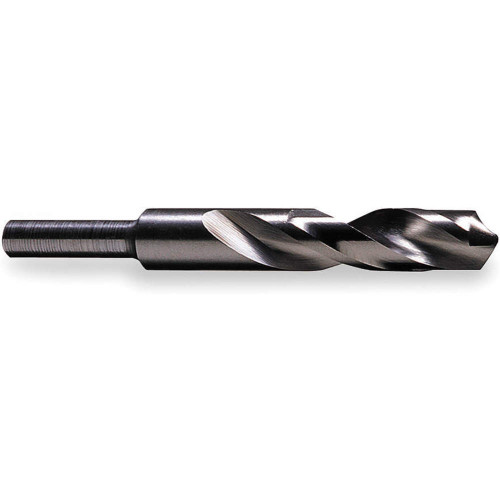

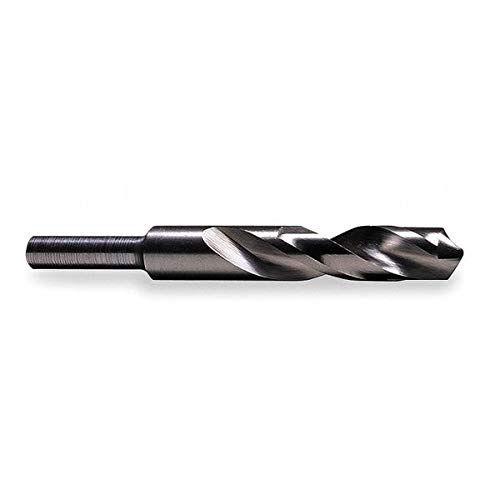

Silver/Deming Drill, 1 1/4, HSS, 118 Deg
- Brand: Cle-line
- PartNumber: C20761
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Iron Based Ferrous Meta. |
| Application | For Alloy And Carbon St. |
| Cutting Depth | 3-1/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.2500 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.2500", 1.25 |
| Diameter (Fraction) | 1-1/4" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1 1/4 in |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
| Drill Size - Decimal In. | 1.25 in |
| Drill Size - Fraction | 1-1/4 in |
| Drill Size System | Fractional |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 3-1/. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| List Number | 1813 |
| Material | HSS |
| Maximum Drilling Depth | 2 1/2 in |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 6.0000", 6 in |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Conventional Point, Rad. |
| Series | 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank Length | 2 1/4 in, 2.2500" |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 1.2060" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 0.5, 1/2 in |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Reduced, Round |
| SKU | C20761 |
| Style | 1813 |
| Surface Condition | Steam Oxide |
| Tool Size | 1-1/4" |
| Type | General Purpose |
| UPC | 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | C20761 | 44.02 | 1 | In Stock | | Cle-Line | | 44.02 @ 1 |
 | heavydutydepot.com | C20761 | 44.02 | 3 | In Stock | | Cle-Line | | 44.02 @ 3 |
 | Global Industrial | WBB2543814 | 49.95 | 1 | In Stock | | Cle-Line | | 49.95 @ 1 |
 | usmegastore.com | C20761 | 53.47 | 1 | In Stock | | Cle-Line | | 53.47 @ 1 |
 | MRO Supply | 6124015 | 55.26 | 1 | In Stock | | Cle-Line | | 55.26 @ 1 |
 | Zoro | G0620846 | 62.35 | 1 | 158 | | Cle-Line | 1.1 | 62.35 @ 1 |
 | sustainablesupply.com | C1465088 | 73.44 | 1 | In Stock | | Cle-Line | 1.1 | 73.44 @ 1 |
 | Raptor Supplies | AB9CPD | 83.4101775 | 1 | In Stock | | CLE-LINE | | 83.4101775 @ 1 |
 | imsbolt.com | C20761 | 98.69 | 1 | In Stock | | CLE-LINE | | 98.69 @ 1 |
