- mpnC21084
- brandname: Cle-Line
- manufacturername: Cle-Line

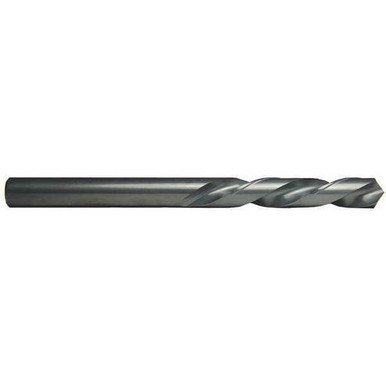

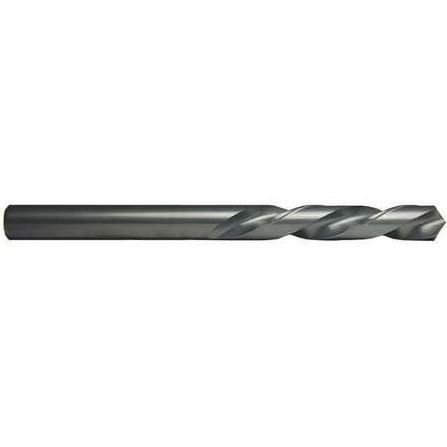

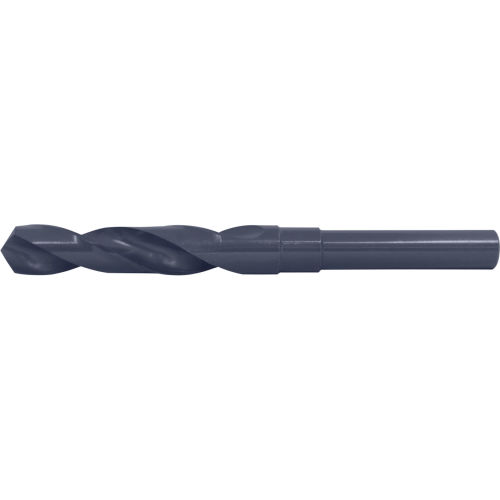

Cle-Line C21084 Silver and Deming Reduced Shank Drill, High Speed Steel, Steam Oxide Finish, Reduced Shank, 118-Degree Radial Point, 20.00 mm Drill Diameter
- Brand: Cle-line
- PartNumber: C21084
- Model: C21084
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Applicable Materials | Iron Based Ferrous Meta. |
| Application | For Alloy And Carbon St. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | United States |
| Current Stock | 22 |
| Cutting Depth | 79.38 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.7874 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.7874" |
| Diameter (Metric) | 20.00mm |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Black Oxide |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 20.00 mm |
| Drill Construction | General Purpose |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Size - Decimal In. | 0.0787 in |
| Drill Size - Metric | 2 mm |
| Drill Size System | Metric |
| Drill Style | Silver & Deming Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 3 1/8 in, 3.1250", 79.3. |
| Flute Length (Metric) | 79.38mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 3 1/8 in |
| Measurement System | Metric |
| Mpn | C21084 |
| Number of Flutes | 2 |
| Overall Length | 152.40 mm, 152.4 mm, 6.. |
| Overall Length (Metric) | 152.40mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1813M, 1813 |
| Shank Configuration | Reduced |
| Shank Dia. | 12.70 mm |
| Shank Length | 2.2500", 57.15 mm |
| Shank Length (Metric) | 57.15mm |
| Shank Neck Diameter | 0.7434" |
| Shank Neck Length | 0.5000" |
| Shank Size | 0.5000", 12.7 mm |
| Shank Size (Metric) | 12.70mm |
| Shank Type | Reduced |
| Shank Type - Machining | Straight |
| Silver & Deming Drill | Yes |
| SKU | C21084, ZO-G4958409 |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| Style | 1813M |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 20.00mm, 20mm |
| Type | General Purpose |
| UPC | 697334210849, 6.97E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543843 | 26.95 | 1 | In Stock | | Cle-Line | | 26.95 @ 1 |
 | Megadepot | C21084 | 28.87 | 1 | In Stock | | Cle-Line | | 28.87 @ 1 |
 | usmegastore.com | C21084 | 28.87 | 1 | In Stock | | Cle-Line | | 28.87 @ 1 |
 | heavydutydepot.com | C21084 | 28.87 | 4 | In Stock | | Cle-Line | | 28.87 @ 4 |
 | Zoro | G4958409 | 33.03 | 1 | In Stock | | Cle-Line | 0.17 | 33.03 @ 1 |
 | MRO Supply | 6124088 | 33.03 | 2 | In Stock | | Cle-Line | | 33.03 @ 2 |
 | simsupply.com | ZO-G4958409 | 41.23 | 1 | 22 | | Cle-Line | | 41.23 @ 1 |
 | imsbolt.com | C21084 | 54.44 | 1 | In Stock | | CLE-LINE | | 54.44 @ 1 |
