- mpnC23364
- brandname: Cle-Line
- manufacturername: Cle-Line

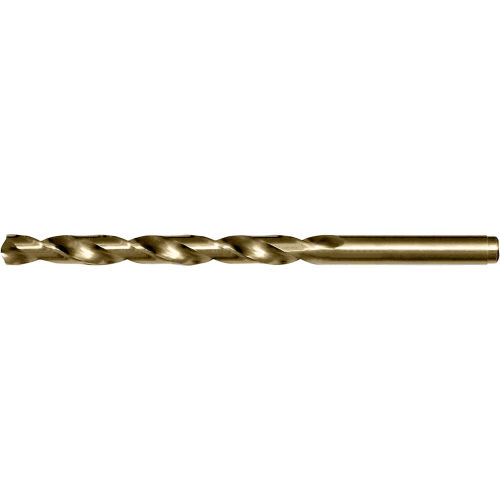

Jobber Drill Bit, Straw/Bronze, 23/64"Size
- Brand: Cle-line
- PartNumber: C23364
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 216 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.3594 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.3594" |
| Diameter (Fraction) | 23/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 23/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0744" |
| Drill Size - Decimal In. | 0.3594 in |
| Drill Size - Fraction | 23/64 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Flute Length | 3.5000", 3 1/2 in, 3-1/. |
| Flute Length (Metric) | 88.90mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Material | M42 HSS-Co 8%, Cobalt, . |
| Maximum Drilling Depth | 2 5/8 in |
| Mpn | C23364 |
| Number of Flutes | 2 |
| Overall Length | 4 7/8 in, 4-7/8 in, 4.8. |
| Overall Length (Metric) | 123.82mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 23/64 in |
| Shank Length | 1 3/8 in, 1.3750" |
| Shank Length (Metric) | 34.92mm |
| Shank Size | 0.3594", 23/64 in Dia x. |
| Shank Size (Metric) | 9.13mm |
| Shank Type | Straight |
| SKU | ZO-G2118056 |
| Style | 1802 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | 23/64" |
| Type | Heavy Duty |
| UPC | 697334233640 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Grainger | 53FP43 | 6.05 | 1 | 97 | 0 | CLE-LINE | | 6.05 @ 6 |
 | Megadepot | C23364 | 6.43 | 1 | 6 | | Cle-Line | | 6.43 @ 6 |
 | heavydutydepot.com | C23364 | 6.43 | 16 | 6 | | Cle-Line | | 6.43 @ 16 |
 | usmegastore.com | C23364 | 7.41 | 1 | 6 | | Cle-Line | | 7.41 @ 6 |
 | sustainablesupply.com | C2765472 | 8.78 | 1 | 6 | | Cle-Line | 0.1 | 8.78 @ 6 |
 | MRO Supply | 6124789 | 8.87 | 4 | 6 | | Cle-Line | | 8.87 @ 6 |
 | Zoro | G2118056 | 12.2 | 1 | 346 | | Cle-Line | 0.1 | 12.2 @ 6 |
 | simsupply.com | ZO-G2118056 | 18.6 | 1 | 6 | | Cle-Line | | 18.6 @ 6 |
 | Global Industrial | WBB2543579 | 43.8 | 1 | 6 | | CLE-LINE | | 43.8 @ 6 |
