- mpnC23377
- brandname: Cle-Line
- manufacturername: Cle-Line

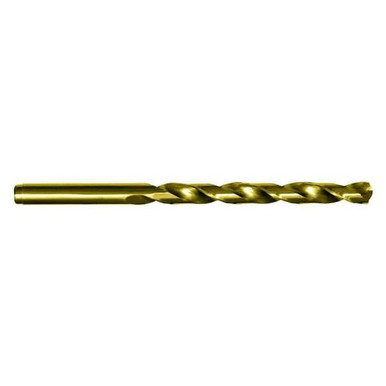

Cle-Line C23377 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 57 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23377
- Model: C23377
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Brand | Cle-Line |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 34 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.0430 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0430" |
| Diameter (Wire/Let) | 57 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #57 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0089 in |
| Drill Size - Decimal In. | 0.043 in |
| Drill Size - Wire | #57 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 0.7500", 3/4 in |
| Flute Length (Metric) | 19.05mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Item? | 53PP89 |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 11/64 in |
| Measurement System | Wire |
| Mfr. Model? | C23377 |
| Mpn | C23377 |
| Number of Flutes | 2 |
| Overall Length | 1.7500", 1 3/4 in, 1-3/. |
| Overall Length (Metric) | 44.45mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S, H; K; N;. |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 1/32 in |
| Shank Diameter | 1/32 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.0430", 0.043 in Dia x. |
| Shank Size (Metric) | 1.09mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G7682090 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1802 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | #57 |
| Type | Heavy Duty |
| UNSPSC | 27112801 |
| UPC | 697334233770 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543532 | 1.4 | 12 | 12 | | Cle-Line | | 1.4 @ 12 |
 | usmegastore.com | C23377 | 1.46 | 1 | 12 | | Cle-Line | | 1.46 @ 12 |
 | Megadepot | C23377 | 1.46 | 1 | 12 | | Cle-Line | | 1.46 @ 12 |
 | heavydutydepot.com | C23377 | 1.46 | 69 | 12 | | Cle-Line | | 1.46 @ 69 |
 | MRO Supply | 6124802 | 1.68 | 30 | 12 | | Cle-Line | | 1.68 @ 30 |
 | Zoro | G7682090 | 1.86 | 1 | 56 | | Cle-Line | 0.01 | 1.86 @ 12 |
| Grainger | 53PP89 | 2.49 | 1 | 12 | | CLE-LINE | | 2.49 @ 12 |
 | simsupply.com | ZO-G7682090 | 8.08 | 1 | 34 | | Cle-Line | | 8.08 @ 12 |
