- mpnC23389
- brandname: CLE-LINE
- manufacturername: CLE-LINE

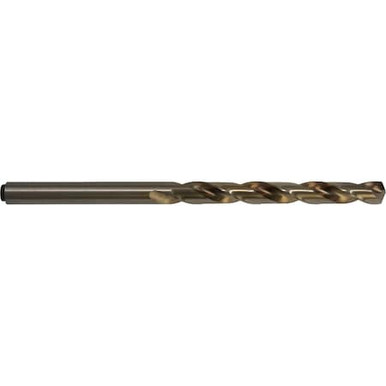

Cle-Line C23389 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 45 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23389
- Model: C23389
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 47 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.0820 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0820" |
| Diameter (Wire/Let) | 45 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #45 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.017 in |
| Drill Size - Decimal In. | 0.082 in |
| Drill Size - Wire | #45 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 1.1250", 1 1/8 in, 1-1/. |
| Flute Length (Metric) | 28.57mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 5/16 in |
| Measurement System | Wire |
| Mpn | C23389 |
| Number of Flutes | 2 |
| Overall Length | 2-1/8 in, 2.1250", 2 1/. |
| Overall Length (Metric) | 53.97mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 5/64 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.082 in Dia x 1 in L, . |
| Shank Size (Metric) | 2.08mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G6375587 |
| Spiral Direction | Right Hand |
| Standards | ASME |
| Style | 1802 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | #45 |
| Type | Heavy Duty |
| UPC | 697334233893 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2543471 | 1.4549 | 12 | 12 | | Cle-Line | | 1.4549 @ 12 |
 | Zoro | G6375587 | 1.54 | 1 | 110 | | Cle-Line | | 1.54 @ 12 |
 | Megadepot | C23389 | 1.56 | 1 | 12 | | Cle-Line | | 1.56 @ 12 |
 | heavydutydepot.com | C23389 | 1.56 | 65 | 12 | | Cle-Line | | 1.56 @ 65 |
 | usmegastore.com | C23389 | 1.57 | 1 | 12 | | Cle-Line | | 1.57 @ 12 |
 | MRO Supply | 6124814 | 1.77 | 29 | 12 | | Cle-Line | | 1.77 @ 29 |
 | sustainablesupply.com | C2765343 | 1.83 | 1 | 12 | | Cle-Line | | 1.83 @ 12 |
| Grainger | 53PP77 | 2.32 | 12 | 12 | 15 | CLE-LINE | | 2.32 @ 12 |
 | simsupply.com | ZO-G6375587 | 8.17 | 1 | 47 | | Cle-Line | | 8.17 @ 12 |
