- mpnC23418
- brandname: Cle-Line
- manufacturername: Cle-Line

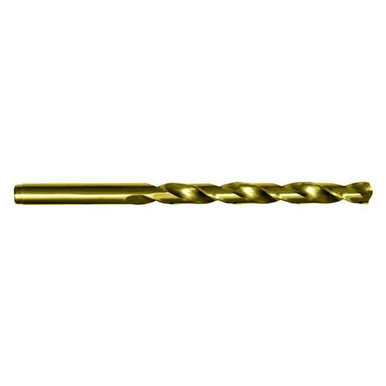

Cle-Line C23418 Cobalt Heavy Duty Jobber Length Drill, Cobalt, Gold Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 16 (Pack of 12)
- Brand: Cle-line
- PartNumber: C23418
- Model: C23418
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
| Key | Value |
|---|
| Application | For Alloy, Stainless St. |
| Brand | Cle-Line |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 397 |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.1770 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1770" |
| Diameter (Wire/Let) | 16 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | #16 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0367 in |
| Drill Size - Decimal In. | 0.177 in |
| Drill Size - Wire | #16 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 2.1875", 2-3/16 in, 2 3. |
| Flute Length (Metric) | 55.56mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 21 Degrees to 34 Degre. |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| List Number | 1802 |
| Material | M42 HSS-Co 8%, HSS-CO, . |
| Material - Machining | Cobalt |
| Material Grade - Machin. | High Performance |
| Maximum Drilling Depth | 45/64 in |
| Measurement System | Wire |
| Mpn | C23418 |
| Number of Flutes | 2 |
| Overall Length | 3 3/8 in, 3-3/8 in, 3.3. |
| Overall Length (Metric) | 85.72mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split Point, Split |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Series | 1802 |
| Shank Configuration | Straight |
| Shank Dia. | 11/64 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 0.1770", 0.177 in Dia x. |
| Shank Size (Metric) | 4.50mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G7681707 |
| Spiral Direction | Right Hand |
| Standards | ASME |
| Style | 1802 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | #16 |
| Type | Heavy Duty |
| UPC | 697334234180 |
