- mpnC23530
- brandname: Cle-Line
- manufacturername: Cle-Line

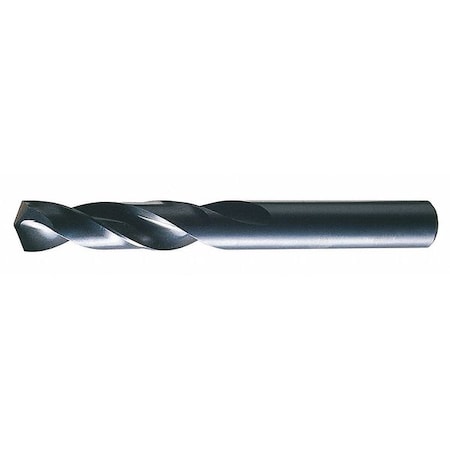

Screw Mach Drill, HSS, Blk Oxide, 30, Min. Qty 12 (24 Pieces)
- Brand: Cle-line
- PartNumber: C23530
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Application | For Alloy, Carbon And T. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 3xD |
| Cutting Direction | Right, Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1285 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD, 3xD |
| Diameter | 0.1285" |
| Diameter (Wire/Let) | 30 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit, Set |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split point |
| Drill Bit Size | #30 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0266 in |
| Drill Size - Decimal In. | 0.1285 in |
| Drill Size - Wire | #30 |
| Drill Size System | Wire |
| Drill Style | Screw Machine Drill |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 15/16 in, 0.9375" |
| Flute Length (Metric) | 23.81mm |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| Item | Screw Machine Drill Bit. |
| List Number | 1896 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 15/16 in |
| Measurement System | Wire, Imperial |
| Number of Flutes | 2 |
| Overall Length | 1 15/16 in, 1-15/16", 1. |
| Overall Length (Metric) | 49.21mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1896 |
| Shank Configuration | Straight |
| Shank Dia. | 0.1285", 1/8 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.1285 in Dia x 1 in L,. |
| Shank Size (Metric) | 3.26mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | #30 |
| Spiral Direction | Right Hand |
| Standards | DIN 340, ASME B94.11M |
| Style | 1896 |
| Surface Condition | Steam Oxide |
| Tool Size | #30 |
| Type | General Purpose Heavy D. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GNFC23530 | 0.7620963 | 1 | 12 | | CLE-LINE | 0.006 | 0.7620963 @ 12 |
 | Global Industrial | WBB2544657 | 0.9515 | 12 | 12 | | Cle-Line | | 0.9515 @ 12 |
 | sustainablesupply.com | C2765290 | 1.01 | 1 | 12 | | Cle-Line | | 1.01 @ 12 |
 | Megadepot | C23530 | 1.11 | 1 | 12 | | Cle-Line | | 1.11 @ 12 |
 | heavydutydepot.com | C23530 | 1.11 | 91 | 12 | | Cle-Line | | 1.11 @ 91 |
 | usmegastore.com | C23530 | 1.13 | 1 | 12 | | Cle-Line | | 1.13 @ 12 |
 | MRO Supply | 6124918 | 1.17 | 43 | 12 | | Cle-Line | | 1.17 @ 43 |
 | Zoro | G5753767 | 15.0 | 1 | 919 | | Cle-Line | 0.08 | 15.0 @ 12 |
