- mpnC23689
- brandname: Cle-Line
- manufacturername: Cle-Line

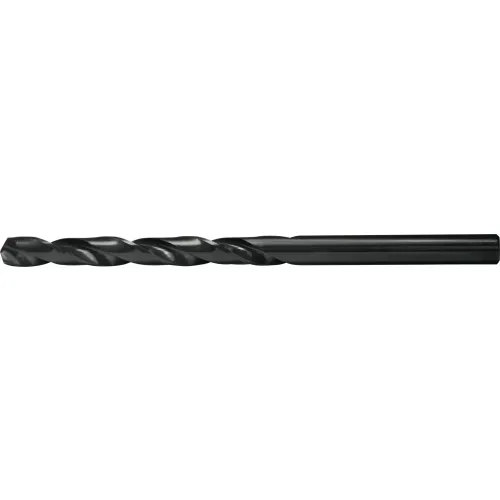

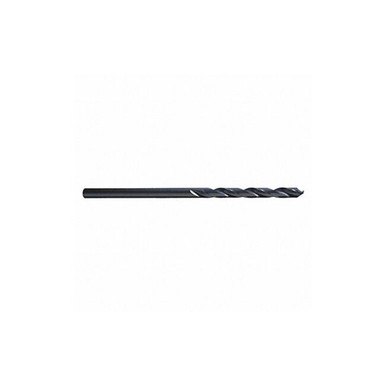

Cle-Line C23689 Aircraft Extension Drill, High Speed Steel, Steam Oxide Finish, Straight Shank, 135-Degree Split Point, Wire Size 29 (Pack of 12)


- Brand: Cle-line
- PartNumber: C23689
- Model: C23689
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries (TEG)
- Label: Greenfield Industries (TEG)
Attributes
Key | Value |
---|
Applicable Materials | Angle Iron, Cast Iron, . |
Brand | Cle-Line |
Color | Black Oxide |
Coolant Fed | Non-Coolant Through |
Current Stock | 397 |
Cutting Depth | 1-3/4 in |
Cutting Direction | Right Hand |
Cutting Edge Material | HSS |
Decimal Equivalent | 0.1360 |
Depth x Dia. Ratio | 4xD |
Depth:Dia. Ratio | 4xD |
Diameter | 0.1360" |
Diameter (Wire/Let) | 29 |
Drill Bit Point Angle | 135 Degrees |
Drill Bit Size | #29 |
Drill Construction | Heavy-Duty |
Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
Drill Length Class | Extra Long |
Drill Point Length | 0.0282 in |
Drill Size - Decimal In. | 0.136 in |
Drill Size - Wire | #29 |
Drill Size System | Wire |
Drill Style | Aircraft Extension Drill |
Finish | Black Oxide/Steam Oxide |
Flute Length | 1.7500", 1 3/4 in, 1-3/. |
Flute Length (Metric) | 44.45mm |
Flute Type | Spiral |
Hand of Cut | Right |
Hand of Spiral | Right |
International Shipping | No |
Item | Extra Long Drill Bit |
Lead Time | Expected to ship in 1-2. |
Material | HSS, High Speed Steel |
Material - Machining | High Speed Steel |
Maximum Drilling Depth | 17/32 in |
Measurement System | Wire, Imperial |
Mpn | C23689 |
Number of Flutes | 2 |
Overall Length | 6.0000", 6 in |
Overall Length (Metric) | 152.40mm |
Point Angle | 135 deg, 135? |
Point Style | Split |
Point Type | Split |
Primary Material Applic. | Steel |
Primary Material Applic. | P |
Series | 1803 |
Shank Configuration | Straight |
Shank Dia. | 1/8 in |
Shank Length | 4 1/4 in, 4.2500" |
Shank Length (Metric) | 107.95mm |
Shank Size | 0.1360", 0.136 in |
Shank Size (Metric) | 3.45mm |
Shank Type | Straight |
Shank Type - Machining | Straight |
SKU | ZO-G4949397 |
Standards | ASME B94.11M |
Style | 1803 |
SubCategory | Machining |
Surface Condition | Steam Oxide |
Tool Size | #29 |
Type | Type B Extended Length |
UPC | 697334236894 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Global Industrial | WBB2543414 | 2.86 | 12 | 12 | | Cle-Line | | 2.86 @ 12 |
  | usmegastore.com | C23689 | 3.21 | 1 | 12 | | Cle-Line | | 3.21 @ 12 |
  | Megadepot | C23689 | 3.25 | 1 | 12 | | Cle-Line | | 3.25 @ 12 |
  | heavydutydepot.com | C23689 | 3.25 | 31 | 12 | | Cle-Line | | 3.25 @ 31 |
  | MRO Supply | 6125005 | 3.33 | 15 | 12 | | Cle-Line | | 3.33 @ 15 |
  | Zoro | G4949397 | 3.55 | 1 | 693 | | Cle-Line | 0.29 | 3.55 @ 12 |
  | simsupply.com | ZO-G4949397 | 10.1 | 1 | 397 | | Cle-Line | | 10.1 @ 12 |
| Amazon | B00J9FKLU6 | 27.87 | 1 | 12 | | Cle-Line | | 27.87 @ 12 |
| AmazonSC | B00J9FKLU6 | 38.94 | 1 | 12 | | Cle-line | | 38.94 @ 12 |
