CLEVELAND C14572

mpnC14572
brandname: CLEVELAND
manufacturername: CLEVELAND

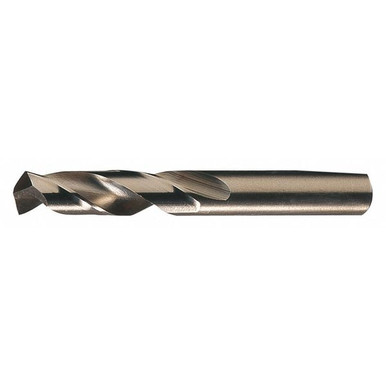

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, 1/8"(Pack of 10)

Cleveland 2133 Style Cobalt Steel Short Length Drill Bit, Bronze Oxide, Round Shank, 135 Degree Split Point, 1/8"(Pack of 10)

zoom

Brand: CLEVELAND
PartNumber: C14572
Size: 1/8 in
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Carbon Steel, Cast Iron.
Bit Dia.	1/8"
Brand	Cleveland
Construction	Heavy-Duty
Current Stock	42
Cutting Depth	7/8 in
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.1250, 0.1250" / 3.17mm
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter Fractional	1/8"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Straw/Bronze
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	1/8 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0005 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.0259 in
Drill Size - Decimal In.	0.125 in
Drill Size - Fraction	1/8 in
Drilling Length	7/8"
Finish	Straw/Gold Oxide
Flute Length	7/8 in
Flute Type	Right Spiral, Spiral
Hand of Spiral Cut	RHS / RHC
International Shipping	No
Item	Screw Machine Drill Bit
Length of Flute	0.8750" / 22.22mm
List Style	2133
Material	M42 HSS-Co 8, HSS-CO 8%.
Maximum Drilling Depth	7/8 in
Mpn	C14572
Number of Flutes	2
Overall Length	1.8750" / 47.63mm, 1 7/.
Point	135? Split
Point Angle	135 deg
Point Type	Split
Series	2133
Shank	Straight
Shank Dia.	1/8 in
Shank Length	1 in
Shank Size	1/8 in Dia x 1 in L, 1/.
Shank Type	Straight
Sizes Included	1/8"
SKU	ZO-G3001691
Style	2133
SubCategory	Machining
Surface Condition	Straw, Straw / Gold Oxi.
Tool Size	1/8"
Type	General Purpose Heavy D.
UPC	697334145721
