Illinois Capacitor 228TTA035M

B00OVESS3C

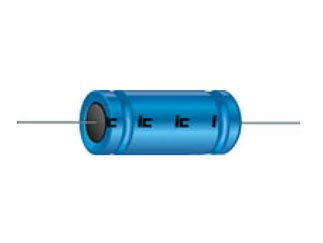

ILLINOIS CAPACITOR 228TTA035M TTA Series 2200 uF 35 V ?20% Through Hole Axial Aluminum Electrolytic Capacitor - 10 Item(s)

ILLINOIS CAPACITOR 228TTA035M TTA Series 2200 uF 35 V ?20% Through Hole Axial Aluminum Electrolytic Capacitor - 10 Item(s)zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Capacitance2200 ?F, 2200 uF
Capacitance Range1000 to 9999 uF
Case SizeDia. 0.63 x L 1.22 in ;.
ConfigurationAxial ; Can
Diameter16 mm
Dissipation Factor0.16 at 120 Hz
Element MaterialAluminum Electrolytic
ESR121 mOhms
ESR (Equivalent Series .121mOhm @ 120Hz
Height - Seated (Max)-
Lead Diameter0.8 ; 0.05 mm
Lead Length35 mm
Lead Spacing-
Leakage Current2310 ?A after 1 Minute
Length1.18 in
Length Tolerance+1.0mm
Lifetime @ Temp.2000 Hrs @ 85?C
Maximum Operating Tempe.85 C
MfrIllinois Capacitor
Minimum Operating Tempe.-40 C
Mounting TypeThrough Hole, PCB Mount
Operating Temperature-40?C ~ 85?C
Package / CaseAxial, Can
Part StatusActive
PolarizationPolar
Ratings-
Ripple Current1580 mA at 120 Hz, 85 ?C
Ripple Current @ High F.2.0224 A @ 50 kHz
Ripple Current @ Low Fr.1.58 A @ 120 Hz
SeriesTTA Series
Size / Dimension0.630" Dia x 1.220" L (.
Surface Mount Land Size-
Surge Voltage44 VDC
TerminationThrough Hole
Tolerance?20%, 20% %
Voltage - Rated35 V
Voltage Rating35 VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com701118953.93185Illinois Capacitor - A Brand of Cornell Dubilier3.93 @ 1
thumbzoomNewark84M47144.561154ILLINOIS CAPACITOR4.56 @ 1
AmazonSCB00OVESS3C40.251In StockIllinois Capacitor40.25 @ 1
