Leeson 108050

B00BC8JD1Q

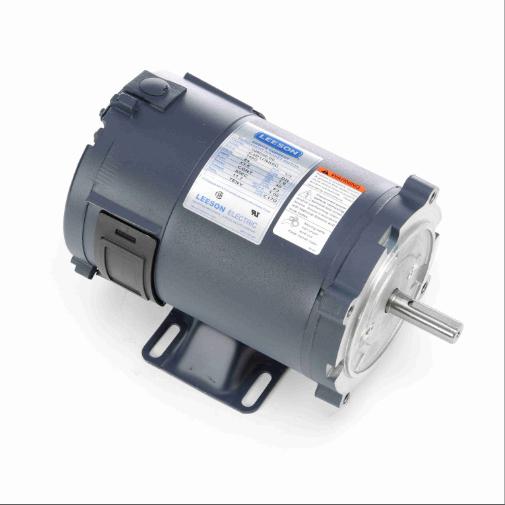

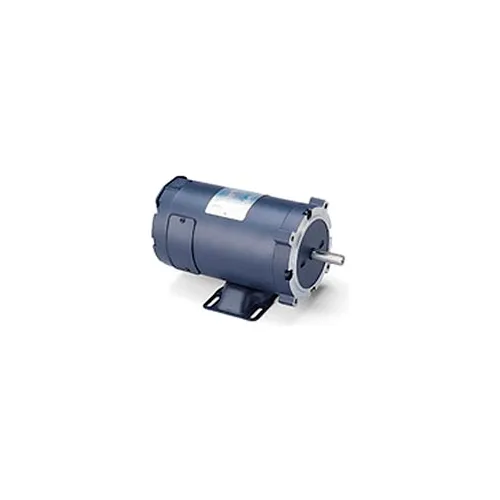

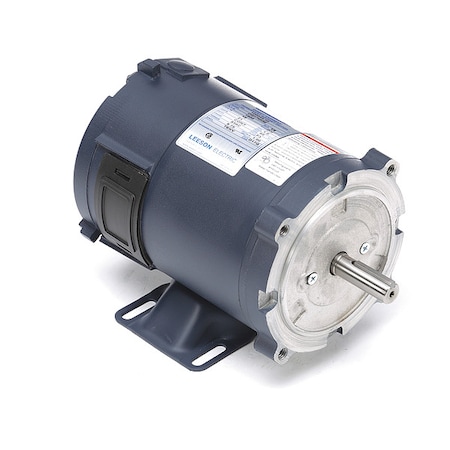

Leeson 108050.00 1/3HP 1800RPM RS56C TENV 24V CONT 40C 1 0SF

Leeson 108050.00 1/3HP 1800RPM RS56C TENV 24V CONT 40C 1 0SFzoom

Attributes

Key Value
Alternate Mfr Part Numb.C4D17NK9D
Amperage Rating13.5 A
Amps13.5
Armature Current13.5 A
Armature Voltage24 V
Base RPM1,800 RPM
Bearing TypeSealed
BearingsBall
Body Dia.5 5/8 in
Brush TypeCarbon
CategoryElectric Motor
ConstructionRolled Steel
Current Rating13.5 A
Description:1/3HP.1800RPM.S56C.TENV.
Dimensions10.77 in L x 6.5 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency70.3%, 70.3 %, 70.3
EnclosureTENV
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight22.00
Family SeriesLeeson Motors
FeaturesRemovable Base, Rugged .
FL Amps13.5
FL Efficiency70.3
FrameS56C, 56C
Frame RemarksFOOTED
Full Load Amps13.5 A
Full Load Torque11.7 in-lb
Gross Weight0 lbs
Hertz60
Horsepower1/3 hp
Horsepower Rating0.33 HP
HP1/3, 0.33
Insulation ClassClass F, F
Insulation TypeClass F
ItemDC Permanent Magnet Mot.
Item ConditionFACTORY NEW
Item Number108050.00
KW0.25
Length Less Shaft8 13/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number108050.00
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:108050.00
Motor ApplicationGeneral Application
Motor DesignPermanent Magnet DC
Motor Enclosure DesignTotally Enclosed Nonven.
Motor Mounting TypeFace/Base
Motor Shell Length4.47"
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
MountingFoot Mount, C-Face/Rigi.
Mounting TypeRigid C base, Face
Nameplate RPM1,800
Net Weight22 lbs
Nominal Voltage24 V
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length10.77", 10 3/4 in
Part Number108050.00
PhaseC, DC
Power Rating0.33 HP
Product TypeDC, General Purpose
RotationReversible
RPM1700 - 1800, 1800
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1, 1.0
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625
Shaft Length2.06, 1 7/8 in, 2.06"
Shaft Size5/8 in
Ship Weight25 lbs.
Special FeaturesService Factor - 1
Speed1800 RPM
Speed (RPM)1800
StandardsUL Recognized
Stud Size3/8"-16
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
Torque Rating128 in-lb
TypeLow Voltage PMDC Design
UPC Code691720006733
UPC:691720006733
Voltage24, 24V DC, 24V
Voltage Rating24 VDC
Volts24, 24VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com108050360.01In StockLEESON360.0 @ 1
AmazonTPB00EPKRLX0383.441In Stock2Leeson383.44 @ 1
thumbzoomMRO Supply2525298497.511In StockLeeson497.51 @ 1
thumbzoomZoroG4608810520.991In StockLeeson520.99 @ 1
thumbzoomemotorpro.com108050.00559.881In StockLeeson25.0559.88 @ 1
thumbzoomDealers Electric108050.00655.781In StockLeeson25.0655.78 @ 1
thumbzoomGlobal IndustrialWBB236768675.01In Stock17Leeson675.0 @ 1
us.rs-online.com72239070717.421In StockLeeson717.42 @ 1
thumbzoommotorsandcontrol.comLE-108050.00720.321In StockLeeson Electric22.0720.32 @ 1
thumbzoomGalco108050.00-LEES725.511In StockLeeson22.0725.51 @ 1
kscdirect.comLEE 108050.00752.791In StockLEESON ELECTRIC CORPORATION752.79 @ 1
thumbzoomWalker Industrial108050-00816.371In Stock10Leeson816.37 @ 1
thumbzoomRaptor SuppliesAJ2PVZ843.1076161In StockLEESON843.107616 @ 1
cbtcompany.com108050.00892.421In StockLeeson Electric892.42 @ 1
thumbzoompumpproducts.com108050.00977.151In StockLeeson977.15 @ 1
