Martin 4 B 60 TB

B004BKIP8E

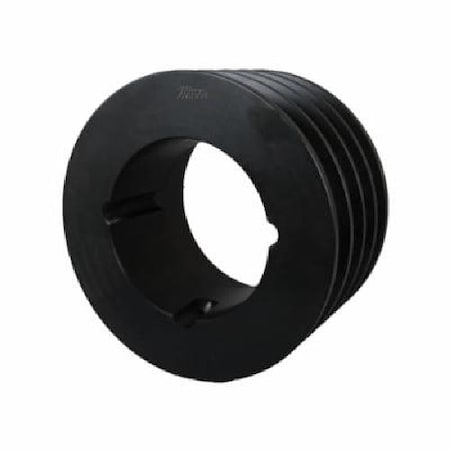

Martin 4 B 60 TB Conventional Taper Bushed Sheave, A/B Belt Section, 4 Grooves, 2517 Bushing required, Class 30 Gray Cast Iron, 6.35" OD, 3907 max rpm, A - 5.6/B - 6" Pitch Diameter

Martin 4 B 60 TB Conventional Taper Bushed Sheave, A/B Belt Section, 4 Grooves, 2517 Bushing required, Class 30 Gray Cast Iron, 6.35" OD, 3907 max rpm, A - 5.6/B - 6" Pitch Diameterzoom

Attributes

Key Value
Belt Cross SectionA/B
Bore TypeBushed
Bushed For2517
Bushing Maximum Bore Si.2.5 "
Bushing MountStandard
Bushing StyleTB
Length Through Bore1.75 "
MaterialSteel
Number of Grooves4
Outer Diameter6.35 in
Outside Dia6.350"
Pitch Diameter6 "
Sheave ConstructionSolid
Sheave Face Width3.25 "
Sheave TypeConventional
UPC Code697950155524
Weight12.72 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com4 B 60 TB122.92In StockMartin1.0122.9 @ 2
us.rs-online.com72479915151.351In StockMartin Sprocket & Gear12.72151.35 @ 1
thumbzoomMRO Supply254941157.391In StockMartin Sprocket157.39 @ 1
factorysupplyoutlet.comAP24MC162.921In Stock25MARTIN162.92 @ 1
thumbzoomPurvis4 B 60 TB194.041In StockMartin194.04 @ 1
thumbzoomZoroG3340457196.51In Stock14Martin Sprocket & Gear196.5 @ 1
